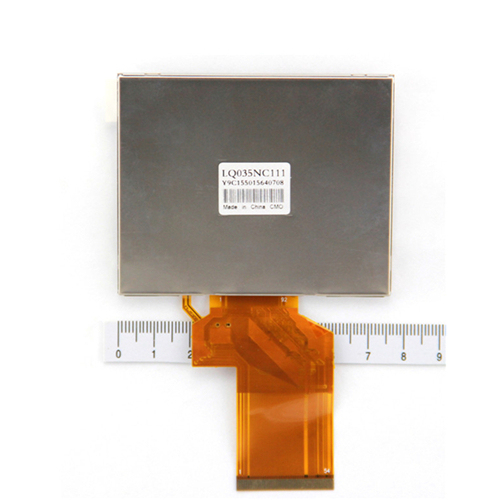

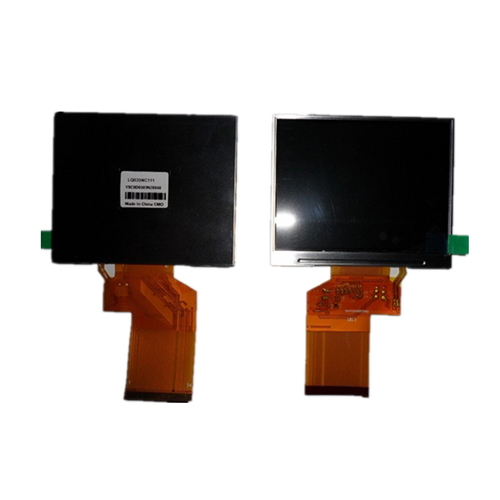

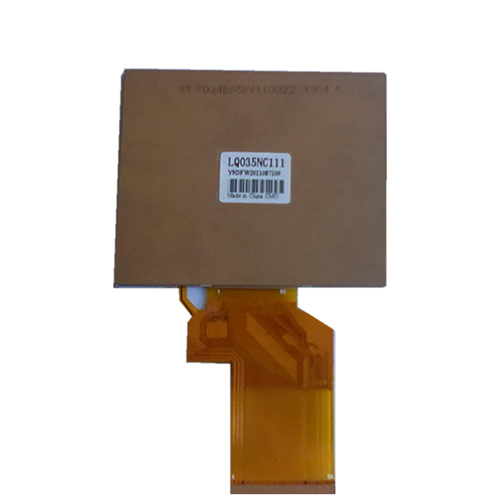

LQ035NC111 innolux 3.5 inch screen TFT-LCD display module

Item No.: LQ035NC111
LQ035NC111 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description
LQ035NC111 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.

Panel Brand ChiHsin
Panel Model LQ035NC111
Compatible Model 1 Compatible
Panel Size 3.5 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 320(RGB)×240 , QVGA
Pixel Format RGB Vertical Stripe
Display Area 70.08(W)×52.56(H) mm
Bezel Opening 73.03(W)×55.50(H) mm
Outline Size 76.9(W)×63.9(H) ×3.46(D) mm
Surface -
Brightness 300 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 60/60/50/55 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 10/15 (Typ.)(Tr/Td)
Display Colors 16.7M   60% (CIE1931)
Lamp Type 6S1P WLED , 10K hours , Without Driver
Frequency
Touch Screen Without
Panel Weight 30.0g (Typ.)
Application Digital Still Camera , Digital Video Camera , Portable Navigation
Signal Interface Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins , FPC
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
