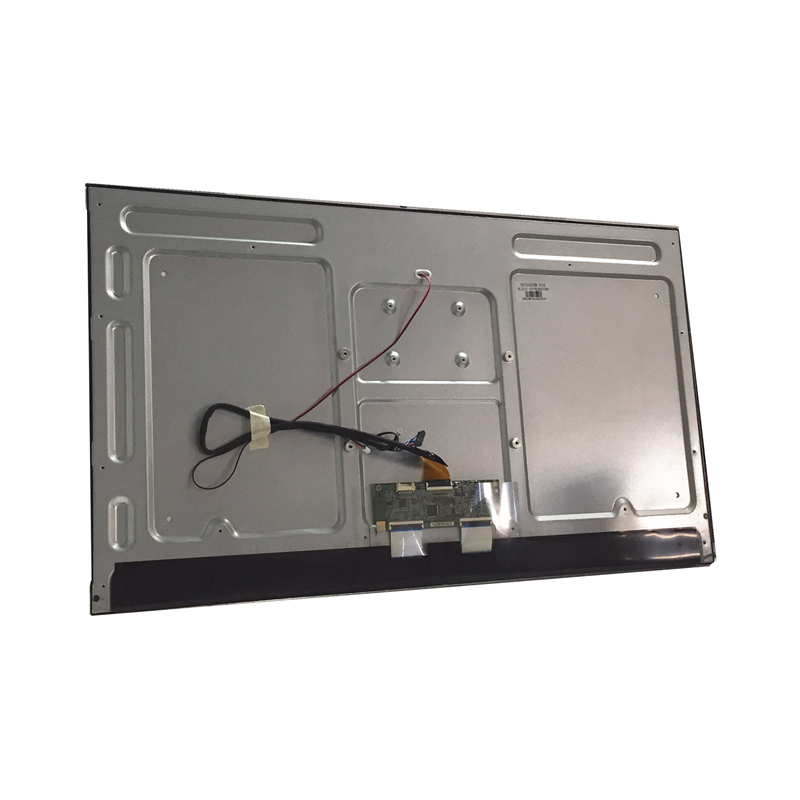

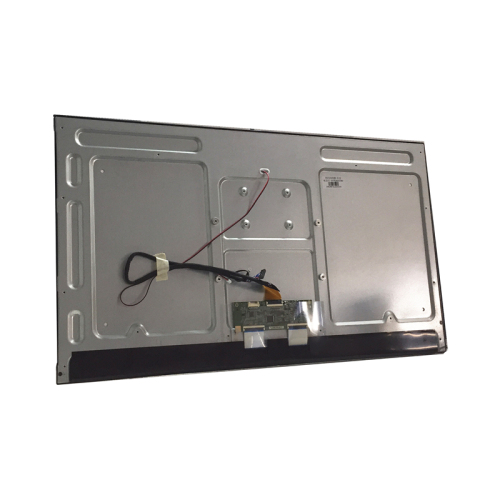

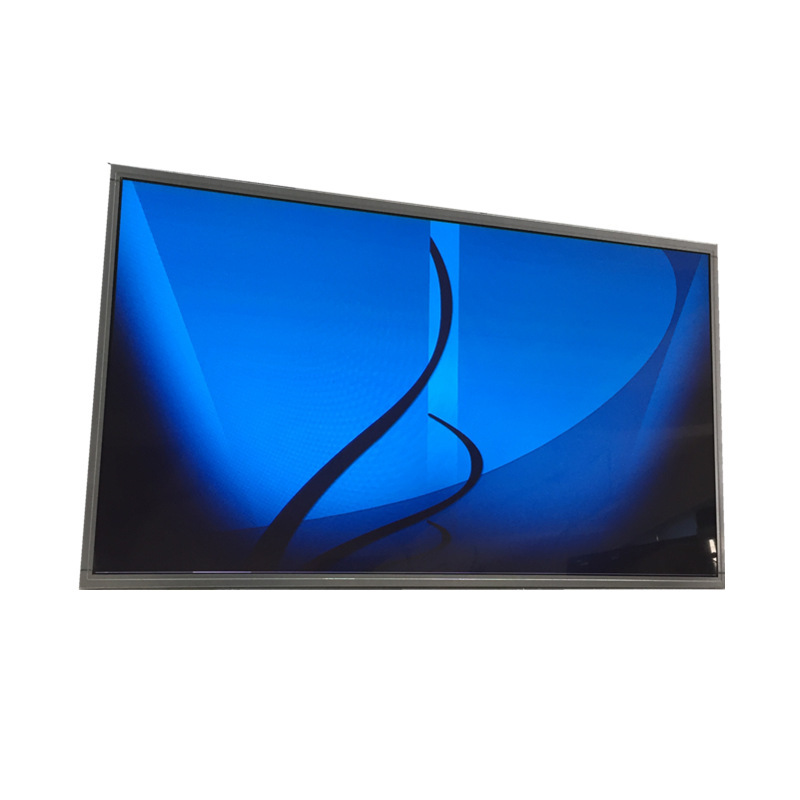

Name: HV320FHB-N10 BOE 32 inch lcd display
Brand: XIANHENG | China LCD display supplier | SHENZHEN LCD module manufacturer
SKU: HV320FHB-N10
Availability: InStock
Rating: 5 (2 reviews)

Home > BOE > BOE 32.0 inch LCD module

Description Review

Description

HV320FHB-N10 BOE 32 inch lcd display advertising player with 89/89/89/89 full viewing angle 250 nits use for industrial/commercial.

HV320FHB-N00 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 31.5 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this open cell can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features

LVDS Interface with 2 pixe/clock

High luminance and contrast ratio,low reflection and wide viewing angle

High-speed response

Low color shift image quality

8-bit color depth,display 16.7M colors

DE(Data Enable) only mode

ADS technology is applied for high display quality

ROHS compliance

Application

Home Alone Multimedia TFT-LCD TV

Display Terminals for Control System

High Definition TV(FHD TV)

AV application Products

Brand	BOE
Model P/N	HV320FHB-N10
Diagonal Size	32.0"
Panel Type	a-Si TFT-LCD, FOB
Resolution	1920(RGB)×1080, FHD 69PPI
Pixel Format	RGB Vertical Stripe
Active Area	698.4(W)×392.85(H) mm
Bezel Opening	-
Outline(mm)	708.4 × 405.4 × 1.36 (H×V×D)
Treatment	Antiglare (Haze 1%)
Luminance	250 cd/m²
Contrast Ratio	1200 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Response	8 (Typ.)(G to G) ms
Good View at	Symmetry
Work Mode	ADS, Normally Black, Transmissive
Glass Thickness	0.50+0.50 mm
Color Depth	16.7M 100% sRGB
Backlight	WLED
Used for	TV Sets
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Built-in COF 6 source chips
Signal Type	LVDS (2 ch, 8-bit) , 51 pins Connector
Voltage Supply	12.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Review

Vadim

Jun 06, 2018

hi,i want to buy this item...can i buy one piece...and i want to know howmuch is it and how can you deliver to me?
