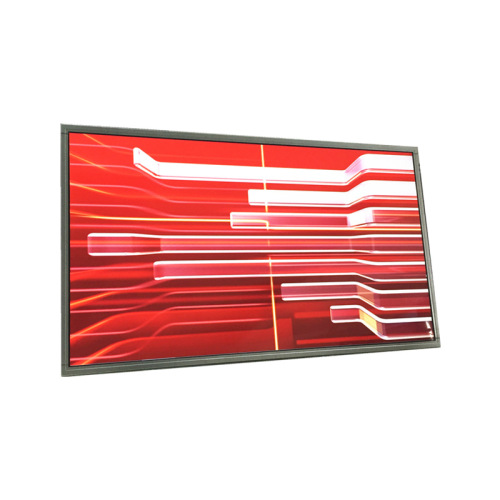

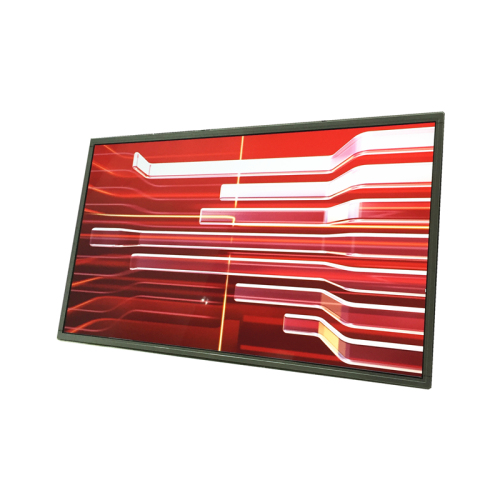

HV320FHB-N00 BOE 32 inch lcd display

Item No.: HV320FHB-N00
HV320FHB-N00 BOE 32 inch lcd display advertising player with 89/89/89/89 full viewing angle 250 nits use for industrial or commercial.
Description Features Review
Description

High resolution 32" HV320FHB-N00 guangdong boe led lcd display panels for tv screen

HV320FHB-N00 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 32 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array).
Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this open cell can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.


Features

super wide viewing angle

super high contrast ratio

super fast response time

high color saturation

DE(Data Enable) only mode

LVDS Interface

ROHS compliance



Application

Home Alone Multimedia TFT-LCD TV

Display Terminals for Control System

High Definition TV(FHD TV)

AV application Products



General Specification

Brand:     BOE

Diagonal Size:     32 inch

Model:     HV320FHB-N00

Type:     a-Si TFT-LCD

Pixel Format:     1920(RGB)×1080   [FHD]

Active Area:     698.4(H)×392.85(V) mm

Bezel Area:     -

Configuration:     RGB Vertical Stripe

Outline Dim.:     708.4(H)×405.4(V) ×1.36(D) mm

Treatment:     Antiglare (Haze 1%)

Contrast Ratio:     1200:1 (Typ.) (TM)

Response Time:     8 (Typ.)(G to G)

Operating Mode:     ADS, Normally Black, Transmissive

Transmittance:     5.0% (Typ.)(with Polarizer)

Light Source:     No B/L

Designed For:     TV Sets

Luminance:     250 cd/m²

View Direction:     Symmetry

Viewing Angle:     89/89/89/89 (Typ.)(CR≥10)

Plate Thickness:     0.50+0.50 mm

Support Color:     16.7M

Frame Rate:     60Hz

Touch Panel:     Without

Interface Type:     51 pins   LVDS (2 ch, 8-bit) , Connector

Power Supply:     12.0V (Typ.)

Environment:     Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C



Features

Features:

super wide viewing angle
super high contrast ratio
super fast response time
high color saturation
DE(Data Enable) only mode
LVDS Interface
ROHS compliance
