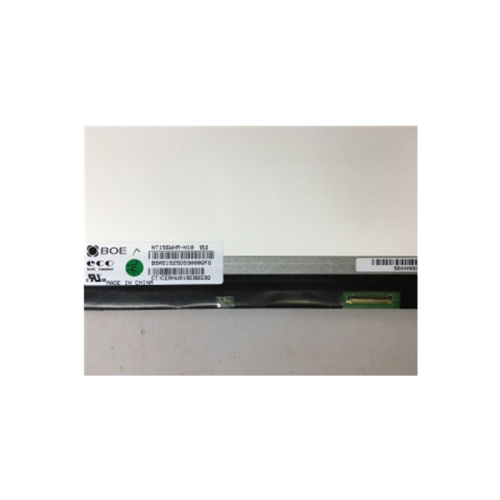

NT156WHM-N10 BOE 15.6 inch lcd display

Item No.: NT156WHM-N10
NT156WHM-N10 BOE 15.6 inch tft lcd display with high resolution 1366x768 40 pins LVDS interface for laptop monitor.
Description Review
Description

NT156WHM-N10 BOE 15.6 inch tft lcd display with high resolution 1366x768 40 pins LVDS interface for laptop monitor.

NT156WHM-N10 is a color active matrix TFT LCD module using amorphous silicon TFT's(Thin Film Transistors) as an active switching devices. This module has a 15.6 inch diagonally measured active area with HD resolutions (1366 horizontal by 768 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical Stripe and this module can display 262,144 colors. The TFT-LCD panel used for this module is a low reflection and higher color type. Therefore, this module is suitable for Notebook PC. The LED Driver for back-light driving is built in this model. All input signals are LVDS interface compatible.

Features

1 Channel LVDS Interface with 1 pixel / clock

Thin and light weight

6-bit color depth, display 262K colors

Single LED Lighting Bar. (Down side/Horizontal Direction)

Data enable signal mode

Up/Down Mounting Frame

Green Product (RoHS & Halogen free product)

On board LED Driving circuit

Low driving voltage and low power consumption

On board EDID chip

Application

Notebook PC (Wide type)

General Specification

The followings are general specifications at the model NT156WHM-N10.

Brand    BOE

Diagonal Size    15.6 inch

Pixel Format    1366(RGB)×768   [WXGA]

Active Area    344.232(H)×193.536(V) mm

Bezel Area    -

Luminance    220 cd/m² (Typ.)

View Direction    -

Viewing Angle    45/45/20/40 (Typ.)(CR≥10) Left / Right / Up / Down

Support Color    262K   45% (CIE1931)

Form Style    Flat (PCBA Flat, Depth 3.4~4.0mm)

Frame Rate    60Hz

Model    NT156WHM-N10

Type    a-Si TFT-LCD , LCM

Configuration    RGB Vertical Stripe

Outline Dim.    359.5(H)×223.8(V) ×3.8(D) mm

Treatment    Glare (Haze 0%)

Contrast Ratio    500:1 (Typ.) (TM)

Response Time    12 (Typ.)(Tr+Td)

Operating Mode    TN, Normally White, Transmissive

Light Source    WLED  [9S4P] , 15K hours , Embedded (LED Driver)

Designed For    Laptop

Touch Panel    Without

Interface Type    40 pins   LVDS (1 ch, 6-bit) , Connector

Power Supply    3.3V (Typ.)

Environment    Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
