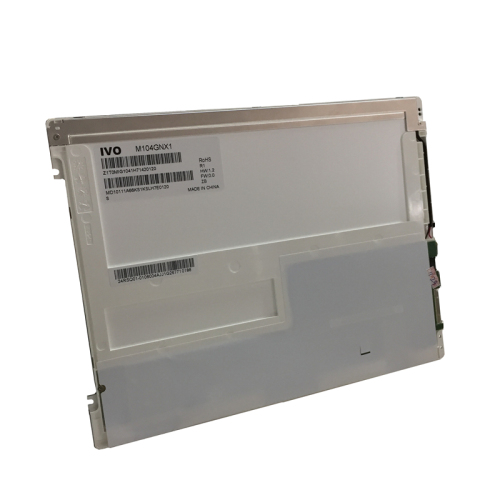

M104GNX1 R1 IVO 10.1 inch lcd display panel

Item No.: M104GNX1 R1
M104GNX1 R1 is a Color Active Matrix TFT lcd module, which uses amorphous Silicon TFT as a switching device. It is composed of a TFT LCD panel, a timing controller, voltage reference, common voltage, column driver, and row driver circuit.
Description Review
Description
Factory Hot Sales m104gnx1 lcd brightness 350 cd advertising display 10 made in china

M104GNX1 R1 is a Color Active Matrix TFT lcd module, which uses amorphous Silicon TFT as a switching device. It is composed of a TFT LCD panel, a timing controller, voltage reference, common voltage, column driver, and row driver circuit. This TFT LCD has a 10.1-inch (diagonally measured) active display area with XGA resolution (1,024 horizontal by 768 vertical pixel array).

Features
* 10.1” TFT LCD Panel
* LED Light-bar Backlight System
* Supports WSVGA (H:1,024 lines, V:768 pixels) Resolution
* Compatible with RoHS Standard

General Specification
Brand:     IVO
Model:     M104GNX1 R1
Diagonal Size:     10.4 inch
Type:     a-Si TFT-LCD, LCM
Pixel Format:     1024(RGB)×768   [XGA]
Configuration:     RGB Vertical Stripe
Active Area:     211.2(H)×158.4(V) mm
Outline Dim.:     236(H)×176.9(V) ×6.3(D) mm
Bezel Area:     214.8(H)×162.0(V) mm
Treatment:     Antiglare, Hard coating (3H)
Luminance:     350 cd/m² (Typ.)
Contrast Ratio:     900:1 (Typ.) (TM)
View Direction:     -
Response Time:     16 (Typ.)(Tr+Td)
Viewing Angle:     75/75/75/75 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode:     TN, Normally White, Transmissive
Support Color:     262K/16.7M   50% (CIE1931)
Light Source:     WLED , 30K hours , With LED Driver
Weight:     290g (Max.)
Designed For:     Industrial Application
Frame Rate:     60Hz
Touch Panel:     Without
Interface Type:     20 pins   LVDS (1 ch, 6/8-bit) , Connector
Power Supply:     3.3V (Typ.)
Operating Temperature:     -20 ~ 70 °C
Storage Temperature:     -30 ~ 80 °C
