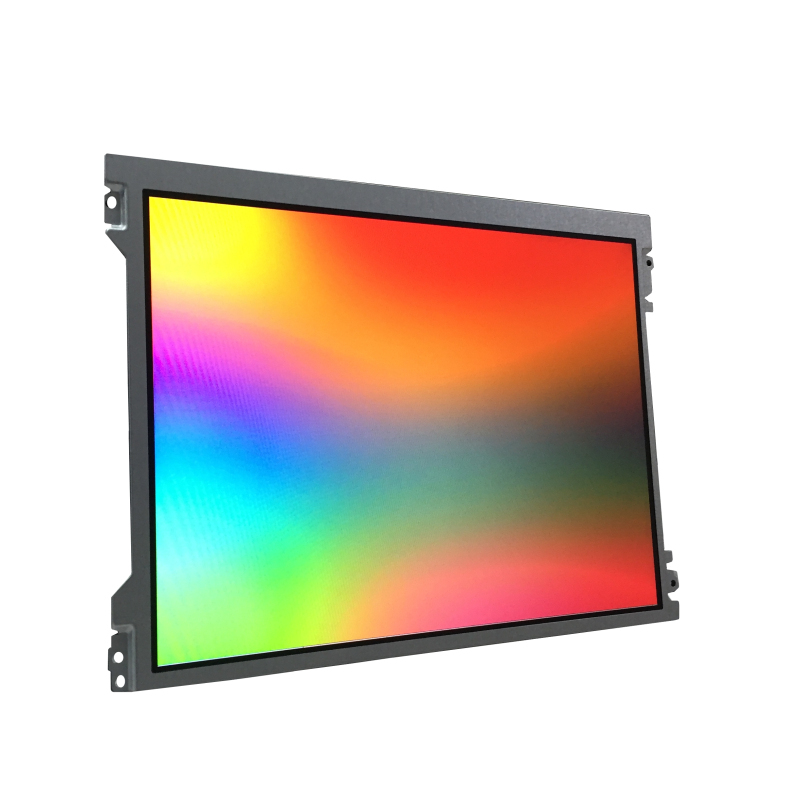

M121GNX2 R1 IVO 12.1 inch lcd display panel

Item No.: M121GNX2 R1
The M121GNX2 R1 is a Color Active Matrix TFT lcd module, which uses amorphous Silicon TFT as a switching device.
Description
The M121GNX2 R1 is a Color Active Matrix TFT lcd module, which uses amorphous Silicon TFT as a switching device. It is composed of a TFT LCD panel, a timing controller, voltage reference, common voltage, column driver, and row driver circuit. This TFT LCD has a 12.1-inch (diagonally measured) active display area with WSVGA resolution (1,024 horizontal by 768 vertical pixel array).

Features
* 12.1” TFT LCD Panel
* LED Backlight System
* Supported XGA 1024x768 pixels resolution
* Compatible with RoHS standard

General Specification
Brand:     IVO
Model:     M121GNX2 R1
Diagonal Size:     12.1 inch
Type:     a-Si TFT-LCD, LCM
Pixel Format:     1024(RGB)×768 [XGA]
Configuration:     RGB Vertical Stripe
Active Area:     245.76(H)×184.32(V) mm
Outline Dim.:     279(H)×209(V) ×9(D) mm
Bezel Area:     250.8(H)×189.4(V) mm
Treatment:     Antiglare
Luminance:     350 cd/m² (Typ.)
Contrast Ratio:     800:1 (Typ.) (TM)
View Direction:     -
Response Time:     16 (Typ.)(Tr+Td)
Viewing Angle:     80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode:     TN, Normally White, Transmissive
Support Color:     262K/16.7M
Light Source:     WLED  [4 strings] , 30K hours , With LED Driver
Designed For:     Industrial Application
Frame Rate:     60Hz
Touch Panel:     Without
Interface Type:     20 pins   LVDS (1 ch, 6/8-bit) , Connector
Power Supply:     3.3V (Typ.)
Environment:     Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
