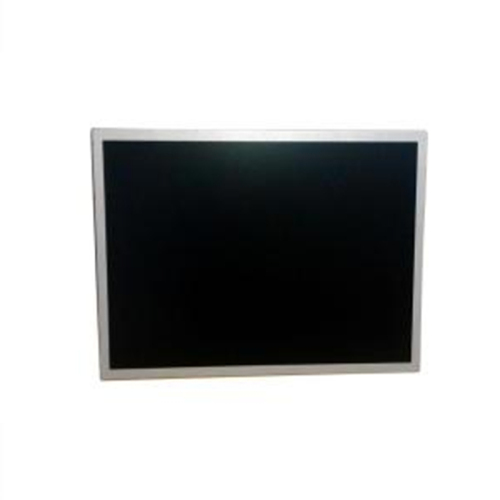

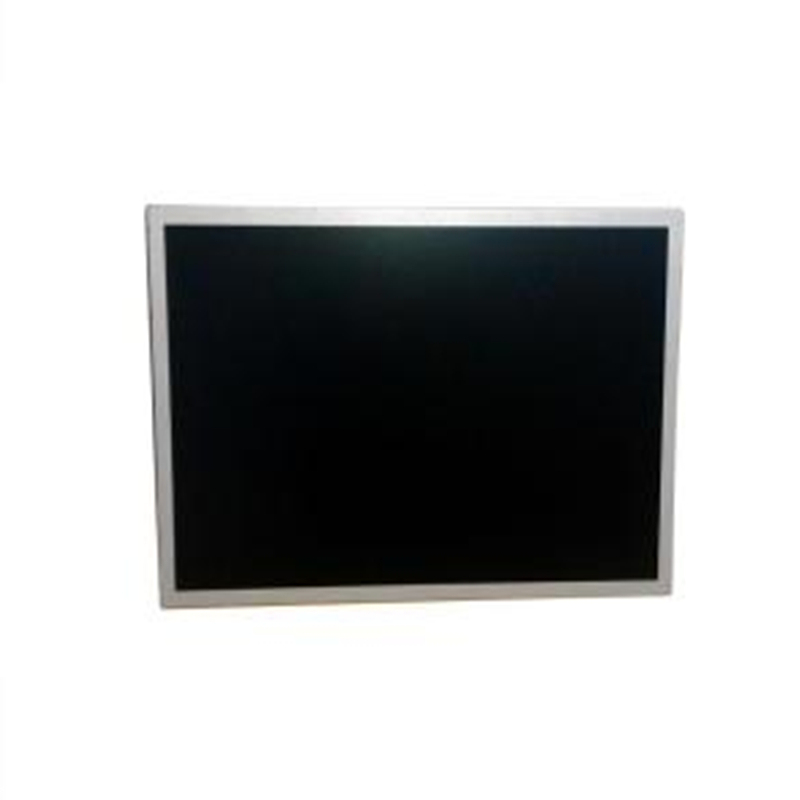

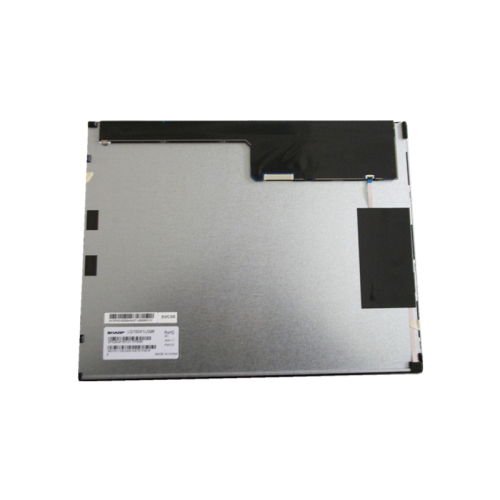

LQ150X1LG96 Sharp 15 inch lcd display
LQ150X1LG96 Sharp 15 inch lcd display LQ150X1LG96 Sharp 15 inch lcd display LQ150X1LG96 Sharp 15 inch lcd display LQ150X1LG96 Sharp 15 inch lcd display LQ150X1LG96 Sharp 15 inch lcd display LQ150X1LG96 Sharp 15 inch lcd display LQ150X1LG96 Sharp 15 inch lcd display LQ150X1LG96 Sharp 15 inch lcd display LQ150X1LG96 Sharp 15 inch lcd display LQ150X1LG96 Sharp 15 inch lcd display LQ150X1LG96 Sharp 15 inch lcd display LQ150X1LG96 Sharp 15 inch lcd display
  • LQ150X1LG96 Sharp 15 inch lcd display
  • LQ150X1LG96 Sharp 15 inch lcd display
  • LQ150X1LG96 Sharp 15 inch lcd display
  • LQ150X1LG96 Sharp 15 inch lcd display

LQ150X1LG96 Sharp 15 inch lcd display

Item No.: LQ150X1LG96
LQ150X1LG96 SHARP 15.0 inch industrial TN TFT-LCD with high luminance 1050 cd/m2 and wide vision for game machine.
Request Quote PDF Format
Description Review
Description

LQ150X1LG96 SHARP 15.0 inch industrial TN TFT-LCD with high luminance 1050 cd/m2 and wide vision for game machine.

General Specification
Brand     SHARP
Model     LQ150X1LG96
Diagonal Size     15.0 inch
Type     a-Si TFT-LCD , LCM
Pixel Format     1024(RGB)×768   [XGA]
Configuration     RGB Vertical Stripe
Active Area     304.128(H)×228.096(V) mm
Outline Dim.     326.5(H)×253.5(V) ×10.1(D) mm
Bezel Area     307.2(H)×231.1(V) mm
Treatment     Antiglare, Hard coating (3H)
Luminance     1050 cd/m² (Typ.)
Contrast Ratio     800:1 (Typ.) (TM)
View Direction     6 o'clock
Response Time     30 (Typ.)(Tr+Td)
Viewing Angle     80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode    TN, Normally White, Transmissive
Support Color     16.2M   70% (CIE1931)
Light Source     WLED , 30K hours , Embedded (LED Driver)
Weight     950g (Max.)
Designed For     Game Machine  Industrial Application
Frame Rate    60Hz
Touch Panel     Without
Interface Type     20 pins   LVDS (1 ch, 8-bit) , Connector
Power Supply     3.3V (Typ.)
Environment     Operating Temperature: 0 ~ 65 °C ; Storage Temperature: -30 ~ 70 °C
