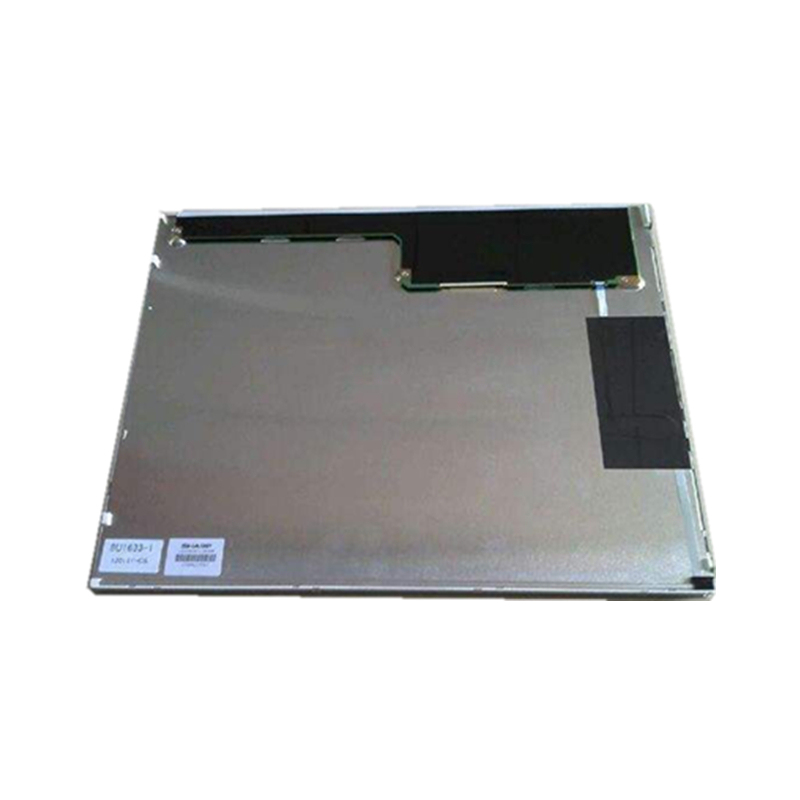

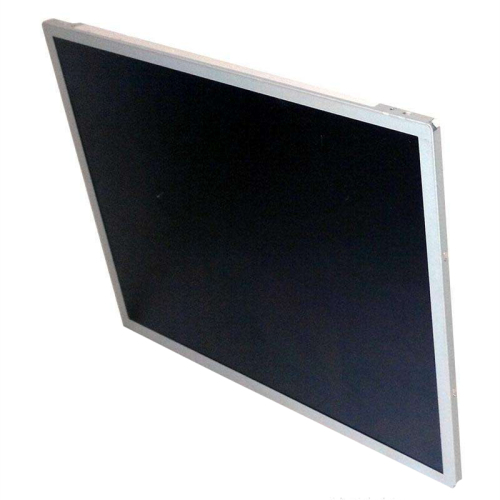

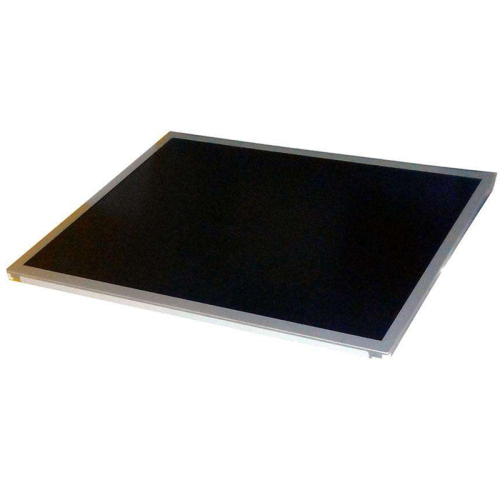

LQ150X1LW94 Sharp 15 inch lcd display

Item No.: LQ150X1LW94
LQ150X1LW94  Sharp 15.0 inch lcd wide viewing angle 85/85/85/85 and hd 1024(RGB)x768 high Contrast Ratio 1500:1
Description Review
Description

LQ150X1LW94  Sharp 15.0 inch lcd wide viewing angle 85/85/85/85 and hd 1024(RGB)x768 high Contrast Ratio 1500:1



General Specification

Manufacturer    SHARP

Screen Size    15.0 inch

Model Name    LQ150X1LW94

Screen Type    LCM ,   a-Si TFT-LCD

Pixel Number    1024(RGB)×768   (XGA)

Active Area(mm)    304.128 × 228.096 (H×V)

Bezel Area(mm)    307.4 × 231.3 (H×V)

Luminance    300 (Typ.)(cd/m²)

Viewing Angle    85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Good View at    Symmetry

Color Depth    16.2M   70% (CIE1931)

Mass    950g (Max.)

Refresh Rate    60Hz

Arrangement    RGB Vertical Stripe

Outline(mm)    326.5 × 253.5 × 10.1 (H×V×D)

Treatment    Antiglare, Hard coating (3H)

Contrast Ratio    1500 : 1 (Typ.) (TM)

Work Mode    ASV, Normally Black, Transmissive

Response    35 (Typ.)(Tr+Td) ms

Backlight    WLED , 50K hours , Embedded (LED Driver)

Used for    Game Machine  Industrial Application

Touchscreen    Without

Signal Type    LVDS (1 ch, 8-bit) , Connector , 30 pins

Voltage Supply    3.3V (Typ.)

Max. Ratings    Storage Temp.: -25 ~ 65 °C    Operating Temp.: 0 ~ 60 °C
