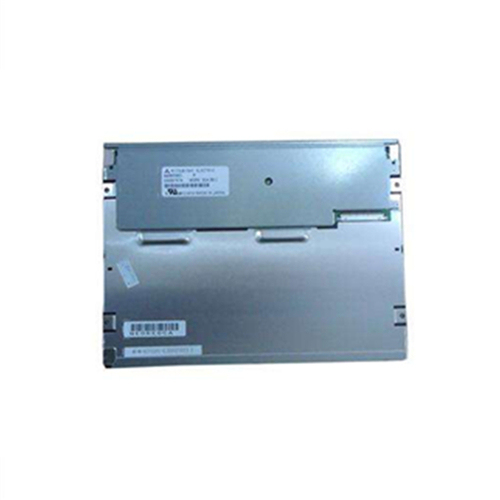

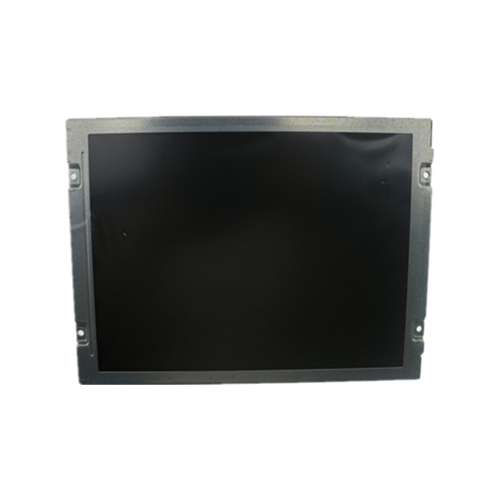

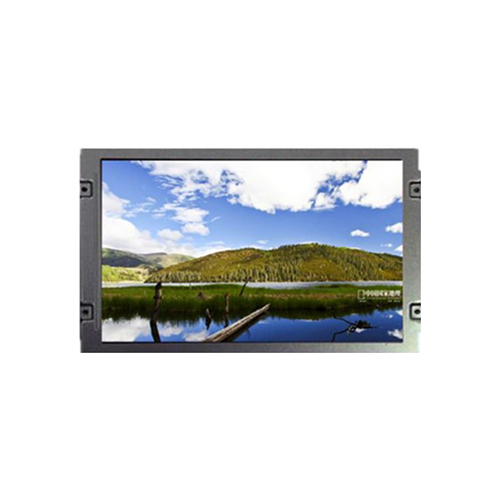

AA084SB11 mitsubishi 8.4 inch TFT-LCD display panel is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
General Specification
Panel Brand Mitsubishi
Panel Model AA084SB11
Panel Size 8.4 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×600 , SVGA
Pixel Format RGB Vertical Stripe
Display Area 170.4(W)×127.8(H) mm
Bezel Opening 174.9(W)×132.2(H) mm
Outline Size 199.5(W)×149(H) ×12(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 1200 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 80/80/80/60 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 4/12 (Typ.)(Tr/Td)
Display Colors 262K/16.7M 40% (CIE1931)
Lamp Type 2 strings WLED , 100K hours , Without Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 365g (Typ.)
Application Industrial Application
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
