With over a decade in display engineering, I've witnessed the evolution of LCD panel technologies from basic TN panels to today's advanced IPS and VA solutions. Understanding the differences between TFT, IPS, and VA technologies is crucial for selecting the right display for your specific application needs.

The Foundation: TFT Technology

Thin Film Transistor (TFT) is not a panel type itself, but rather the underlying technology that powers all modern LCD panels. TFT refers to the active matrix of transistors that individually control each pixel, enabling precise image reproduction.

The TFT layer serves as the electronic switching mechanism that applies voltage to specific pixels, controlling how much light passes through the liquid crystal layer. This foundation supports various panel technologies, each with distinct characteristics.

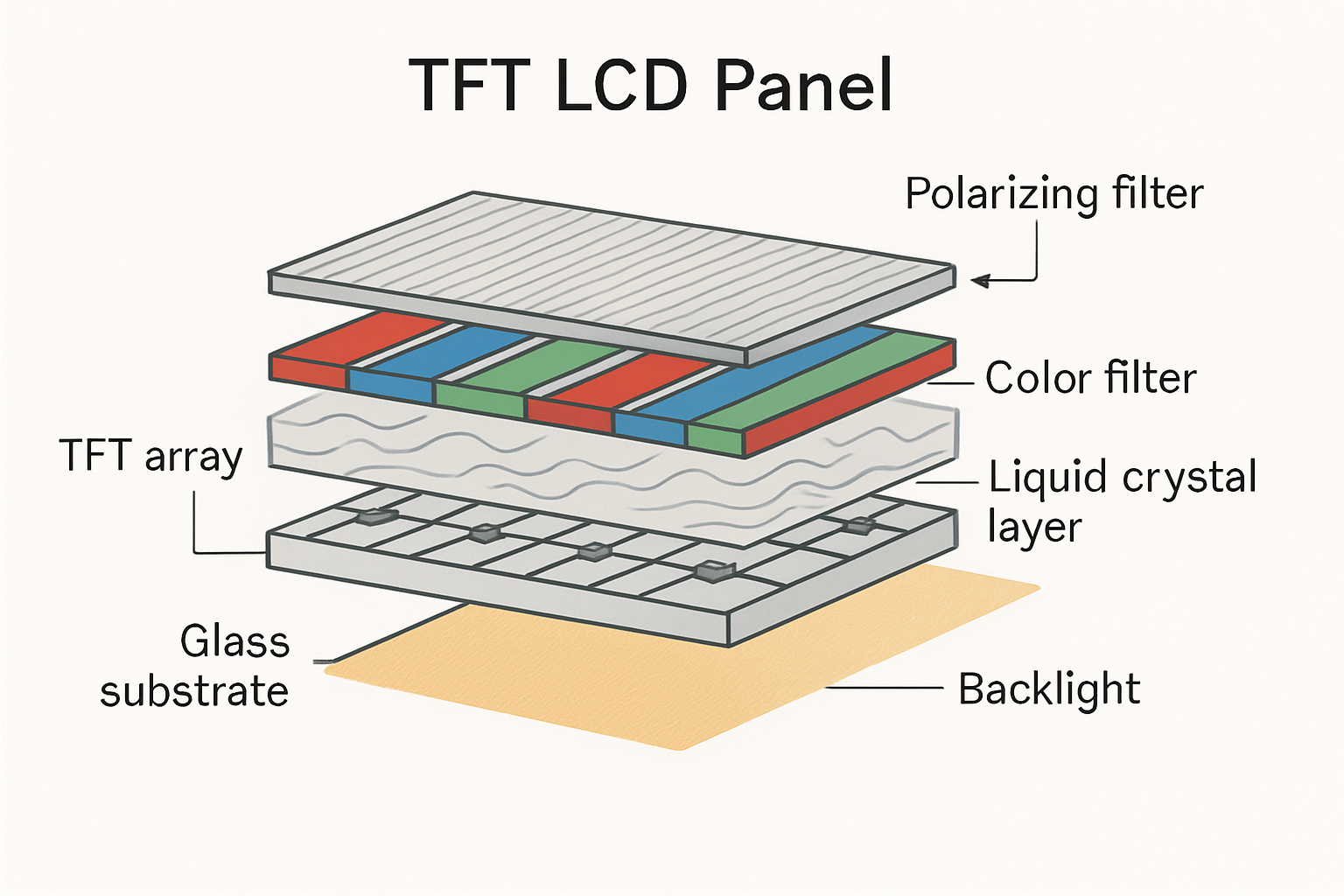

Figure 1: Structure of a TFT LCD Panel showing key components

Key LCD Panel Technologies Compared

TN (Twisted Nematic) Panels

The original and most basic TFT-LCD technology, TN panels offer:

Fast response times(1-5ms), ideal for applications requiring rapid screen updates
Low production costs, making them economical for budget-conscious projects
Limited viewing angles(typically 170°/160°), with color shifting when viewed off-angle
Lower color accuracy(typically 6-bit color with dithering)

Best suited for: Industrial control interfaces, point-of-sale terminals, and applications where cost efficiency outweighs color accuracy.

IPS (In-Plane Switching) Panels

Developed to overcome TN limitations, IPS technology delivers:

Superior color accuracy(8-bit or 10-bit true color)
Excellent viewing angles(up to 178° in all directions)
Consistent colorseven when viewed off-angle
Slower response timesthan TN (traditionally 5-8ms, though newer versions achieve 1ms)
Higher power consumptionthan TN panels

Best suited for: Color-critical applications, digital signage requiring wide viewing angles, premium retail displays, and medical imaging.

VA (Vertical Alignment) Panels

Positioned between TN and IPS in performance, VA panels offer:

Superior contrast ratios(typically 3000:1 to 5000:1)
Deep blacksdue to crystal alignment that blocks backlight when displaying black
Good viewing angles(better than TN but less than IPS)
Moderate response times(4-8ms typical)
Potential color shiftingat extreme viewing angles

Best suited for: Control room displays, surveillance monitoring, entertainment displays, and applications where contrast and black levels are critical.

Performance Comparison Table

Parameter	TN Panel	IPS Panel	VA Panel
Color Accuracy	Fair (6-bit+FRC)	Excellent (8/10-bit)	Good (8-bit)
Viewing Angle	Limited (170°/160°)	Superior (178°/178°)	Good (178°/178°)
Contrast Ratio	700:1 - 1000:1	1000:1 - 1500:1	3000:1 - 5000:1
Response Time	1-5ms	5-8ms (1ms in newer models)	4-8ms
Black Level	Fair	Good	Excellent
Power Consumption	Lowest	Highest	Moderate
Production Cost	Lowest	Highest	Moderate

Application-Specific Selection Guide

For Retail Digital Signage

Recommended: IPS panels for their wide viewing angles and color accuracy, ensuring your brand colors appear consistent to customers viewing from any position in the store.

Key considerations: Brightness (minimum 450 nits for indoor retail), color gamut (minimum 72% NTSC), and anti-glare treatment.

For Industrial Control Systems

Recommended: TN panels for cost-efficiency and fast response times in environments where operators are typically positioned directly in front of displays.

Key considerations: Durability, operating temperature range, and brightness (minimum 300 nits for indoor industrial settings).

For Medical Displays

Recommended: High-grade IPS panels with medical certifications for diagnostic accuracy, consistent viewing from multiple angles, and precise color reproduction.

Key considerations: DICOM compliance, minimum 10-bit color depth, and specialized calibration capabilities.

For Transportation Information Systems

Recommended: High-brightness IPS or VA panels with optical bonding for readability in varying light conditions.

Key considerations: Sunlight readability (minimum 1000 nits), wide temperature range, and vibration resistance.

Emerging Panel Technologies

The display industry continues to evolve with new technologies that build upon these foundations:

Quantum Dot Enhanced IPS: Offers expanded color gamut (95-100% DCI-P3) while maintaining IPS viewing angle advantages
Advanced VA (SVA/MVA/PVA): Variants that improve traditional VA limitations while maintaining contrast benefits
Hybrid IPS-VA Technologies: Combining the strengths of both technologies for specialized applications

Making the Right Selection

When selecting an LCD panel technology for your application, consider these factors:

Viewing environment: Will users view the display from multiple angles?
Color requirements: Does your application require precise color reproduction?
Contrast needs: Is high contrast essential for your content?
Response time: Does your application display fast-moving content?
Budget constraints: What is your target price point per unit?

At XIANHENG, we offer all three panel technologies and can provide detailed consultation to determine the optimal solution for your specific requirements. Our engineering team evaluates your application environment, content needs, and budget to recommend the most suitable panel technology.
