Waterproof & Dustproof LCD Solutions: IP Ratings & Protection Technologies

Introduction

In today's increasingly demanding industrial and outdoor applications, standard commercial displays simply cannot withstand the environmental challenges posed by moisture, dust, and other contaminants. As an engineer with over a decade of experience developing environmental protection solutions for display systems, I've witnessed firsthand how proper sealing and protection technologies can transform fragile electronic displays into robust information systems capable of thriving in the harshest conditions—from the humid tropics of Southeast Asia to the dust-laden environments of Middle Eastern industrial facilities.

Understanding IP Ratings: The Universal Standard for Environmental Protection

The Ingress Protection (IP) rating system provides a standardized method for evaluating the environmental protection of electronic enclosures. This two-digit code offers immediate insight into a display's ability to resist solid particles and liquids.

Decoding the IP Rating System

The first digit indicates protection against solid particles:
- 5: Dust-protected (limited ingress permitted)
- 6: Dust-tight (complete protection)

The second digit indicates protection against liquids:
- 4: Protection against splashing water
- 5: Protection against water jets
- 6: Protection against powerful water jets
- 7: Protection against temporary immersion
- 8: Protection against continuous immersion
- 9K: Protection against high-pressure, high-temperature water jets

Common IP Ratings for Industrial and Outdoor Displays

Advanced Sealing Technologies for Harsh Environments

Creating truly waterproof and dustproof displays requires sophisticated engineering approaches that go beyond simple gaskets and seals.

Specialized Sealing Materials and Techniques

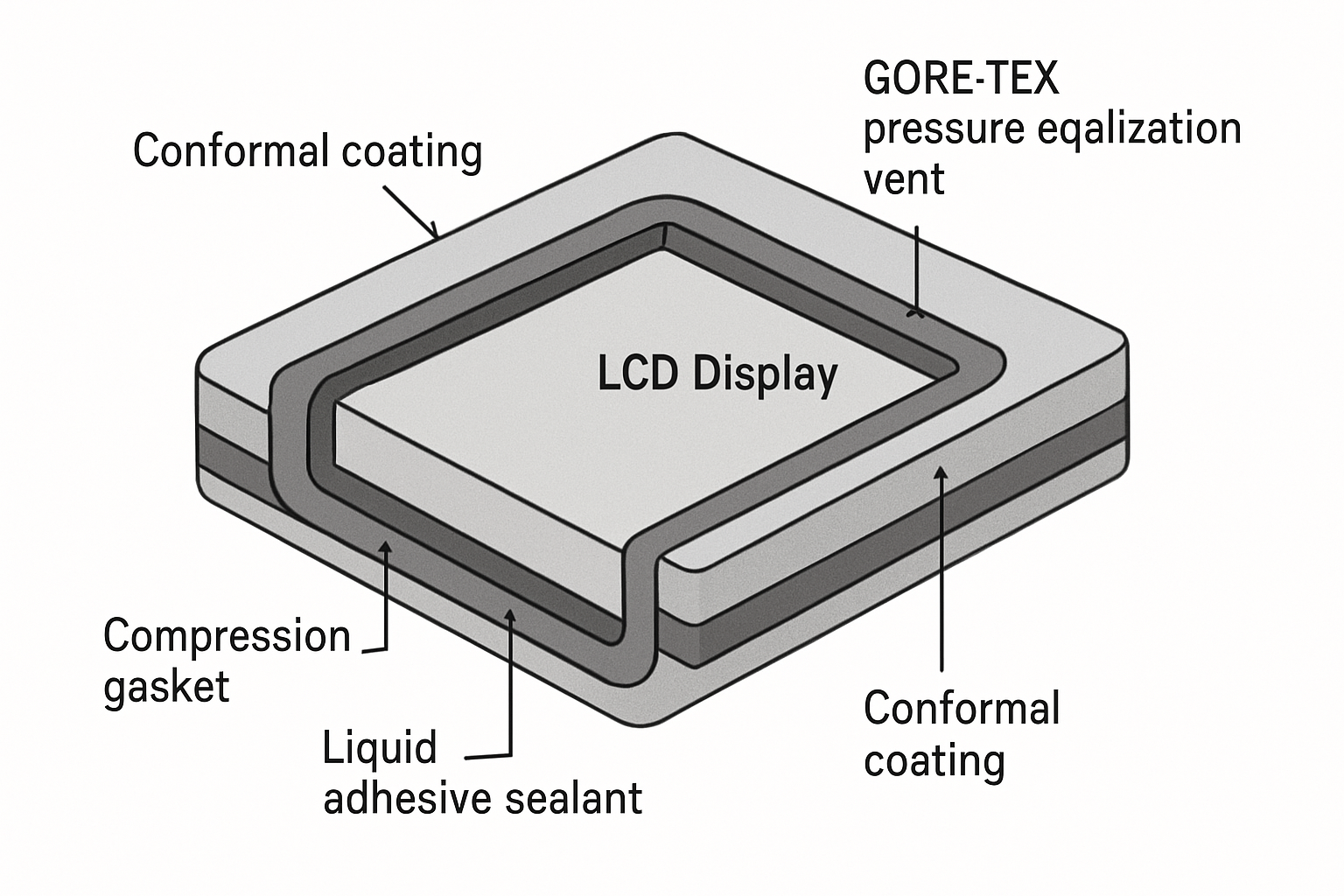

Figure: 2: Cross-sectional view of multi-layer sealing system showing specialized gaskets, adhesives, and protective coatings

1. Compression Gaskets: Engineered elastomers with specific durometer ratings and compression set resistance maintain sealing integrity over thousands of thermal cycles.
2. Liquid Adhesive Sealants: Two-component polyurethane and silicone systems create permanent, flexible bonds that accommodate thermal expansion while maintaining environmental barriers.
3. Conformal Coatings: Specialized acrylic, silicone, or parylene coatings applied to circuit boards provide additional protection against humidity and condensation.
4. Gore-Tex® Pressure Equalization Vents: These specialized membranes allow air pressure equalization while blocking moisture and contaminants, preventing seal stress during temperature changes.

Optical Bonding: Protection and Performance Enhancement

Optical bonding—the process of eliminating air gaps between display layers using specialized adhesives—serves dual purposes in environmentally protected displays:

1. Enhanced Environmental Protection: Eliminates internal air spaces where condensation can form
   2. Improved Optical Performance: Reduces reflections and increases contrast ratio
   3. Increased Mechanical Strength: Provides additional structural integrity against impacts
   4. Temperature Stability: Reduces stress on display components during thermal cycling

Regional Environmental Challenges and Specialized Solutions

Different global regions present unique challenges for environmentally protected displays, requiring specialized engineering approaches.

Southeast Asian High-Humidity Environments

The tropical climate of Southeast Asia presents particular challenges:

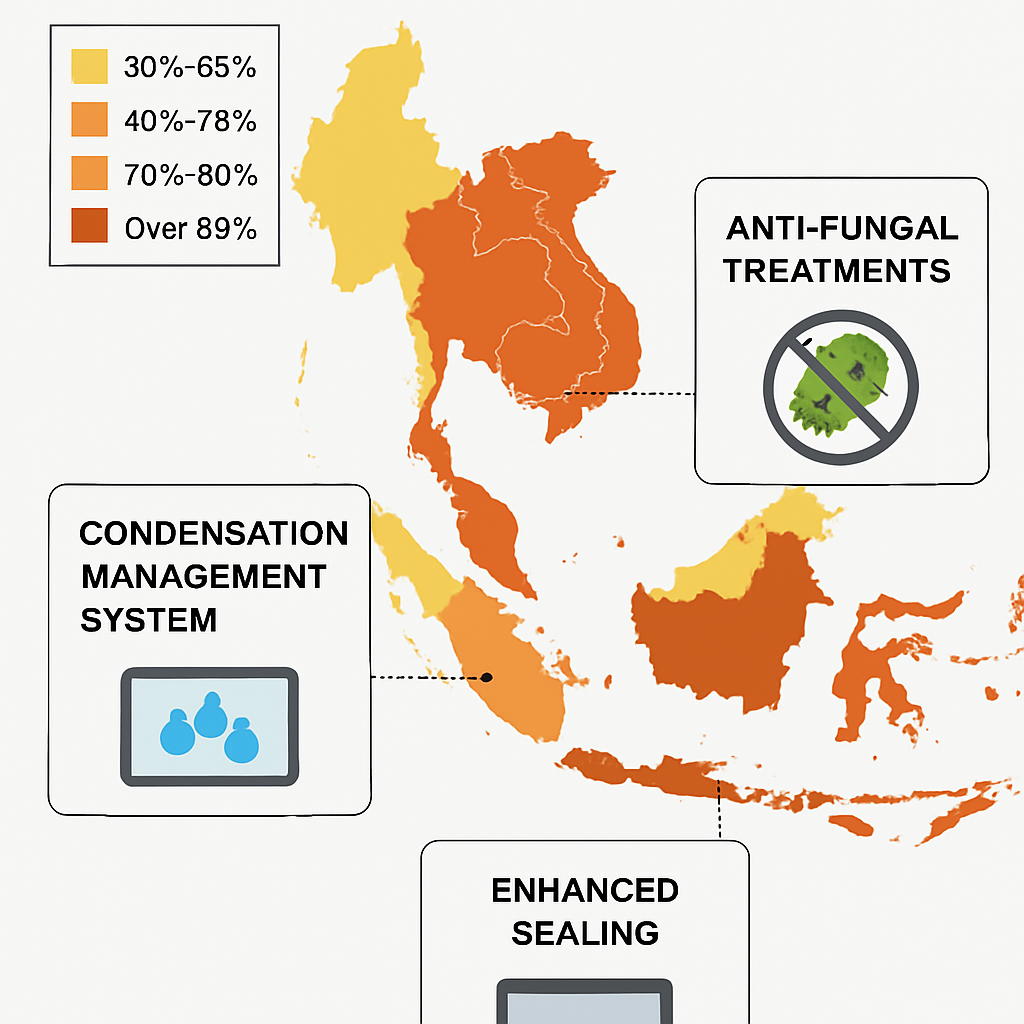

Figure: 3: Regional humidity map of Southeast Asia with corresponding display protection technologies for varying conditions

1. Extreme Humidity: Relative humidity regularly exceeding 90% requires:
   - Enhanced conformal coating of all electronic components
   - Anti-fungal treatments to prevent mold growth
      - Desiccant systems with humidity indicators
      - Specialized hydrophobic surface treatments
2. Monsoon Conditions: Heavy seasonal rains demand:
   - Higher IP ratings (minimum IP66)
   - Redundant sealing systems
      - Drainage channels in external enclosures
      - Corrosion-resistant materials for all external components
3. Condensation Management: Rapid temperature changes cause condensation, requiring:
   - Active or passive internal climate control
   - Anti-fog coatings on viewing surfaces
      - Thermal insulation to reduce surface temperature differentials

Middle Eastern Dust and Heat Challenges

The Middle East combines extreme heat with fine dust particles, creating unique protection requirements:

1. Fine Dust Infiltration: Desert environments contain ultra-fine particulates that can penetrate standard seals:
   - Labyrinth seals with multiple barrier paths
   - Positive pressure systems with filtered air intake
      - Electrostatic-resistant materials to prevent dust attraction
      - Specialized gasket materials resistant to dust embedding
2. Extreme Temperature Cycling: Daily temperature variations of 30°C or more stress sealing systems:
   - Materials with matched thermal expansion coefficients
   - Multi-durometer gasket systems
      - Flexible adhesive systems with high elongation properties
      - Thermal isolation of critical sealing components

Balancing Protection with Thermal Management

One of the greatest engineering challenges in environmentally protected displays is balancing sealing integrity with effective thermal management.

Passive Thermal Management Approaches

1. Heat Pipe Systems: Sealed heat transfer systems that move heat from internal components to external heat sinks without compromising environmental integrity
2. Phase Change Materials: Specialized compounds that absorb heat during temperature increases and release it during cooling, reducing thermal cycling stress
3. Thermally Conductive Gaskets: Specialized materials that maintain environmental seals while allowing heat transfer

Active Thermal Management Solutions

1. Sealed Cooling Systems: Closed-loop cooling systems that transfer heat without exposing internal components to environmental contaminants
2. Filtered Ventilation: Positive pressure systems with IP-rated filters that allow airflow while preventing contaminant ingress
3. Thermoelectric Cooling: Solid-state cooling systems with no moving parts that can be completely sealed against environmental factors

Industry Applications and Success Stories

Environmentally protected displays have enabled critical applications across multiple sectors where visual information must remain available regardless of environmental conditions.

Food Processing and Pharmaceutical Manufacturing

Washdown environments require displays that can withstand daily cleaning with high-pressure water and chemical sanitizers:

- IP69K-rated displays with stainless steel enclosures
- Chemically resistant sealing materials
- Smooth surfaces without crevices to prevent bacterial growth
- Touch interfaces that function reliably when wet or with gloved operation

Offshore and Marine Applications

Perhaps the most challenging environments combine saltwater exposure with vibration and temperature extremes:

- IP68-rated systems with corrosion-resistant materials
- Multiple redundant sealing systems
- Specialized coatings for UV and salt spray resistance
- Shock and vibration isolation integrated with environmental protection

Outdoor Digital Signage and Kiosks

24/7/365 exposure to weather conditions requires comprehensive protection:

- IP65 or higher ratings with additional solar load management
- Condensation prevention systems for day/night temperature cycling
- Vandal-resistant features integrated with environmental protection
- Multi-year seal integrity without maintenance

Total Cost of Ownership Analysis

While environmentally protected displays typically carry a higher initial purchase price than standard commercial displays, the total cost of ownership analysis reveals significant long-term advantages.

Cost Factors Beyond Purchase Price

1. Replacement Costs: Standard displays in harsh environments may require replacement 5-10x more frequently
2. Downtime Costs: System unavailability during display failures can far exceed hardware costs, particularly in critical applications
3. Maintenance Expenses: Sealed systems require significantly less maintenance and cleaning
4. Installation Flexibility: Protected displays can be installed in locations where standard displays would require expensive environmental enclosures

Conclusion

As industrial systems, outdoor equipment, and public information displays continue to expand into increasingly challenging environments, the importance of proper environmental protection cannot be overstated. The IP rating system provides a valuable starting point for evaluating protection levels, but true environmental resilience requires sophisticated engineering approaches tailored to specific regional and application challenges.

XIANHENG's portfolio of environmentally protected displays, ranging from IP54 to IP69K ratings, provides field-proven solutions for the most demanding industrial and outdoor applications across global markets. Our engineering team specializes in customizing protection systems to meet the specific requirements of your deployment environment, whether facing the humidity challenges of Southeast Asia or the dust and heat extremes of Middle Eastern installations.

For more information on selecting the optimal environmental protection solution for your specific challenges, contact our technical team for a consultation tailored to your project requirements.
