Overview

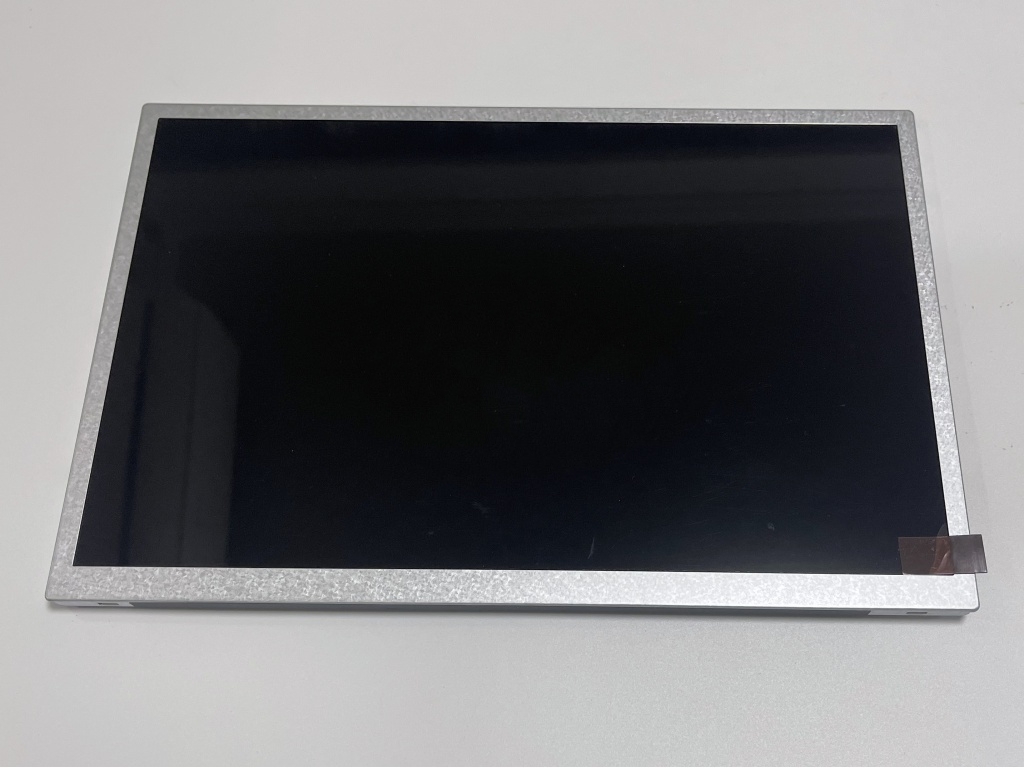

The BOE GV121WXM‑N80 is a 12.1" WXGA industrial-grade TFT‑LCD module optimized for embedded displays that require reliable performance in varied lighting and temperature conditions. It balances sharp image reproduction with robust environmental tolerance and simple integration.
Quick facts: 1280×800 WXGA • 450 cd/m² • LVDS (2ch, 8-bit) • WLED backlight with LED driver • Operating −20~+70°C.
Key selling points
1280×800 on a 12.1" diagonal delivers clear text, UI elements and detailed graphics suitable for HMI and medical displays.
450 cd/m² typical and ≈85° viewing angles mean reliable readability in bright indoor and semi-outdoor environments.
Rated for −20°C to +70°C, suitable for factory floors, vehicles and outdoor kiosks (with appropriate enclosures).
2‑channel LVDS and an internal WLED driver reduce external component needs and speed up integration.
BOE is a leading panel maker—good for long‑term projects and volume sourcing.
Technical specifications (at a glance)
| Panel size / Resolution | 12.1" — 1280 × 800 (WXGA) |
|---|---|
| Brightness (typical) | 450 cd/m² |
| Viewing angle | ≈85° / 85° / 85° / 85° (L/R/U/D, CR≥10) |
| Contrast ratio (typ) | 1000:1 (typ.) |
| Interface | LVDS (2-channel, 8-bit), 30-pin connector |
| Backlight | WLED with internal LED driver |
| Power | 3.3V typical |
| Operating temperature | −20°C to +70°C |
| Storage temperature | −30°C to +75°C |
| Outline size | 278 × 184 × 9.91 mm |
| Weight | ≈535 g |
Recommended applications
- Industrial HMIs and control panels
- Medical monitoring and diagnostic equipment
- Ticketing kiosks, vending machines and semi‑outdoor terminals
- Vehicle/transport displays and ruggedized embedded systems
- Prototyping and engineering development for productization
Integration tips (engineer checklist)
- Keep LVDS signal runs short and impedance‑matched to prevent signal integrity issues.
- Use PWM dimming for backlight control if variable brightness is required—check compatibility with the internal LED driver.
- Design enclosure cutouts considering the active area and mounting tolerances shown on the mechanical drawing.
- Plan for ventilation or shading if the device will be exposed to direct sunlight or temperatures near +70°C.
- Test assembled units under vibration and humidity conditions relevant to the target environment.
Ordering & support
This module is commonly offered as an original BOE part through industrial distributors and OEM suppliers. For current stock, lead times and pricing, contact your panel distributor or reach out to the supplier listed below.
Contact & next steps
Need a catalog-ready blurb, a short ad copy, or a side‑by‑side comparison with similar 12.1" modules? We can prepare a tailored spec sheet or procurement checklist to speed up your selection.
Sales contact: sales@xianheng99.com
Or request these quick extras:
- Short product blurb for catalog/ads (25–60 words)
- Side‑by‑side spec comparison with an IPS alternative
- Integration checklist customized for your enclosure
