LM238WF1-SLK1 sourcing should begin with the OEM enclosure drawing. A 23.8-inch FHD panel may match the required image format yet leave the connector trapped behind a bracket or the touch window misaligned. Purchasing needs a defined mechanical assembly before releasing panels, covers, cables, and supports for batch production.
Claim: Mechanical approval requires evidence that the supplied display assembly fits, connects, and operates in the intended enclosure.
Which Drawings Establish the Mechanical Purchase?
Which Drawing Version Should Purchasing Release?
LG Display's 24 March 2016 Ver.1.0 final specification identifies the SLK1 suffix. Its revision history records a mechanical-drawing update on 17 March 2016. Obtain the applicable document for the offered panels rather than approving an undated LM238WF1 family drawing.
The reference lists a 543.0 × 317.4 mm outline and 11.2 mm nominal depth. XIANHENG's product table lists 11.7 mm depth. These entries alone do not establish whether the difference concerns tolerance, a local feature, or another measurement basis. Resolve the complete envelope from the applicable sectional drawing before enclosure release.
Identify the panel label, document revision, supplier assembly drawing, and customer enclosure revision in the sample request. If information is missing, keep the affected dimension open rather than treating a photograph as a dimensioned drawing.
Claim: A purchasing drawing must identify the supplied configuration and resolve dimensions that affect enclosure clearance.
How Should the Image Align with the Equipment Window?

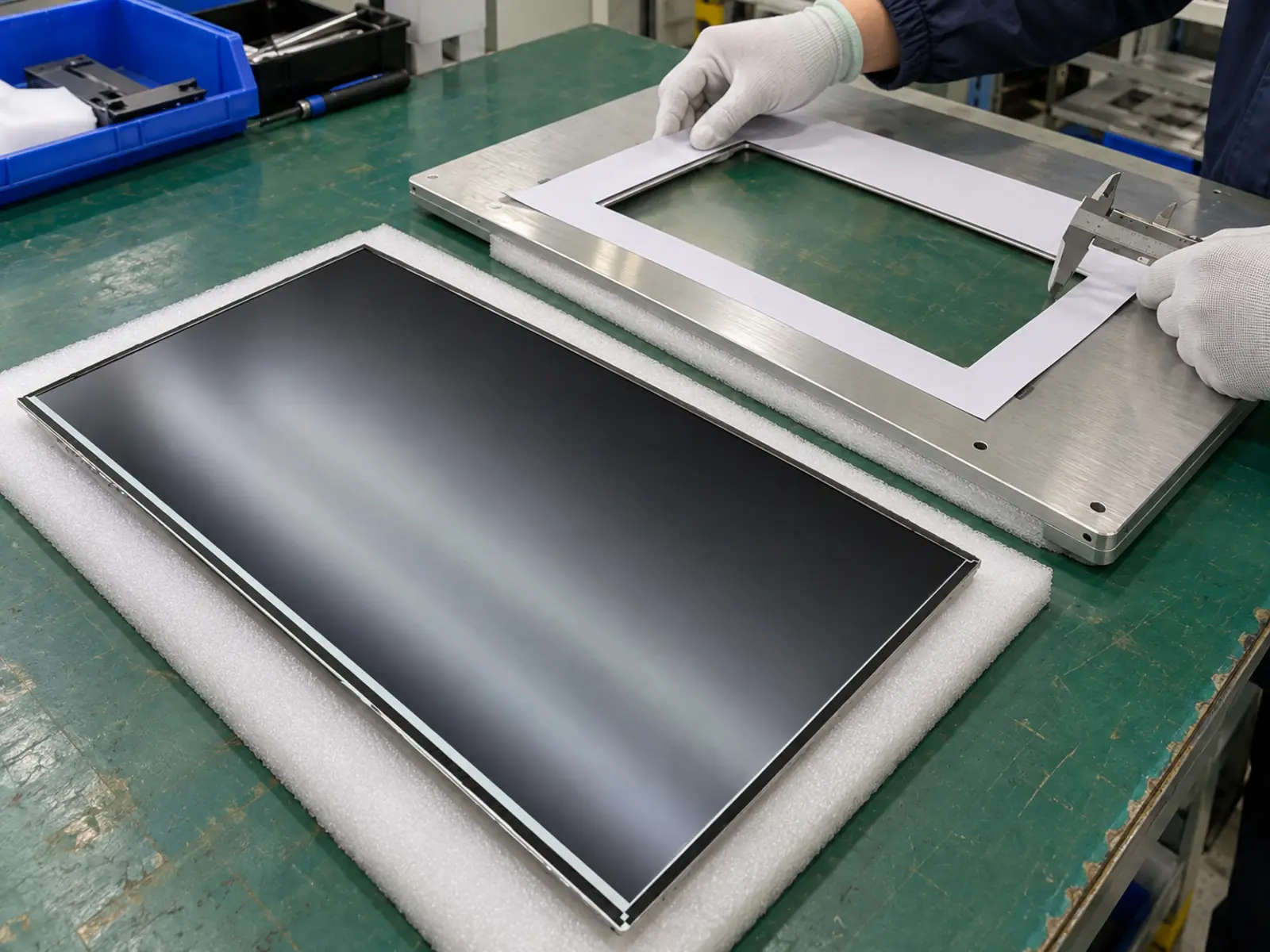

The reference distinguishes the 527.04 × 296.46 mm active area from the 530.2 × 299.6 mm bezel opening. Neither dimension independently defines the OEM's cover-glass window.
Overlay the panel, cover, touch sensor, and enclosure using agreed datums. Check visible pixels at every edge, printed-border overlap, and touch coverage. Do not assume that the image is centered from the outer dimensions or copy the metal bezel opening directly into the cover drawing.
Illustrative tolerance check: 0.8 mm nominal clearance with 1.0 mm accumulated movement toward an obstruction allows 0.2 mm interference. These are example values, not this panel's tolerances. Use the actual panel, bracket, cover, and assembly tolerances for release.
Claim: Window approval depends on image position and accumulated tolerances across the assembled parts.
What Must Fit Beyond the Bare Panel Outline?
Where Do Supports and Mated Cables Need Space?

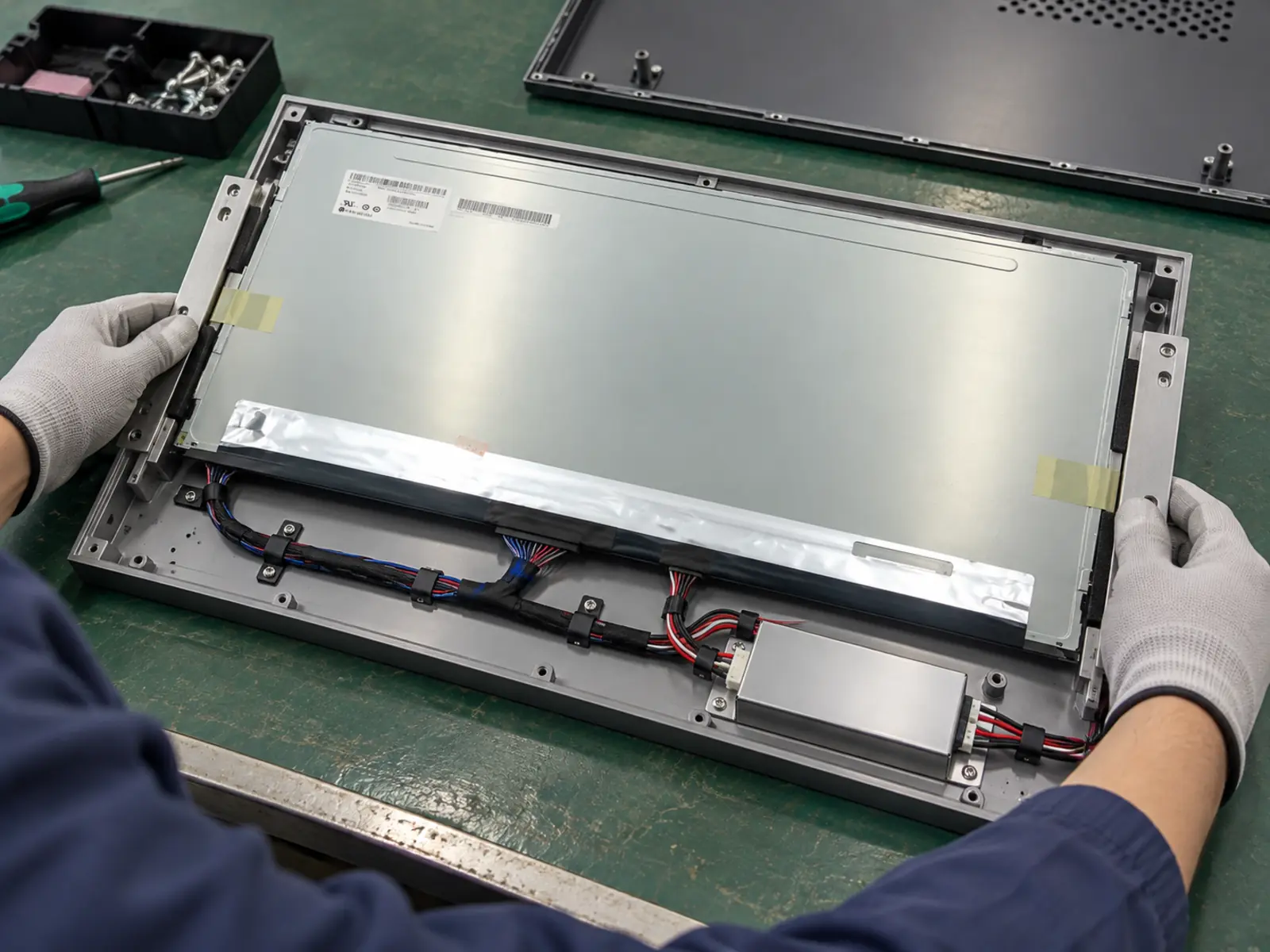

LG Display recommends support from both side mounts and warns against pressure on the COF area. Define bracket contact, fastener engagement, torque, and protected regions from the applicable drawing. A rear cover should not force a poorly aligned bracket into position.
The reference separates the 30-pin LVDS connection from the six-pin backlight connection; the LED driver is external. Mechanical review must include the installed mating plugs, cable exits, driver location, and assembly access.
| Interface | Evidence required before release |
|---|---|
| Panel and support | Contact zones, hole locations, engagement limits, and permitted assembly loading. |
| Connectors and harnesses | Rear-view orientation, pin-one reference, mating direction, cable bend allowance, and restraint. |
| Added electronics | Board envelope, standoffs, connector access, insulation, and thermal clearance. |
Specify cable bend limits from the selected harness construction. Check the insertion and removal path as well as the final position; a plug can fit in service yet remain impossible to install after the bracket is fastened.
Claim: The installation envelope includes connection and assembly space beyond the LCD chassis.
What Must the Mounted Sample Demonstrate?

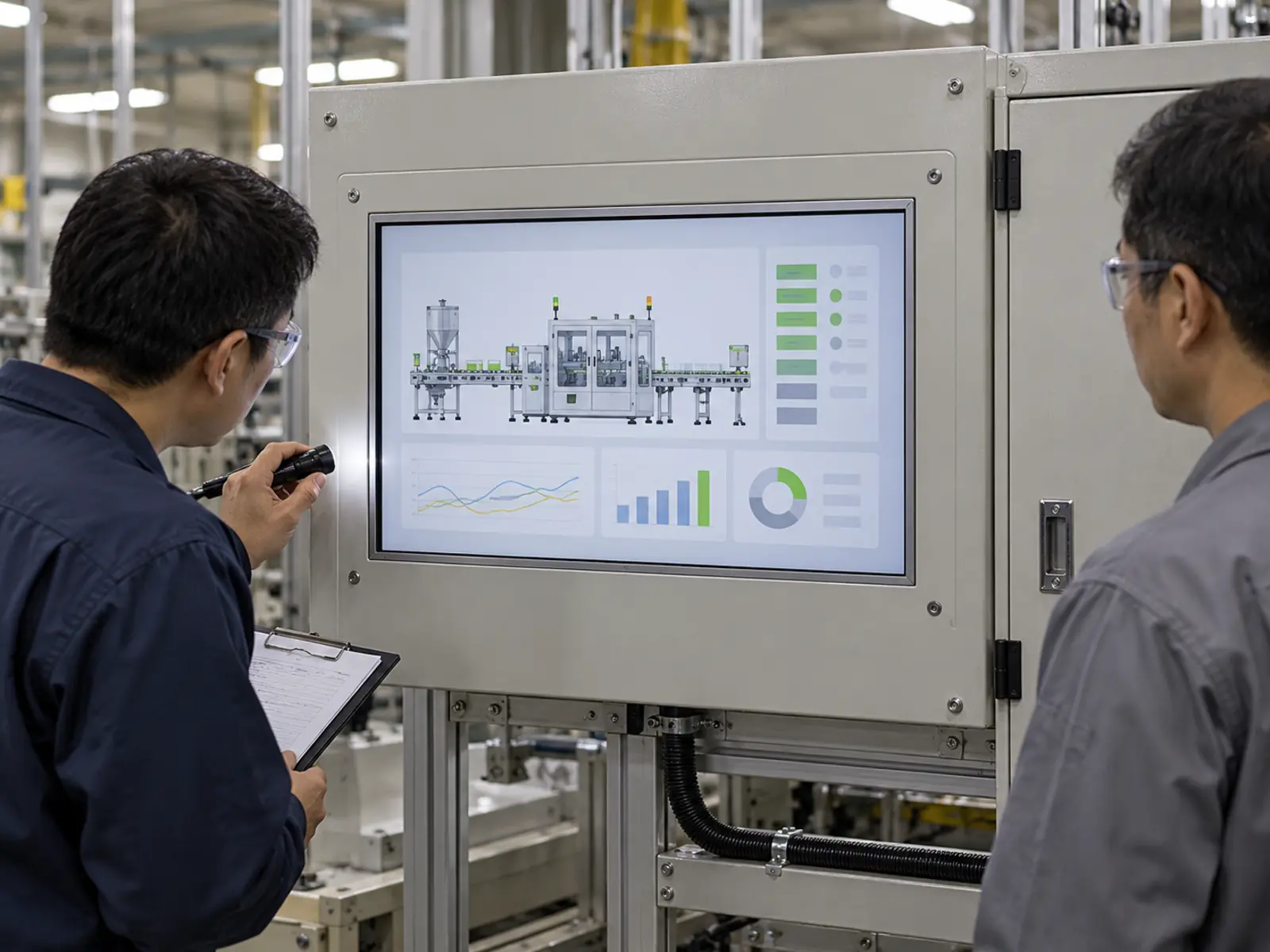

Use the proposed production brackets, fasteners, harnesses, cover, and any touch components. Inspect image uniformity before mounting and after fastening, then repeat with the rear cover closed. New pressure-related changes require a review of support and loading.
Check edge visibility, cable pinching, connector seating, restart, dimming, and equipment pages. For PCAP, verify edge inputs and coordinate alignment in the assembled grounding arrangement. Exercise any service-door movement without pulling on panel connections.
Record the accepted stack, clearances, fasteners, routing, inspection conditions, and photographs. A successful open-bench sample leaves the closed-enclosure fit unproven.
Claim: The approved sample must reproduce the mechanical conditions that production will build.
What Advantages Does XIANHENG Offer for LM238WF1-SLK1 Integration?
XIANHENG can review the LG Display LM238WF1-SLK1 23.8 Inch FHD IPS LCD Panel against OEM drawings and coordinate proposed cables, electronics, and custom PCAP touch. Cover-glass outline, printing, thickness, and bonding options need their own agreed stack drawing.
Standard reference luminance is 250 cd/m². Selected models can be assessed for 500–1000 cd/m² customization; special higher targets require confirmation. LM238WF1-SLK1 feasibility must be checked with XIANHENG. Any modification needs renewed space, driver, power, and thermal review, with brightness specified at the agreed measurement surface.
Send enclosure drawings, rear-space limits, host details, touch requirements, brightness targets, and quantities. Review the Industrial LCD Product Collection or reach out to XIANHENG for a configuration review and sample proposal.
Claim: XIANHENG can help define the proposed display assembly for the OEM's mechanical and equipment-level approval.
