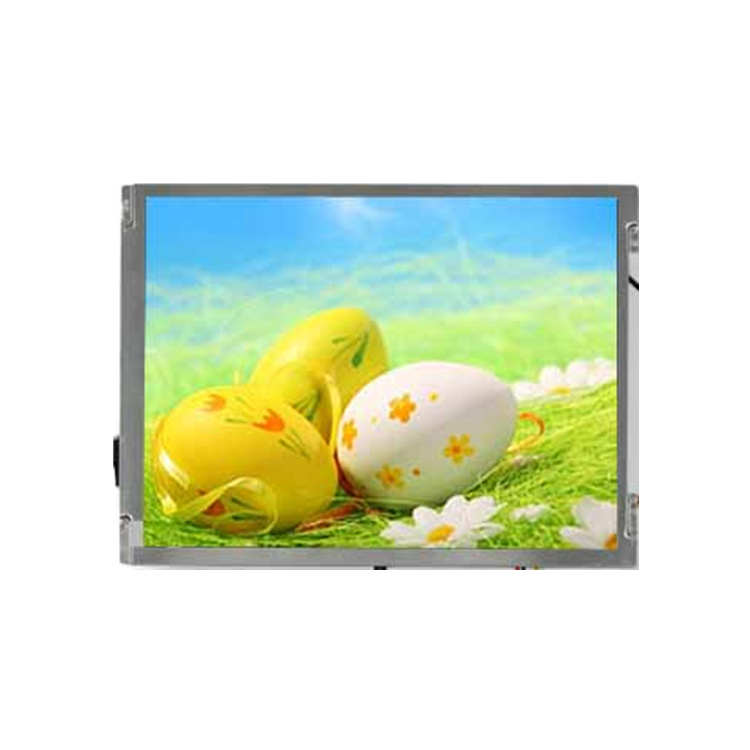

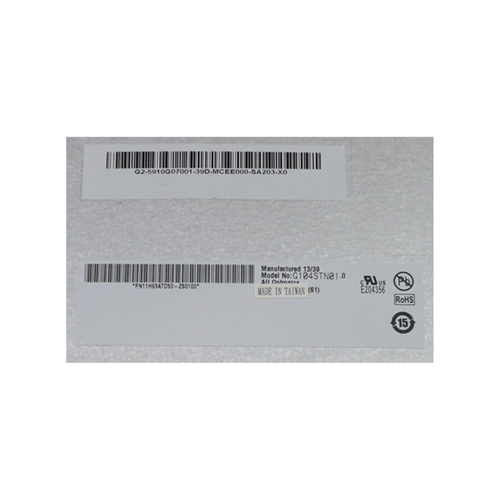

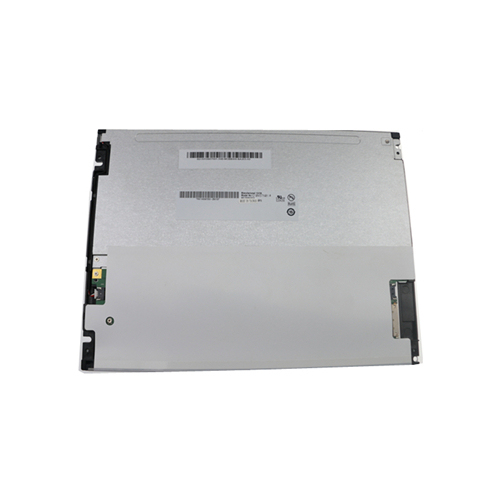

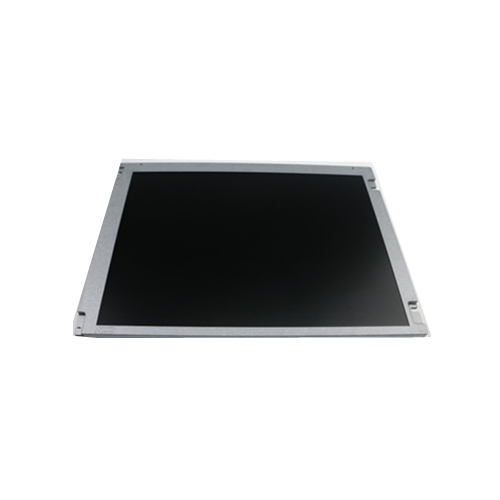

G104STN01.0 10.4 inch AUO tft LCD module display screen

No.G104STN01.0
G104STN01.0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide v
  • G104STN01.0 10.4 inch AUO tft LCD module display screen
  • G104STN01.0 10.4 inch AUO tft LCD module display screen
  • G104STN01.0 10.4 inch AUO tft LCD module display screen
  • G104STN01.0 10.4 inch AUO tft LCD module display screen

Description

G104STN01.0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.


Brand AUO
Model G104STN01.0
Type a-Si TFT-LCD , LCM
Diagonal Size 10.4 inch
Pixel Format 800(RGB)×600   [SVGA]
Active Area 211.2(H)×158.4(V) mm
Bezel Area 214.8(H)×162.7(V) mm
Luminance 400 cd/m² (Typ.)
Viewing Angle 80/80/60/70 (Typ.)(CR≥10) Left / Right / Up / Down
Support Color 262K/16.2M   50% (CIE1931)
Weight 365g (Typ.)
Frame Rate 60Hz
Configuration RGB Vertical Stripe
Outline Dim. 243(H)×184(V) ×7(D) mm
Treatment Antiglare, Hard coating (3H)
Contrast Ratio 700:1 (Typ.) (TM)
Response Time 10/5 (Typ.)(Tr/Td)
Operating Mode TN, Normally White, Transmissive
Light Source WLED  [7S2P] , 70K hours , Embedded (LED Driver)
Designed For Industrial Application
Touch Panel Without
Interface Type 20 pins   LVDS (1 ch, 6/8-bit) , Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
