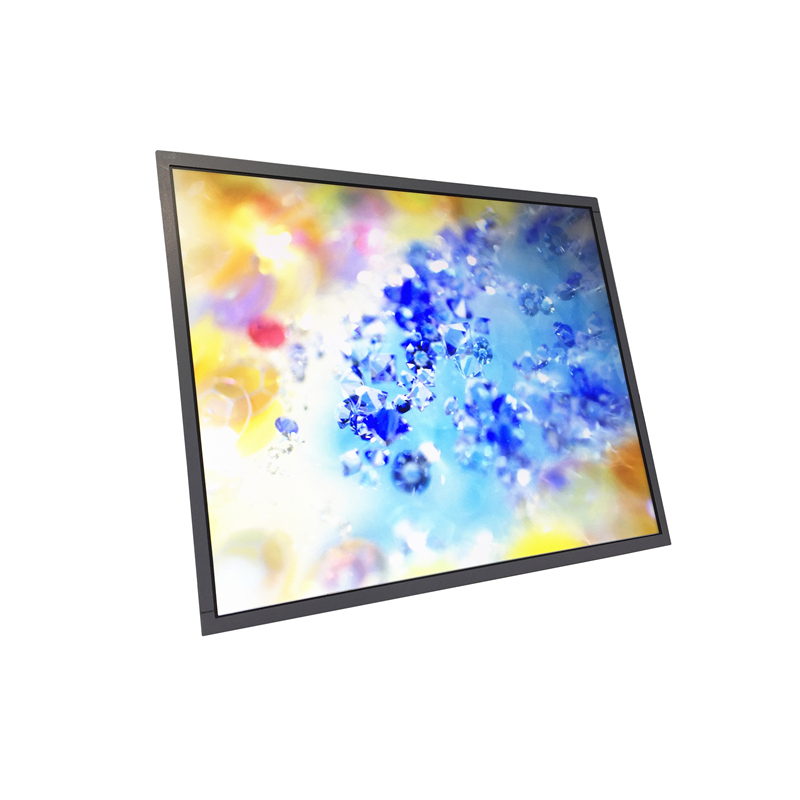

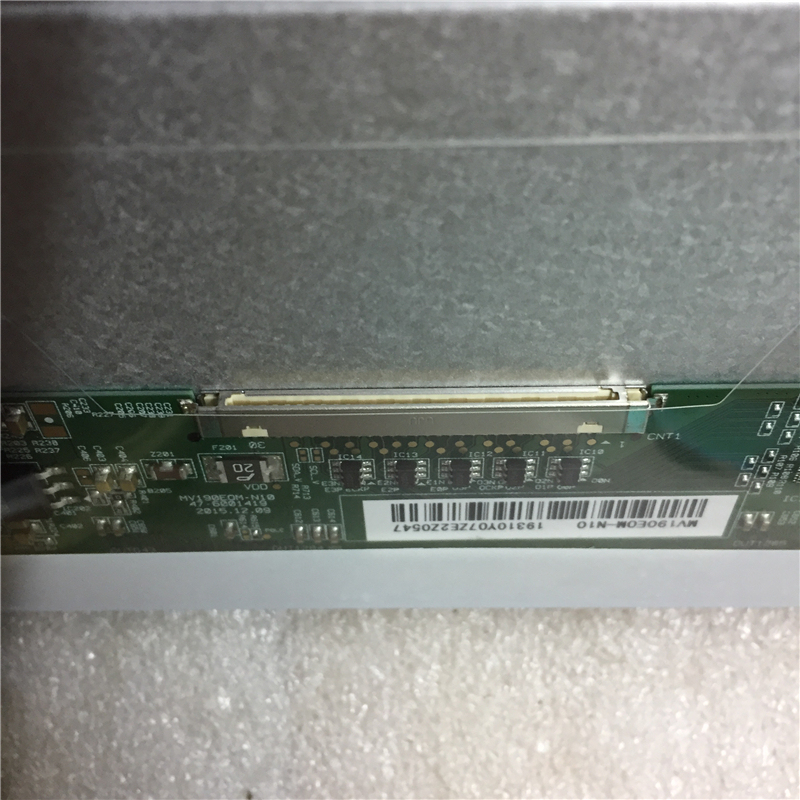

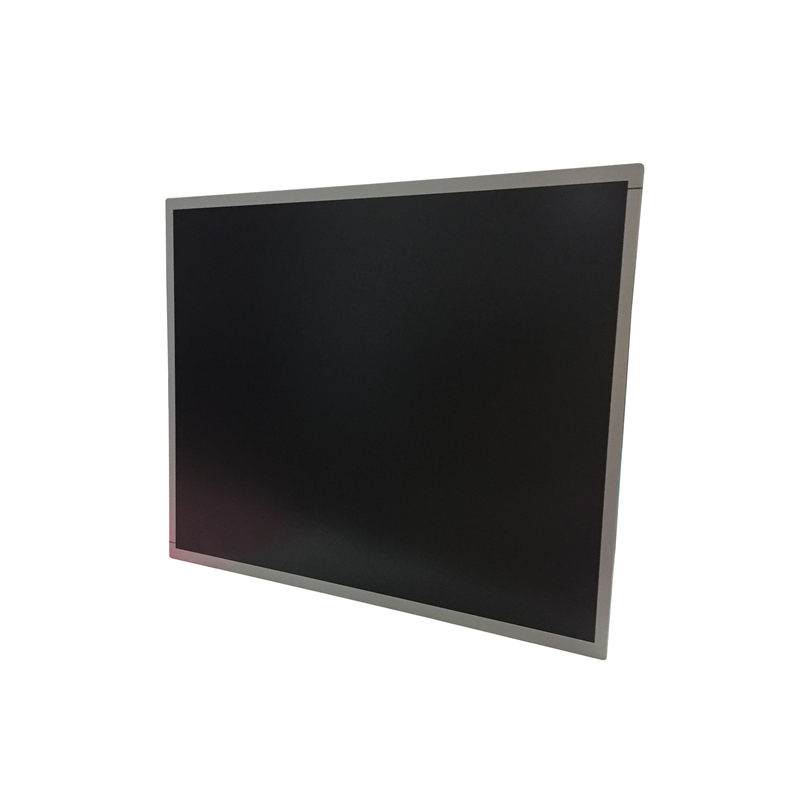

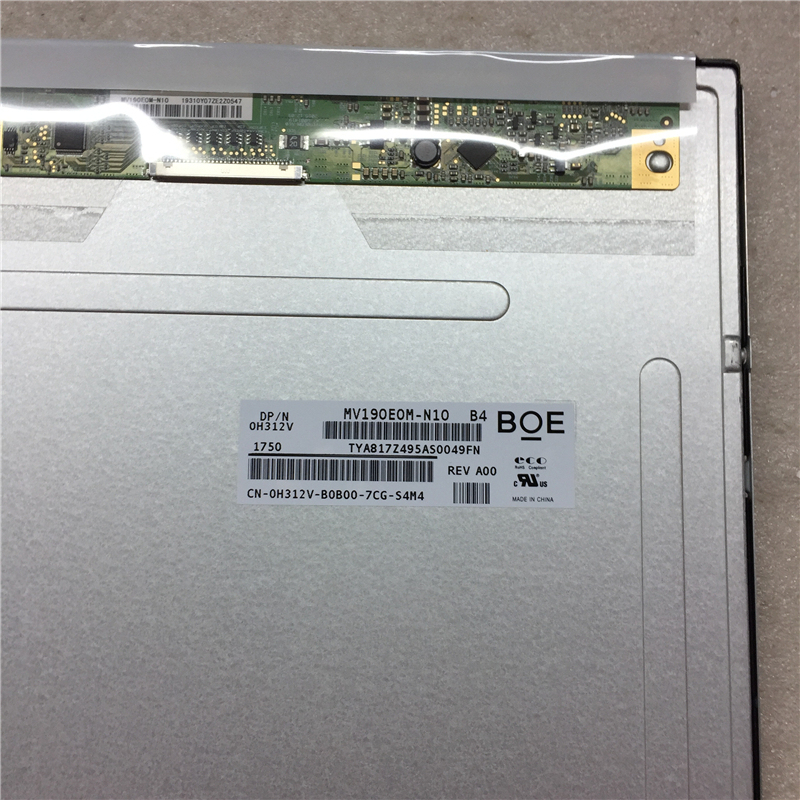

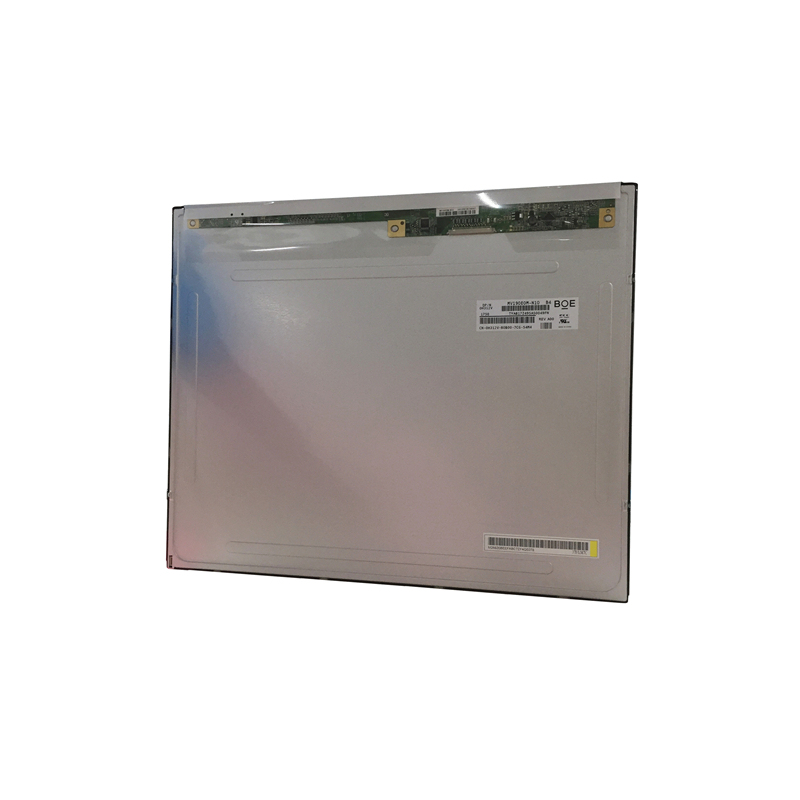

MV190E0M-N10 BOE 19 inch lcd display

Item No.: MV190E0M-N10
MV190E0M-N10 BOE 19 inch tft-lcd Slim-Size Display wide viewing angle for advertising display and Self-service Car Parking Control System.
Description Review
Description

Low MOQ resolution 1280*1024 19 inch tft lcd panel 19" square for advertising display or Self-service Car Parking Control System



MV190E0M-N10 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 19 inch diagonally measured active area with SXGA resolutions (1280 horizontal by 1024 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features

LVDS Interface with 2 pixel / clock

High-speed response

6-bit (Hi-FRC) color depth, display 16. 7M colors

Incorporated edge type back-light (LED)

NTSC 72%

High luminance and contrast ratio, low reflection and wide viewing angle

DE (Data Enable) only

RoHS/Halogen Free

TCO 6.0 , E/S 6.0 compliant

Gamma Correction

Application

Desktop Type of PC & Workstation Use

Slim-Size Display for Stand-alone Monitor

Display Terminals for Control System

Monitors for Process Controller

Packing Note

Box Dimension : 521mm * 346mm * 403mm

Package Quantity in one Box : 8 pcs

Box label

Label Size : 108 mm (L) × 56 mm (W)

General Specification

Brand:     BOE

Screen Size:     19.0 inch

Model Name:     MV190E0M-N10

Screen Type:     LCM ,   a-Si TFT-LCD

Arrangement:     RGB Vertical Stripe

Outline(mm):     396 × 324 × 10.4 (H×V×D)

Pixel Number:     1280(RGB)×1024   (SXGA)

Active Area(mm):     374.784 × 299.827 (H×V)

Bezel Area(mm):     378.8 × 303.0 (H×V)

Treatment:     Antiglare (Haze 25%), Hard coating (3H)

Luminance:     250 (Typ.)(cd/m²)

Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Good View at:     Symmetry

Color Depth:     16.7M   72% (CIE1931)

Mass:     1.72Kgs (Typ.)

Refresh Rate:     60Hz

Contrast Ratio:     1000 : 1 (Typ.) (TM)

Work Mode:     ADS, Normally Black, Transmissive

Response:     8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) ms

Backlight:     2 strings WLED , 30K hours , No Driver

Used for:     Industrial Application  Desktop Monitor

Touchscreen:     Without

Signal Type:     LVDS (2 ch, 8-bit) , Connector , 30 pins

Voltage Supply:     5.0V (Typ.)

Max. Ratings:     Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
