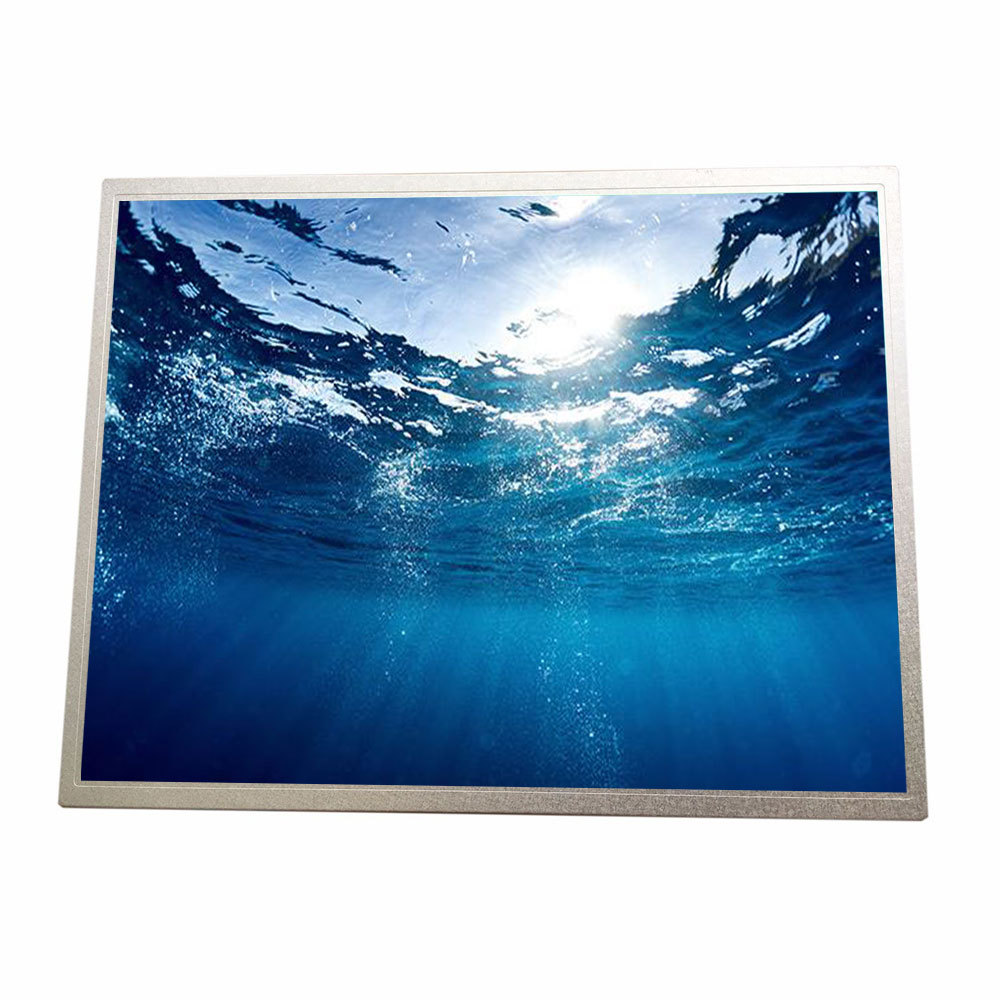

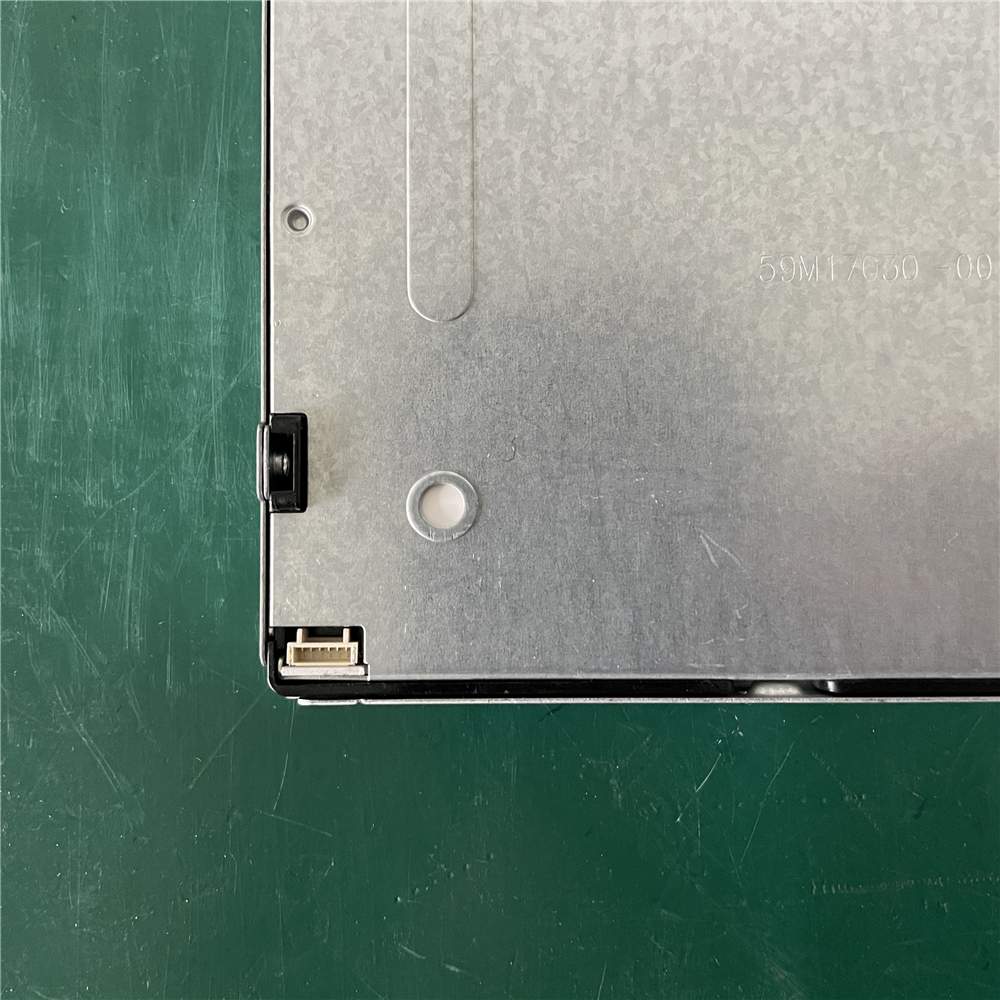

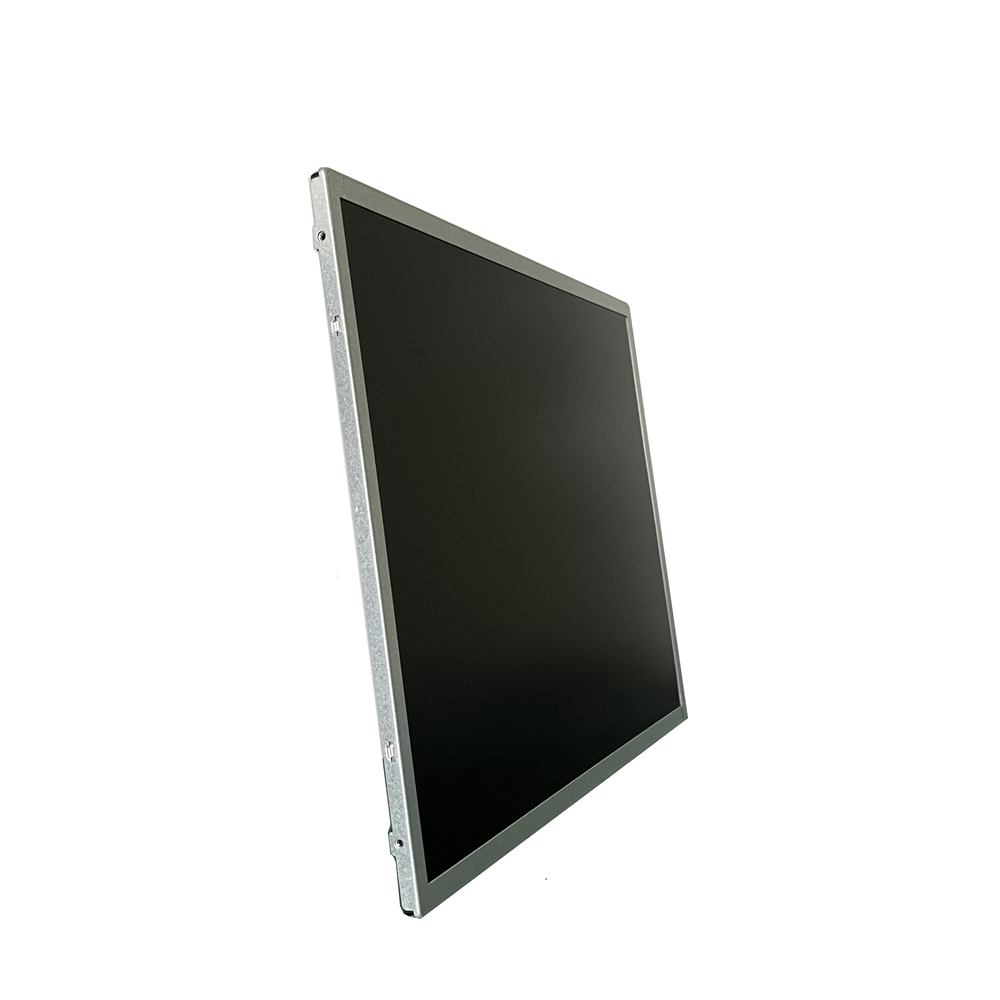

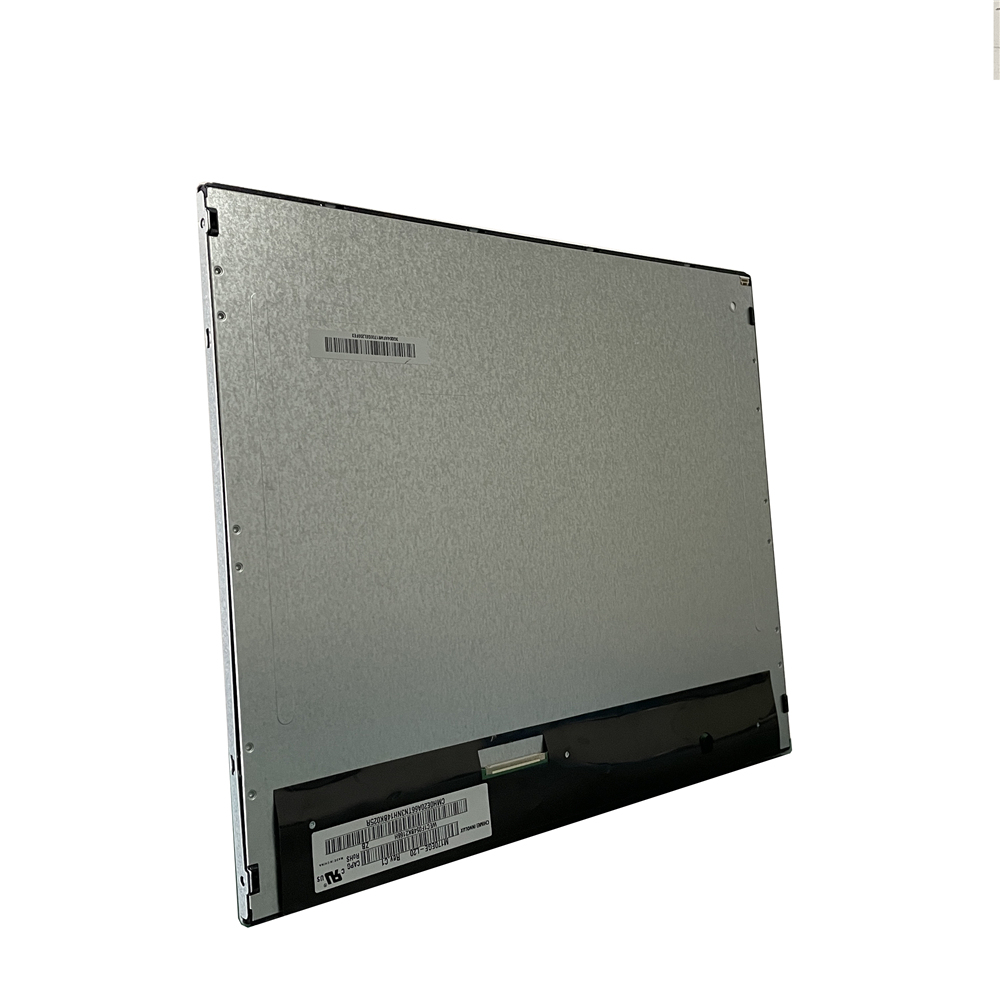

M170EGE-L20 INNOLUX 17 inch square lcd display screen

Item No.: M170EGE-L20
Chimei Innolux M170EGE-L20 is a 17.0" diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, without backlight driver, without touch screen.
Description Review
Description

M170EGE-L20 is a 17.0" diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation (hereafter called Chimei Innolux), with an integral WLED backlight system, without backlight driver, without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized in the following: WLED Backlight, Life ≥ 50K hours, Upside I/F, Matte , Rev.C1 15.61W, Rev.C2 10.8W, Rev.C3/C4 8.95W. Based on its features, XIANHENG recommend that this model be applied to Desktop Monitor, Industrial etc.

If you want to embed the LCM in your future product, XIANHENG strongly recommend that you should contact with Chimei Innolux or XIANHENG to learn lateast production and specification detail of M170EGE-L20.

General Specification

Brand:  Chimei Innolux

Model:  M170EGE-L20

Diagonal Size:  17.0 inch

Type:  a-Si TFT-LCD, LCM

Pixel Format:  1280(RGB)×1024   [SXGA]

Configuration:  RGB Vertical Stripe

Active Area:  337.92(H)×270.336(V) mm

Outline Dim.:  358.5(H)×296.5(V) ×11(D) mm

Bezel Area:  341.9(H)×274.4(V) mm

Treatment:  Antiglare (Haze 25%), Hard coating (3H)

Luminance:  250 cd/m² (Typ.)

Contrast Ratio:  1000:1 (Typ.) (TM)

View Direction:  6 o'clock

Response Time:  1/4 (Typ.)(Tr/Td)

Viewing Angle:  85/85/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode:  TN, Normally White, Transmissive

Support Color:  16.7M   72% NTSC

Light Source:  WLED  [12S4P] , 50K hours , W/O Driver

Weight:  1.40/1.50Kgs (Typ./Max.)

Designed For:  Desktop Monitor Industrial

Frame Rate:  60Hz

Touch Panel:  Without

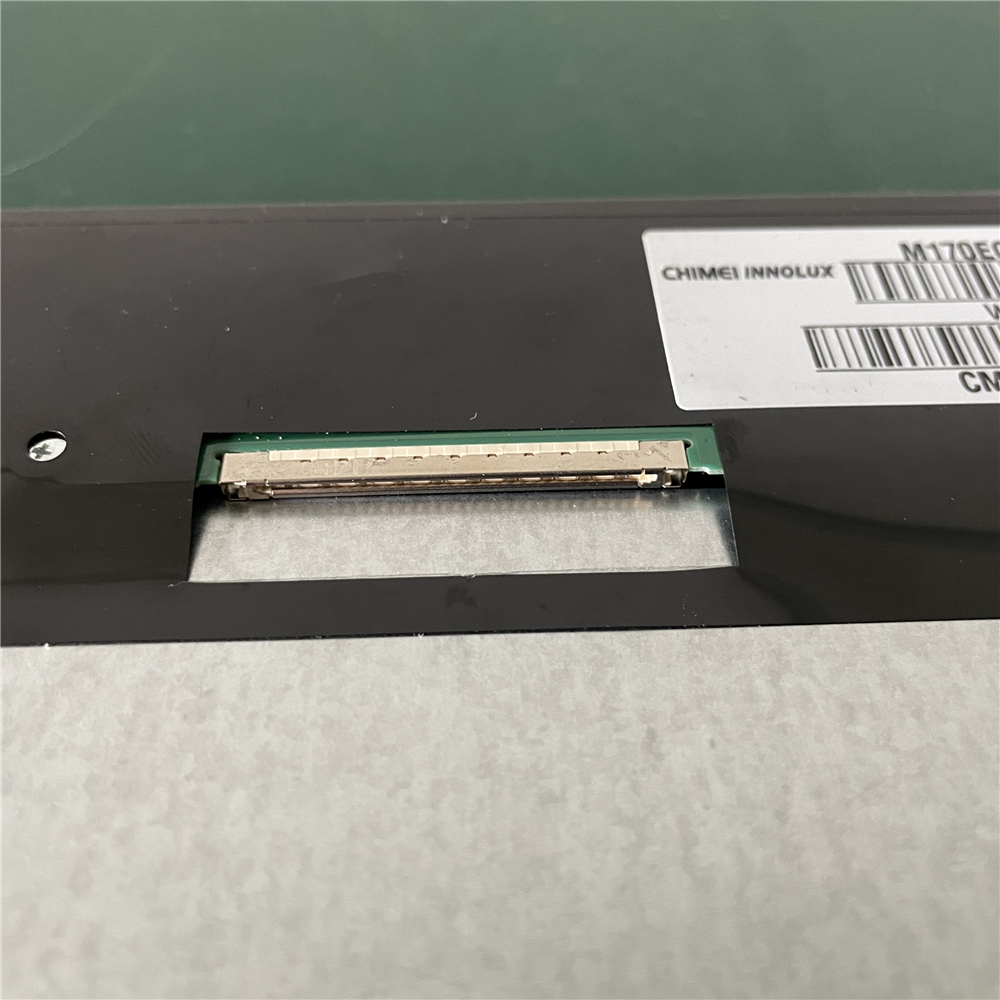

Interface Type:  LVDS (2 ch, 8-bit) , 30 pins Connector

Power Supply:  5.0V (Typ.)

Environment:  Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
