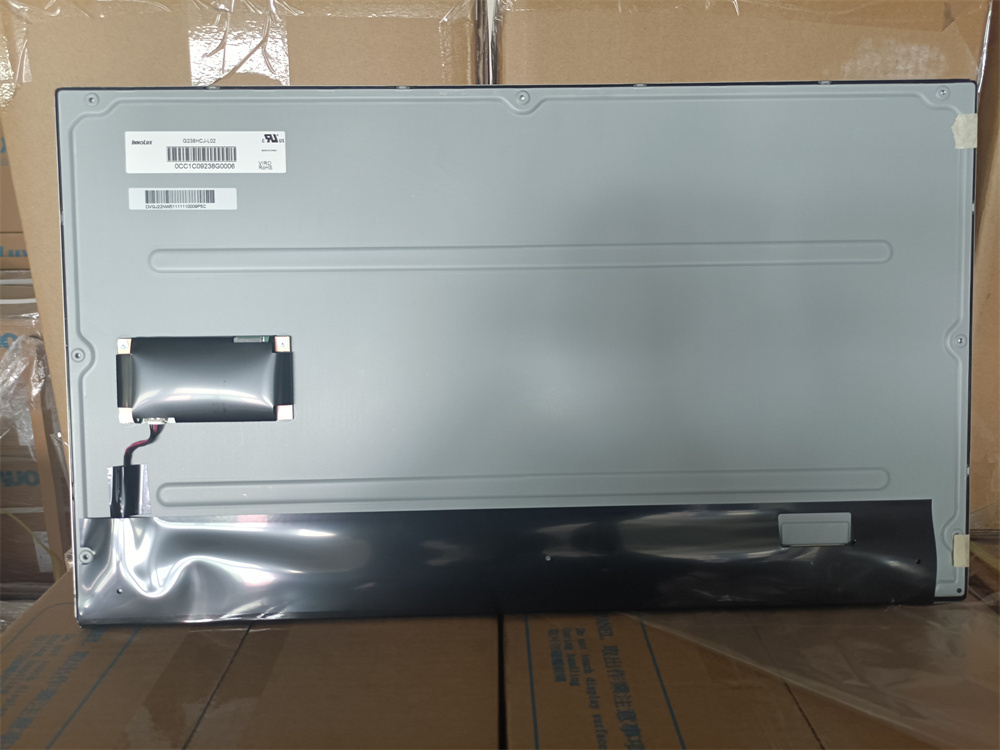

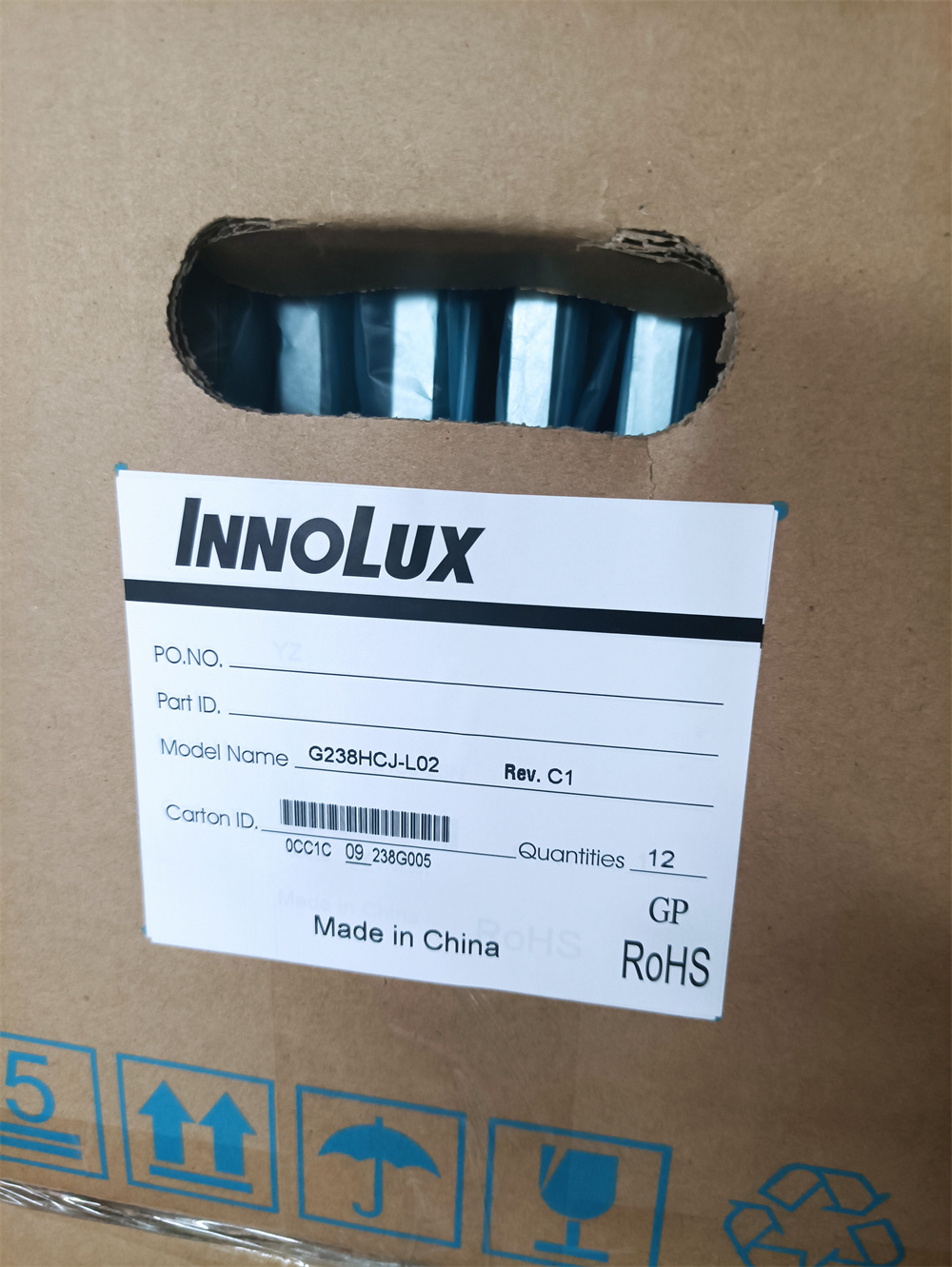

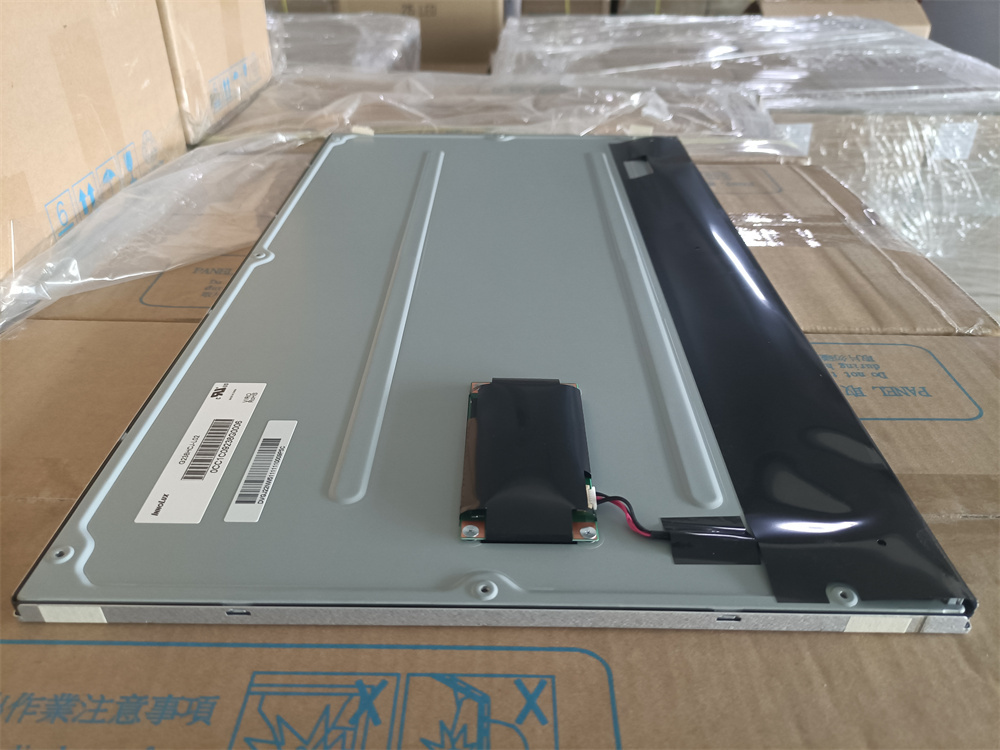

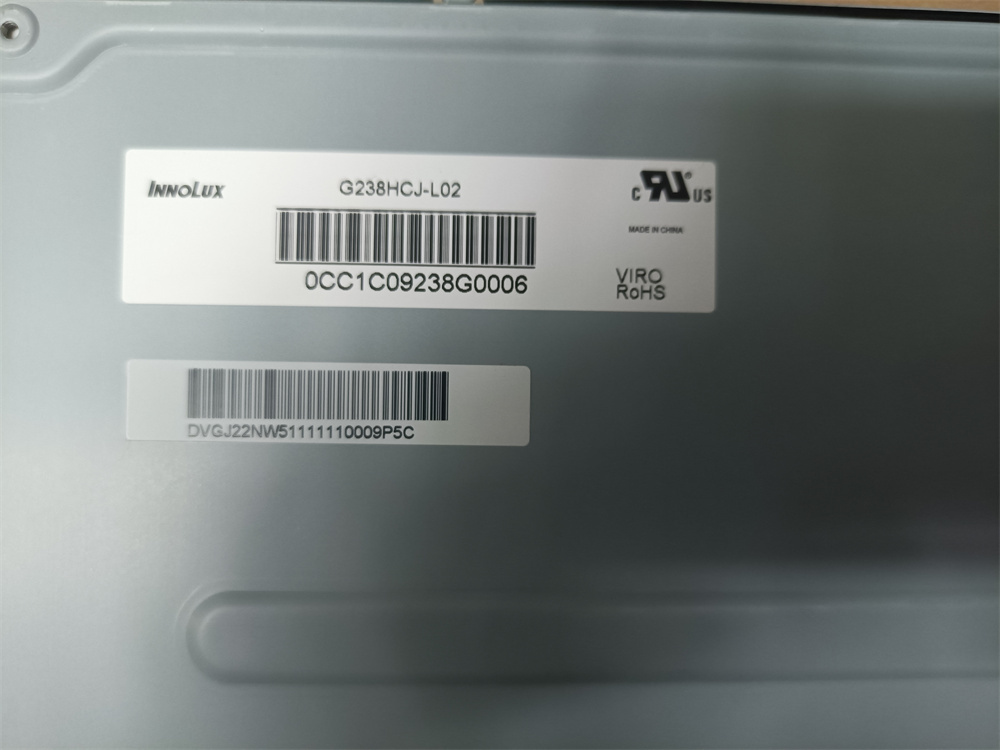

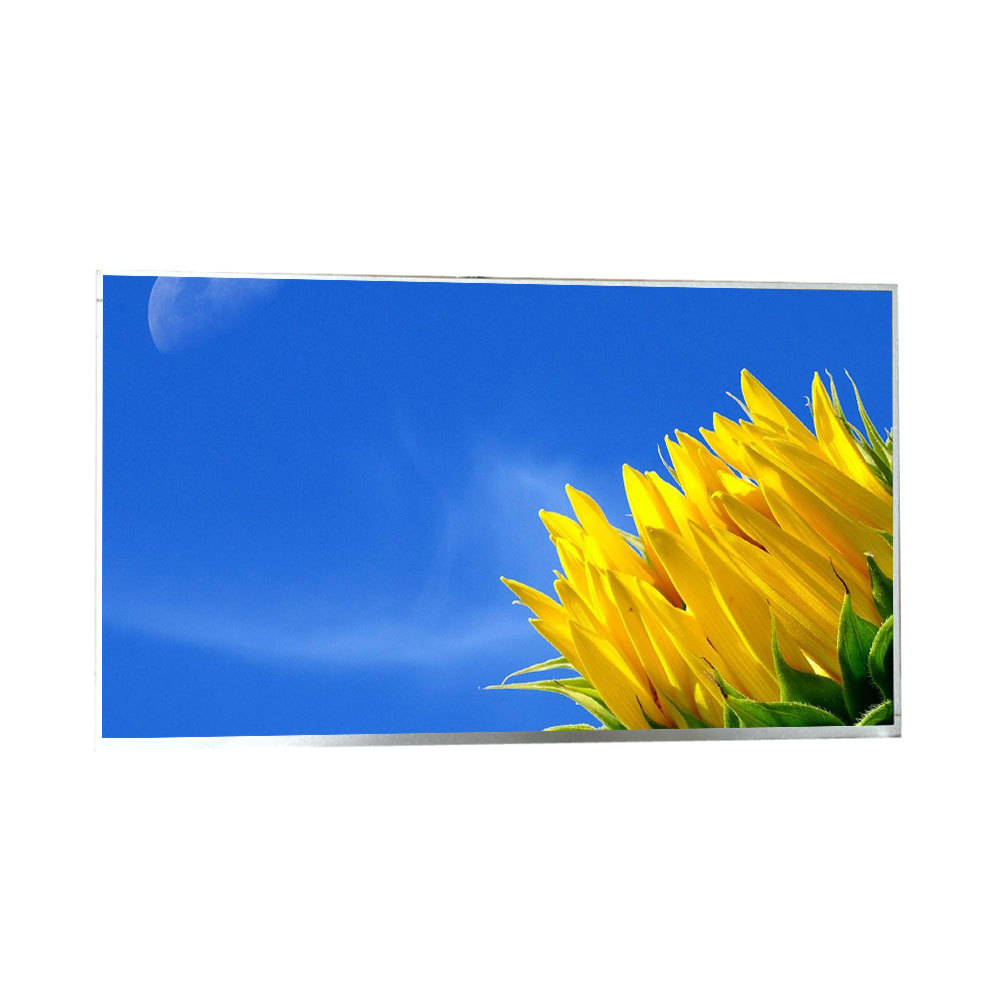

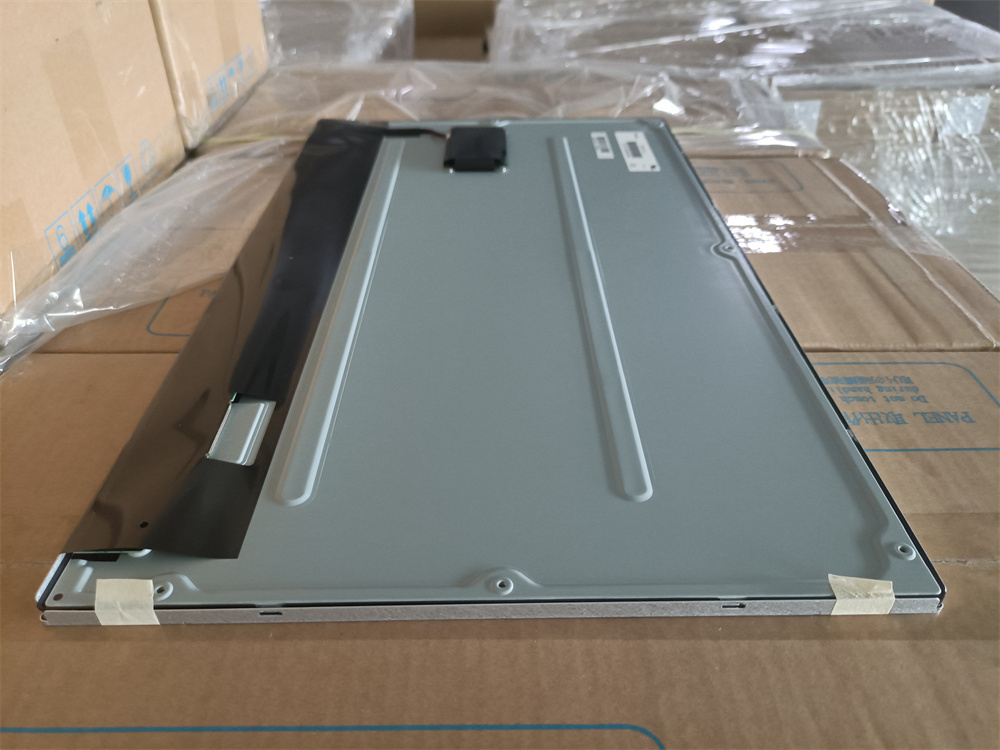

G238HCJ-L02 INNOLUX 23.8 inch industrial LCD display module

Item No.: G238HCJ-L02
G238HCJ-L02 is a 23.8" diagonal a-Si TFT-LCD display panel product from Innolux Corporation with an integral WLED backlight system, With LED Driver , without touch screen.
Description Review
Description

G238HCJ-L02 is a 23.8" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen.

It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: sRGB, WLED Backlight, With LED Driver, Matte , TCO 7.0 compliance. Based on its features,we recommend that this model be applied to Industrial etc.

If you want to embed the LCM in your future product, we strongly recommend that you should contact with Innolux or XIANHENG TECH to learn lateast production and specification detail of G238HCJ-L02.

General Specification

Brand: Innolux

Model: G238HCJ-L02

Diagonal Size: 23.8 inch

Type: a-Si TFT-LCD, LCM

Pixel Format: 1920(RGB)×1080  [FHD]  92PPI

Configuration: RGB Vertical Stripe

Active Area: 527.04(H)×296.46(V) mm

Outline Dim.: 540.24(H)×315.66(V) ×11.95(D) mm

Bezel Area: 530.2(H)×299.6(V) mm

Treatment: Antiglare (Haze 25%), Hard coating (3H)

Luminance: 450 cd/m² (Typ.)

Contrast Ratio: 1000:1 (Typ.) (TM)

View Direction: Symmetry

Response Time: 8/7 (Typ.)(Tr/Td)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode: AAS, Normally Black, Transmissive

Support Color: 16.7M   74% NTSC

Light Source: WLED , 30K hours , With LED Driver

Weight: 2.71Kgs (Typ.)

Designed For: Industrial

Frame Rate: 60Hz

Touch Panel: Without

Interface Type: LVDS (2 ch, 8-bit) , 30 pins Connector

Power Supply: 5.0±0.5V

Environment: Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C
