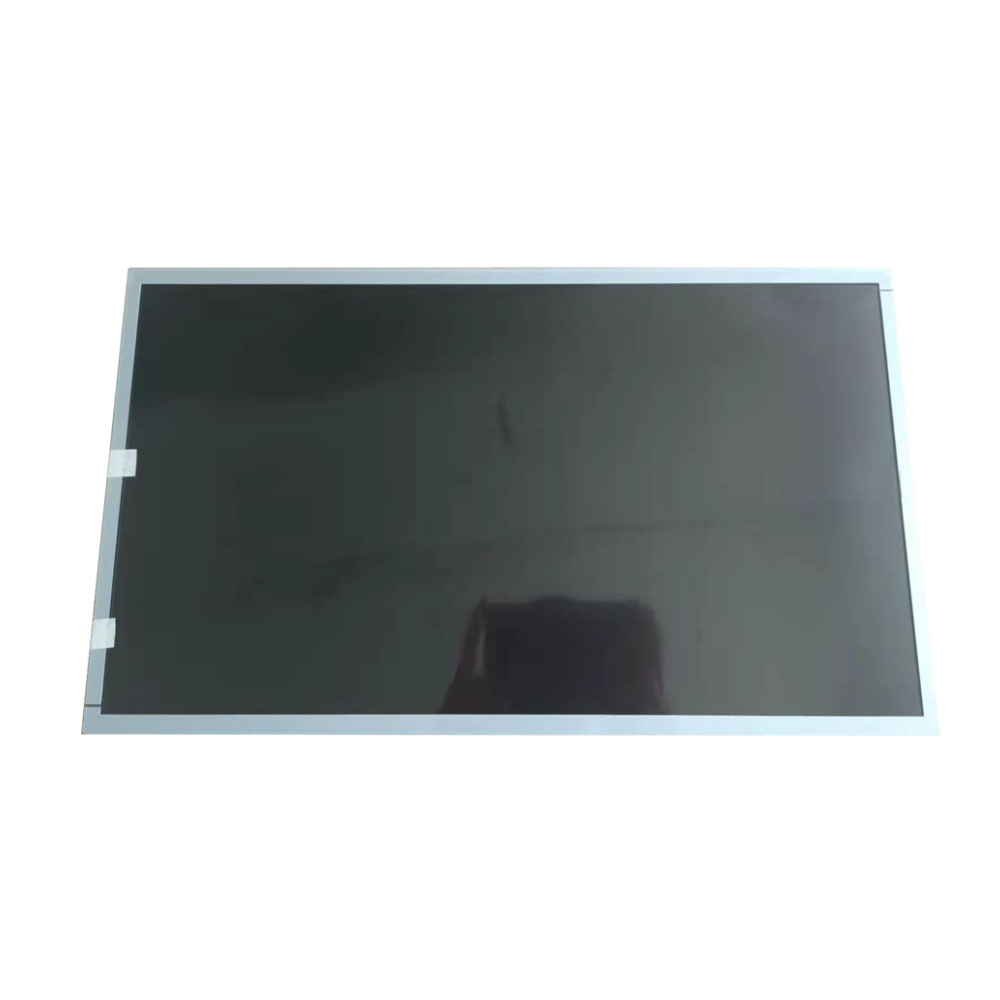

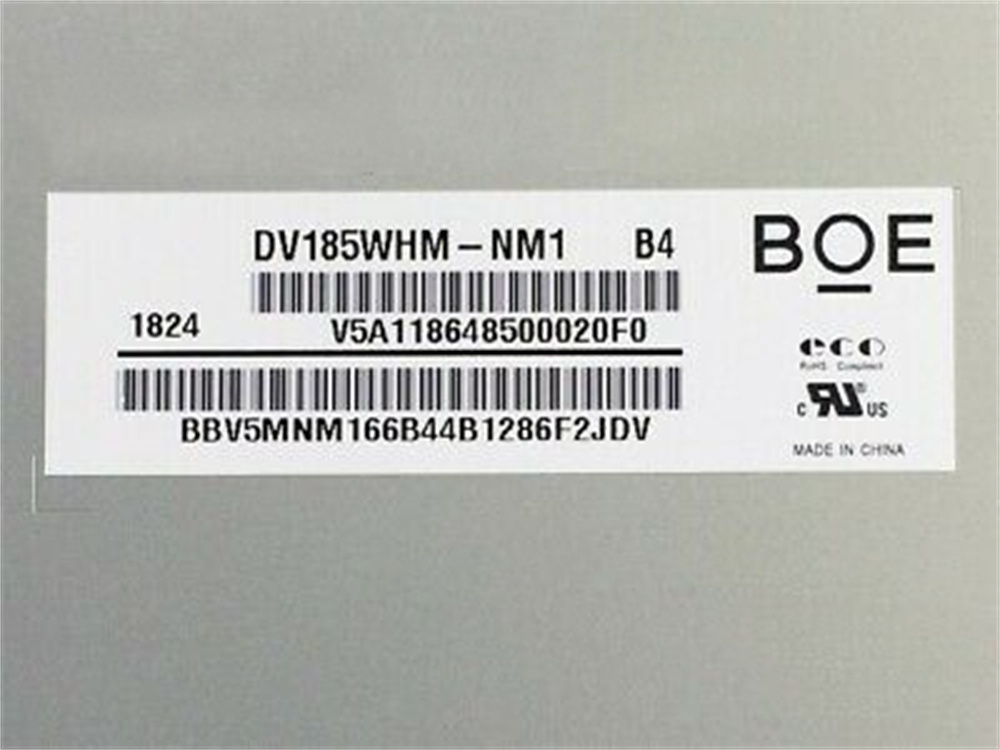

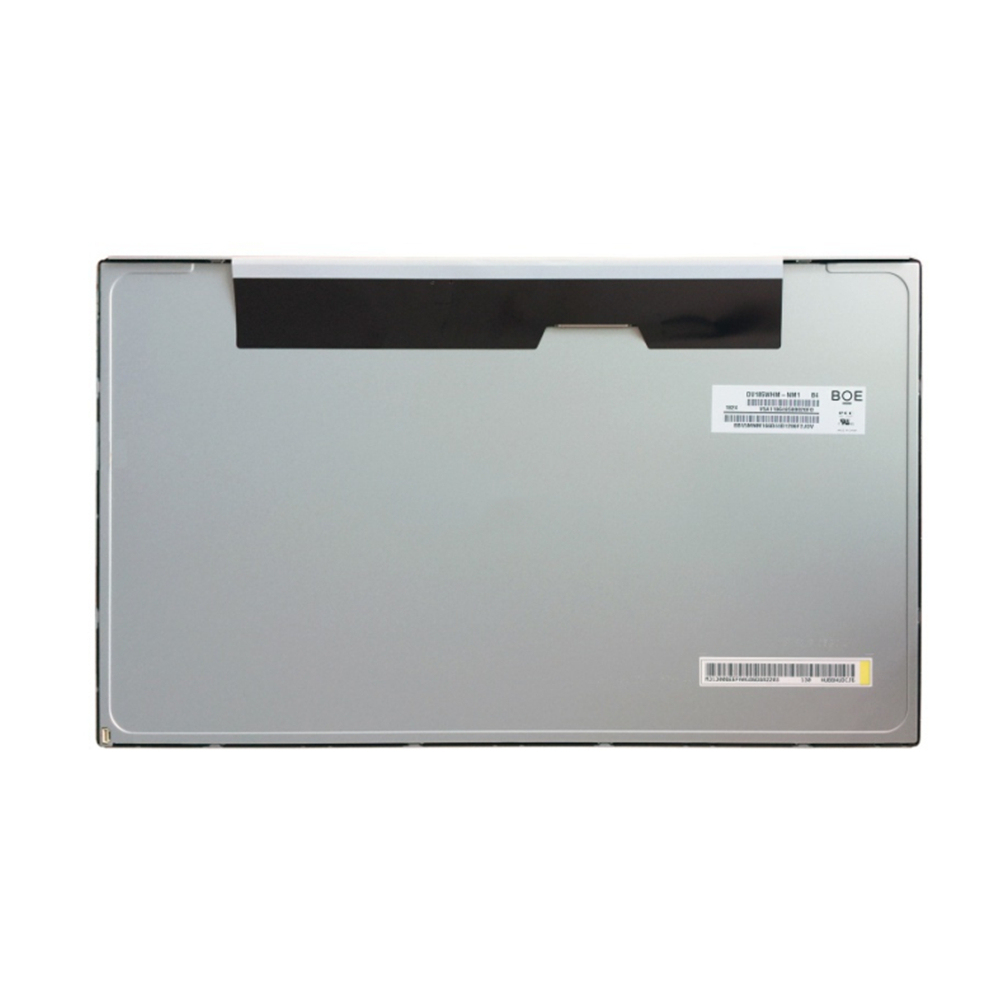

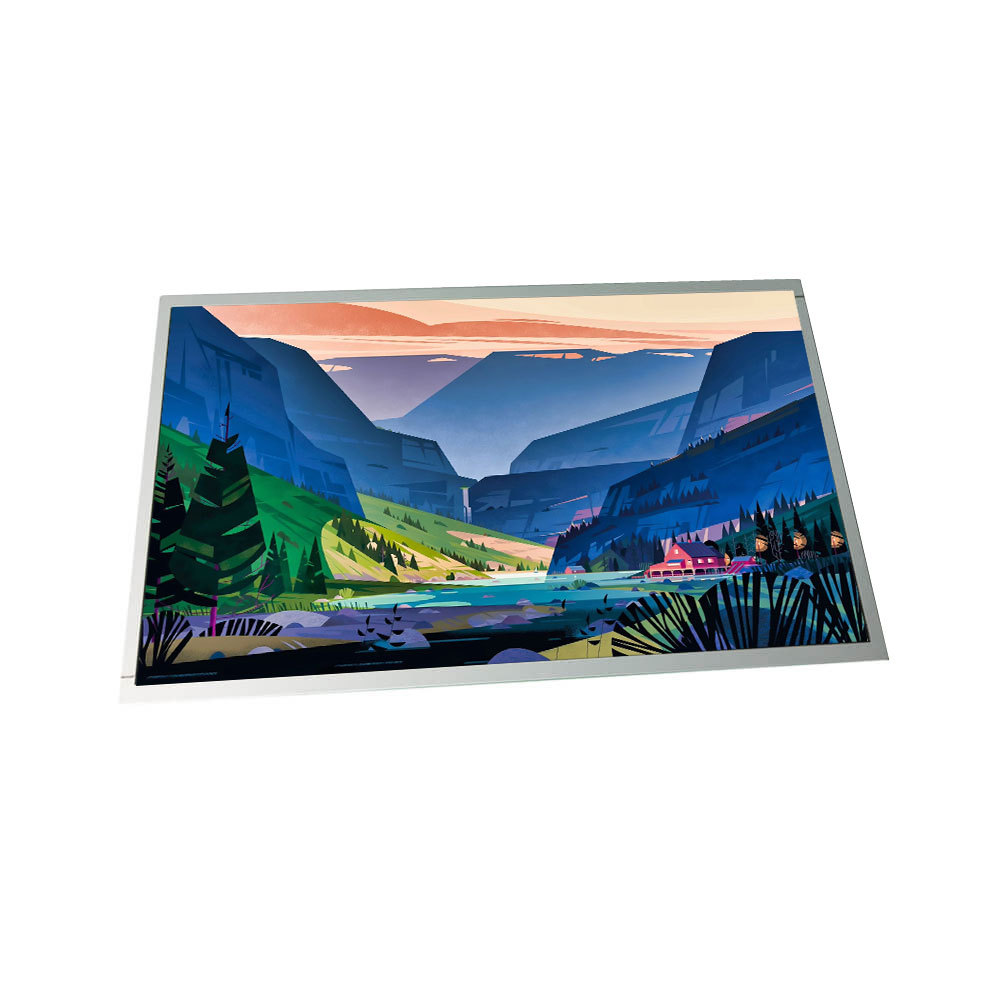

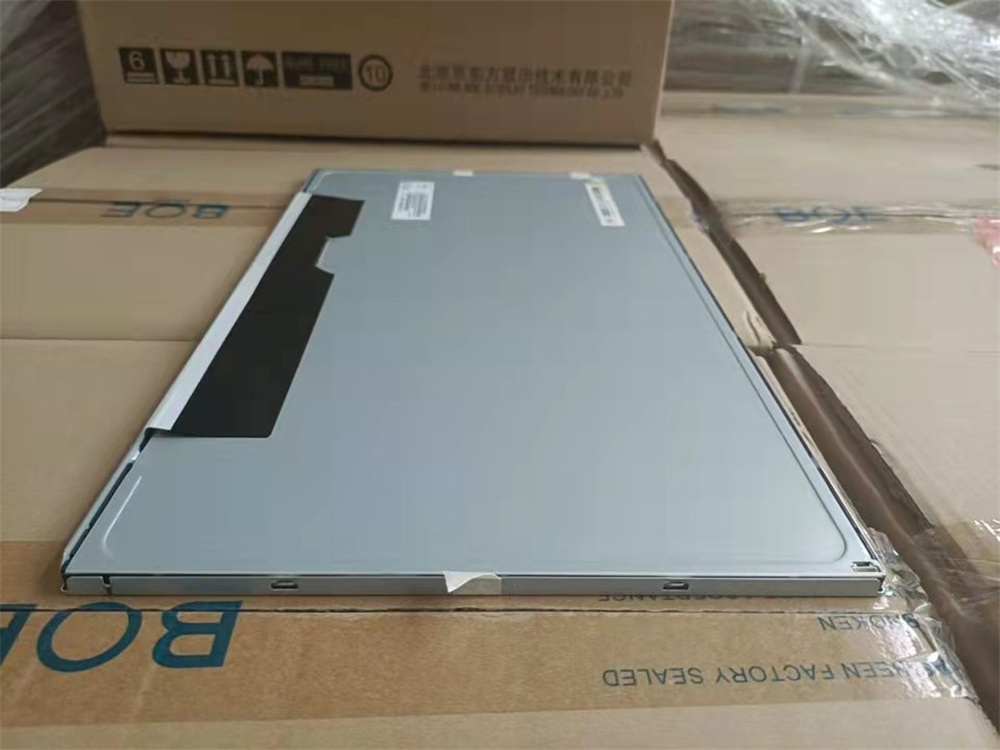

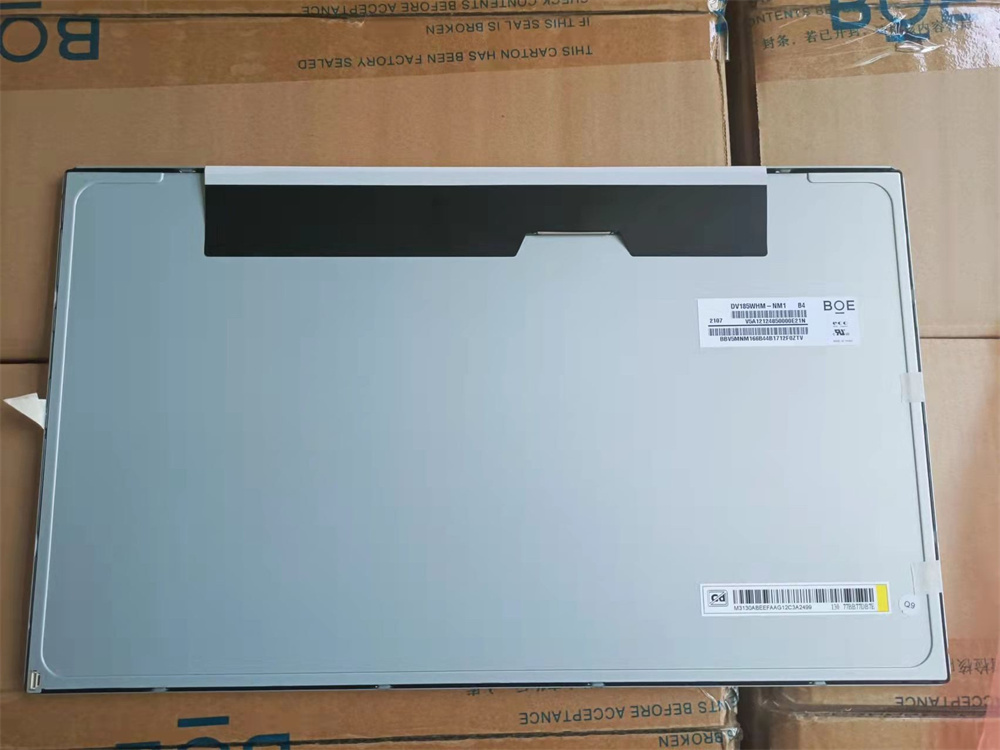

DV185WHM-NM1 BOE 18.5 inch lcd display

Item No.: DV185WHM-NM1
BOE DV185WHM-NM1 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 18.5inch diagonally measured active area with WXGA resolutions 1366*768.
Description Review
Description

New 18.5 inches BOE DV185WHM-NM1 LCD module with HD resolution 1920x1080 for elevator ad display

BOE DV185WHM-NM1 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 18.5inch diagonally measured active area with WXGA resolutions 1366*768. Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

According to the BOE product specification, the DV185WHM-NM1 display resolution is 1366 (RGB) × 768 (WXGA), the aspect ratio is 16:9 (width: height), and the pixels are arranged in RGB vertical stripes. Its display area size is 409.8 × 230.4 (W × H) mm, visual size is 413.4 × 234.0 (W × H) mm, appearance size is 430.4 × 254.6 (W × H) × 11.4 (T) mm, surface treatment is Haze 25%, Hard coating (3H), product net weight 1.30Kgs (Typ.). In the aspect of backlight, this product uses 6S4P WLED side-in light source (right). The service life of the light source is 30K hours, without backlight drive. DV185WHM-NM1 uses LVDS (1 ch, 8-bit) signal interface, a total of 30 pins, using terminal connection, drive screen voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz. No touch. If you want to develop a new product using DV185WHM-NM1 LCD module, we recommend that you contact BOE or XIANHENG TECH for the latest production status and technical information about DV185WHM-NM1.
 Features
LVDS Interface with 1pixel / clock
High-speed response
6-bit(Hi-FRC) color depth, display 16. 7M colors
Incorporated edge type back-light (One Light Bar)
High luminance and contrast ratio, low reflection and normal viewing angle
DE (Data Enable) only
ES 6.0 compliant
RoHS
Gamma Correction

  Application
Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller


 General Specification
Panel Brand:     BOE
Panel Model:     DV185WHM-NM1
Panel Size    :     18.5 inch
Panel Type:     a-Si TFT-LCD , LCM
Resolution:     1366(RGB)×768, WXGA, 84PPI
Pixel Format:     RGB Vertical Stripe
Surface:     Antiglare (Haze 25%), Hard coating (3H)
Brightness:     250 cd/m² (Typ.)
Contrast Ratio:     1000:1 (Typ.) (TM)
Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Best View on:     Symmetry
Response Time:     14 (Typ.)(G to G)
Display Colors:     16.7M   72% (CIE1931)
Lamp Type:     6S4P WLED , 30K hours , Without Driver
Frequency:     60Hz
Touch Screen:     Without
Panel Weight:     1.30Kgs (Typ.)
Application:     Digital Signage
Signal Interface:     LVDS (1 ch, 8-bit) , 30 pins , Connector
Input Voltage:     5.0V (Typ.)
Environment:     Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
