Touch Monitor

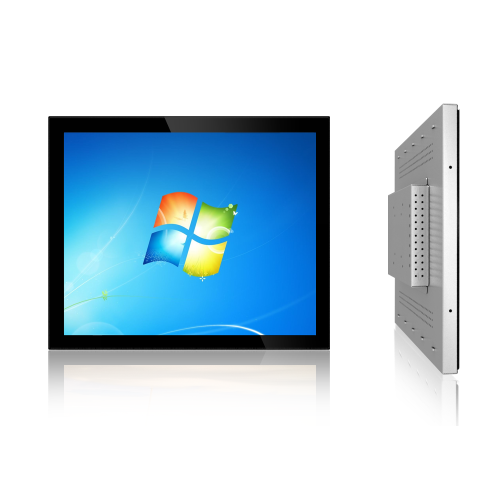

17 inch open frame touch monitor
Item No.: XH170
17 inch open frame touch monitor is designed for OEM and system integrators , which is the best cost-benefit touch display solutions and can be used in the retail, self-service and game entertainment.
Description
17 inch open frame touch monitor is designed for OEM and system integrators , which is the best cost-benefit touch display solutions and can be used in the retail, self-service and game entertainment.
17 inch open frame touch monitor used the high brightness industrial-grade wide-angle color TFT LCD panel, can better attract the user's attention. while used the advanced imaging technology and capacitive touch (projection-type explosion-proof capacitive screen) technology can play the best touch interactive effect. The model with a sophisticated small-frame design can be dustproof & seal on the touch screen. It’s the best touch solutions for indoor and outdoor applications, can support a variety of installation methods, RS232 and USB interface. Besides, the model through a number of safety certification.
◆ LCD Panel ◆
VESA Mount 75x75 mm/100x100 mm
Gross weight 4.9Kg single/9.8Kg double
Packing size 488.0x410.0x188.0 mm
Net weight 4.4 Kg
Monitor Dimension 380.2x312.2x47.5 mm
17 inch open frame touch monitor used the high brightness industrial-grade wide-angle color TFT LCD panel, can better attract the user's attention. while used the advanced imaging technology and capacitive touch (projection-type explosion-proof capacitive screen) technology can play the best touch interactive effect. The model with a sophisticated small-frame design can be dustproof & seal on the touch screen. It’s the best touch solutions for indoor and outdoor applications, can support a variety of installation methods, RS232 and USB interface. Besides, the model through a number of safety certification.
Features
♦ A variety of screen sizes available
♦ With quality assurance and competitive price
♦ Full-Plane PCT Projected Capacitive Touch Screen Technology
♦ Good structural design, dustproof, waterproof
♦ Explosion-proof panel, full-screen can be customized
♦ Touch control two-headed controller：USB/RS232
♦ Video signal support VGA/DVI
♦ A variety of installation methods：Up, down, left or right side locks，back VESA keyhole mounting
♦ OEM/ODM welcome
♦ A variety of screen sizes available
♦ With quality assurance and competitive price
♦ Full-Plane PCT Projected Capacitive Touch Screen Technology
♦ Good structural design, dustproof, waterproof
♦ Explosion-proof panel, full-screen can be customized
♦ Touch control two-headed controller：USB/RS232
♦ Video signal support VGA/DVI
♦ A variety of installation methods：Up, down, left or right side locks，back VESA keyhole mounting
♦ OEM/ODM welcome
17 inch open frame touch monitor
◆ LCD Panel ◆
VESA Mount 75x75 mm/100x100 mm
Gross weight 4.9Kg single/9.8Kg double
Packing size 488.0x410.0x188.0 mm
Net weight 4.4 Kg
Monitor Dimension 380.2x312.2x47.5 mm
◆ Mechanical parameters ◆
Support system Windows XP/7/8/10
Working temperature -10℃ ～ +65℃
Audio output power 2x1W(8Ω)
OSD language Simplified Chinese, Traditional Chinese, English, French, German、Italian, Spanish, Portuguese, Japanese、Korean
OSD control Menu，automatic，left，right select，power supply
Audio interface Audio In/Earphone Out
Power supply +12V
Resolution 2048*1152
LCD interface Single/Double LVDS interface
Video interface VGA/DVI-I/(VGA+HDMI+DVI)
Item Specification
Working temperature -10℃ ～ +65℃
Audio output power 2x1W(8Ω)
OSD language Simplified Chinese, Traditional Chinese, English, French, German、Italian, Spanish, Portuguese, Japanese、Korean
OSD control Menu，automatic，left，right select，power supply
Audio interface Audio In/Earphone Out
Power supply +12V
Resolution 2048*1152
LCD interface Single/Double LVDS interface
Video interface VGA/DVI-I/(VGA+HDMI+DVI)
Item Specification
◆ AD board ◆
Antistatic contact discharge 4KV
Antistatic air discharge 8KV
Read speed 10PT:80Hz
Working frequency Max,100MHz
Oscillation frequency 12MHz
Response time <10ms
Power consumption Active Mode<30ma; Idle Mode:5mA<30MA
Voltage 3.3VDC
Touch points Max,10 points
Resolution 4096x4096
Use life >300，000，000 times
Linearity ±1mm
Humidity 90% at 60℃
Storage temperature -20℃ ～ +80℃
Working temperature -10℃ ～ +65℃
Light transmittance >85%
Surface hardness 6H
External dimensions 380.2x312.2x3 mm
Item Specification
Antistatic air discharge 8KV
Read speed 10PT:80Hz
Working frequency Max,100MHz
Oscillation frequency 12MHz
Response time <10ms
Power consumption Active Mode<30ma; Idle Mode:5mA<30MA
Voltage 3.3VDC
Touch points Max,10 points
Resolution 4096x4096
Use life >300，000，000 times
Linearity ±1mm
Humidity 90% at 60℃
Storage temperature -20℃ ～ +80℃
Working temperature -10℃ ～ +65℃
Light transmittance >85%
Surface hardness 6H
External dimensions 380.2x312.2x3 mm
Item Specification
◆ Capacitive touch screen ◆
Power 3.0/3.6W(Typ./Max.)
Current 0.6/0.72A(Typ./Max.)
Voltage 5.0V(Typ.)
Working temperature 0℃ ～ +60℃
Inversion scanning NO
Scanning frequency 60Hz
White field changes 1.25/1.33(Typ./Max.)(9 points)
Best View 6 o’clock
Viewing angle 85/85/80/80(Typ.)(CR≥10)( left/right/up/down)
Response time 3.8/1.2(Typ.)(Tr/Td)(ms)
Display color 16.7M (6-bit + Hi-FRC)
Contrast ratio 1000:1（Typ.）(transmission)
Brightness 250 cd/m²（Typ.）
Display mode TN, often white display, transmission
External dimension 341.72x274.14 mm
Display area 337.92x270.336 mm
Surface treatment Matte surface, Hard coating(3H)
Pixel pitch 0.264x0.264 mm
Point spacing 0.088x0.264 mm
Ratio 5:04
Pixel permutation RGB vertical strips
Pixel density 96PPI
Resolution 1280(RGB)x1024(FHD)
Size 17.0 inch
Type a-Si TFT-LCD，LCD panel
Item Specification
Current 0.6/0.72A(Typ./Max.)
Voltage 5.0V(Typ.)
Working temperature 0℃ ～ +60℃
Inversion scanning NO
Scanning frequency 60Hz
White field changes 1.25/1.33(Typ./Max.)(9 points)
Best View 6 o’clock
Viewing angle 85/85/80/80(Typ.)(CR≥10)( left/right/up/down)
Response time 3.8/1.2(Typ.)(Tr/Td)(ms)
Display color 16.7M (6-bit + Hi-FRC)
Contrast ratio 1000:1（Typ.）(transmission)
Brightness 250 cd/m²（Typ.）
Display mode TN, often white display, transmission
External dimension 341.72x274.14 mm
Display area 337.92x270.336 mm
Surface treatment Matte surface, Hard coating(3H)
Pixel pitch 0.264x0.264 mm
Point spacing 0.088x0.264 mm
Ratio 5:04
Pixel permutation RGB vertical strips
Pixel density 96PPI
Resolution 1280(RGB)x1024(FHD)
Size 17.0 inch
Type a-Si TFT-LCD，LCD panel
Item Specification
