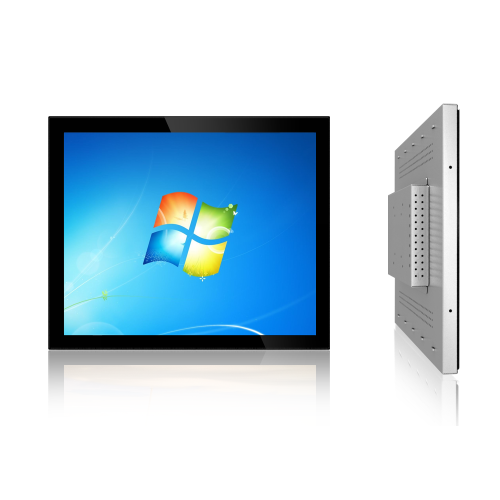

19 inch open frame touch monitor

Item No.: XH190
19 inch open frame touch monitor is designed for OEM and system integrators , which is the best cost-benefit touch display solutions and can be used in the retail, self-service and game entertainment.
Description Review
Description
19 inch open frame touch monitor is designed for OEM and system integrators , which is the best cost-benefit touch display solutions and can be used in the retail, self-service and game entertainment.

19 inch open frame touch monitor used the high brightness industrial-grade wide-angle color TFT LCD panel, can better attract the user's attention. while used the advanced imaging technology and capacitive touch (projection-type explosion-proof capacitive screen) technology can play the best touch interactive effect. The model with a sophisticated small-frame design can be dustproof & seal on the touch screen. It’s the best touch solutions for indoor and outdoor applications, can support a variety of installation methods, RS232 and USB interface. Besides, the model through a number of safety certification.

 Features

OEM/ODM welcome
A variety of installation methods:Up, down, left or right side locks,back VESA keyhole mounting
Video signal support VGA/DVI
Touch control two-headed controller:USB/RS232
Explosion-proof panel, full-screen can be customized
Good structural design, dustproof, waterproof
Full-Plane PCT Projected Capacitive Touch Screen Technology
With quality assurance and competitive price
A variety of screen sizes available

 ◆ LCD Panel ◆

Item    Specification
Type    a-Si TFT-LCD,LCD panel
Size    19.0 inch
Resolution    1280(RGB)x1024(SXGA)
Pixel density    86PPI
Pixel permutation    RGB vertical strips
Ratio    5:04
Point spacing    0.0976x0.2928 mm
Pixel pitch    0.2928x0.2928 mm
Surface treatment    Matte surface (Haze 25%),Hard coating(3H)
Display area    374.784x299.827 mm
External dimension    378.8x303.0 mm
Display mode    ADS, often black display, transmission
Brightness    250 cd/m²(Typ.)
Contrast ratio    1000:1(Typ.)(transmission)
Display color    16.7M (6-bit + Hi-FRC)
Response time    8/8(Typ.)(Tr/Td);14(Typ.)(G to G)(ms)
Viewing angle    89/89/89/89(Typ.)(CR≥10)( left/right/up/down)
Best View    Full view
White field changes    1.33(Max.)(9 points)
Scanning frequency    60Hz
Inversion scanning    NO
Working temperature    0℃ ~ +60℃
Voltage    5.0V(Typ.)
Current    0.6/1.1A(Typ./Max.)
Power    3.0/5.5W(Typ./Max.)

 ◆ Capacitive touch screen ◆
External dimensions    421.0x346.0x1.1 mm
Surface hardness    6H
Light transmittance    >90%
Working temperature    -10℃ ~ +65℃
Storage temperature    -20℃ ~ +80℃
Humidity    90% at 60℃
Linearity    ±1mm
Use life    >300,000,000 times
Resolution    4096x4096
Touch points    Max,10 points
Voltage    3.3VDC
Power consumption    Active Mode<30ma;  Idle Mode:5mA<30MA
Response time    <10ms
Oscillation frequency    12MHz
Working frequency    Max,100MHz
Read speed    10PT:80Hz
Antistatic air discharge    8KV
Antistatic contact discharge    4KV

 ◆ AD board ◆
Item    Specification
Video interface    VGA/DVI-I(VGA/HDMI/DVI-1)
LCD interface    Single/Double LVDS interface
Resolution    2048*1152
Power supply    +12V
Audio interface    Audio In/Earphone Out
OSD control    Menu,automatic,left,right select,power supply
OSD language    Simplified Chinese, Traditional Chinese, English, French, German、Italian, Spanish, Portuguese, Japanese、Korean
Audio output power    2x1W(8Ω)
Working temperature    -10℃ ~ +65℃
Support system    Windows XP/7/8/10

 ◆ Mechanical parameters ◆
Monitor Dimension    428.1x354.8x47.5 mm
Net weight    5.5 Kg
Packing size    525.0x455.0x195.0 mm
Gross weight    6.1Kg single/12.2Kg double
VESA Mount    75x75 mm/100x100 mm
