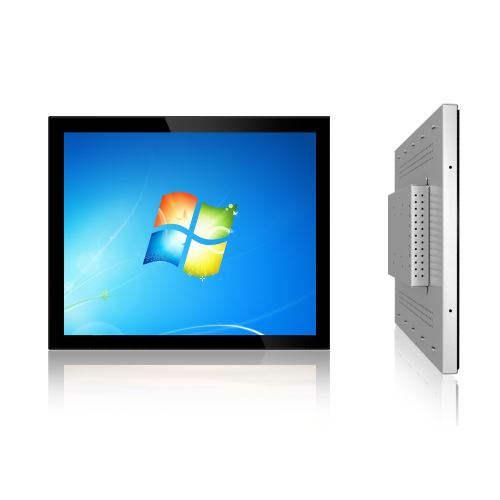

21.5 inch open frame touch monitor

Item No.: XH215
21.5 inch open frame touch monitor is designed for OEM and system integrators , which is the best cost-benefit touch display solutions and can be used in the retail, self-service and game entertainment.
Description Review
Description
21.5 inch open frame touch monitor is designed for OEM and system integrators , which is the best cost-benefit touch display solutions and can be used in the retail, self-service and game entertainment.

21.5 inch open frame touch monitor used the high brightness industrial-grade wide-angle color TFT LCD panel, can better attract the user's attention. while used the advanced imaging technology and capacitive touch (projection-type explosion-proof capacitive screen) technology can play the best touch interactive effect. The model with a sophisticated small-frame design can be dustproof & seal on the touch screen. It’s the best touch solutions for indoor and outdoor applications, can support a variety of installation methods, RS232 and USB interface. Besides, the model through a number of safety certification.


 ◆ Feature
A variety of screen sizes available
With quality assurance and competitive price
Full-Plane PCT Projected Capacitive Touch Screen Technology
Good structural design, dustproof, waterproof
Explosion-proof panel, full-screen can be customized
Touch control two-headed controller:USB/RS232
Video signal support VGA/DVI
A variety of installation methods:Up, down, left or right side locks,back VESA keyhole mounting
OEM/ODM welcome


 ◆ LCD Panel ◆
Item    Specification
Type    a-Si TFT-LCD,LCD panel
Size    21.5 inch
Resolution    1920(RGB)x1080(FHD)
Pixel density    102PPI
Pixel permutation    RGB vertical strips
Ratio    16:09
Point spacing    0.08275x0.24825 mm
Pixel pitch    0.24825x0.24825 mm
Surface treatment    Matte surface, Hard coating(3H)
Display area    476.64x268.11 mm
Display mode    VA, often black display, transmission
Brightness    250 cd/m²(Typ.)
Contrast ratio    3000:1(Typ.)(transmission)
Display color    16.7M (8-bit)
Response time    13/5(Typ.)(Tr/Td)(ms)
Viewing angle    89/89/89/89(Typ.)(CR≥10)(left/right/up/down)
Scanning frequency    60Hz
Inversion scanning    NO
Working temperature    0℃ ~ +65℃
Voltage    5.0V(Typ.)
Current    0.6/0.9A(Typ./Max.)
Power    3.0/4.5W(Typ./Max.)

 ◆ Capacitive touch screen ◆
Item    Specification
External dimensions    524x321.8x3 mm
Surface hardness    6H
Light transmittance    >85%
Working temperature    -10℃ ~ +65℃
Storage temperature    -20℃ ~ +80℃
Humidity    90% at 60℃
Linearity    ±1mm
Use life    >300,000,000 times
Resolution    4096x4096
Touch points    Max,10 points
Working Voltage    3.3VDC
Power consumption    Active Mode<30ma;  Idle Mode:5mA<30MA
Response time    <10ms
Oscillation frequency    12MHz
Working frequency    Max,100MHz
Read speed    10PT:80Hz
Antistatic air discharge    8KV
Antistatic contact discharge    4KV

 ◆ AD board ◆
Item    Specification
Video interface    VGA/DVI-I(VGA/HDMI/DVI-1)
LCD interface    Single/Double LVDS interface
Resolution    2048*1152
Power supply    +12V
Audio interface    Audio In/Earphone Out
OSD control    Menu,automatic,left,right select,power supply
OSD language    Simplified Chinese, Traditional Chinese, English, French, German、Italian, Spanish, Portuguese, Japanese、Korean
Audio output power    2x1W(8Ω)
Working temperature    -10℃ ~ +65℃
Support system    Windows XP/7/8/10

 ◆ Mechanical parameter ◆
Monitor Dimension    526.4x322.3x46.5 mm
Net weight    5.96 Kg
Packing size ssizesizmeasurement    420.0x660.0x195.0 mm
Gross weight    6.2Kg single/12.1Kg double
VESA Mount    75x75 mm/100x100 mm VESA Mount
