M215HAN01.2 21.5 inch AUO tft LCD module display screen

No.M215HAN01.2

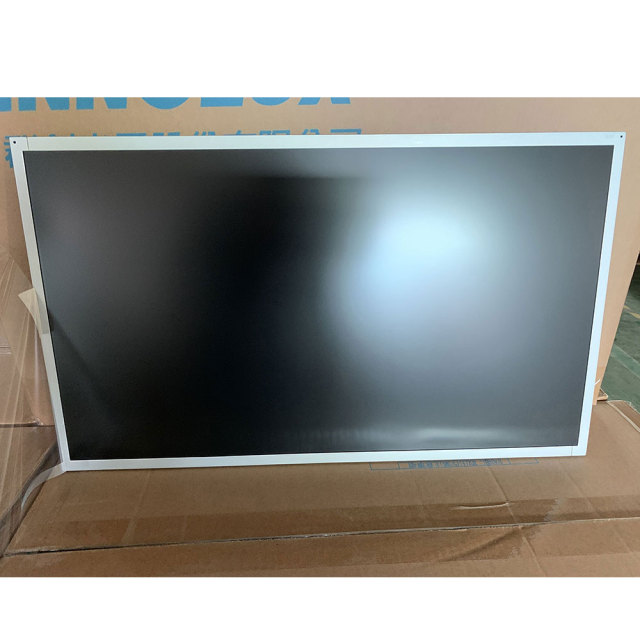

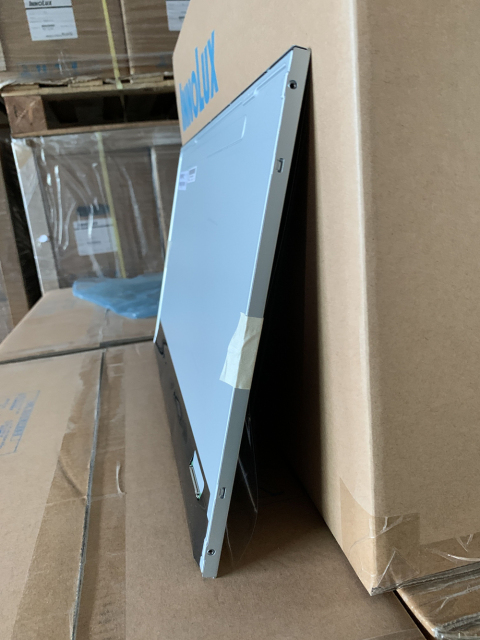

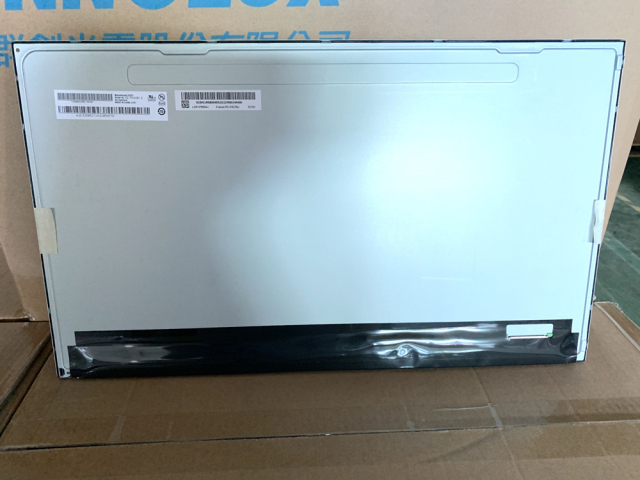

The M215HAN01.2 is a 21.5 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (AUO), with an integral WLED backlight system, without backlight driver, without touch screen.
  • M215HAN01.2 21.5 inch AUO tft LCD module display screen
  • M215HAN01.2 21.5 inch AUO tft LCD module display screen
  • M215HAN01.2 21.5 inch AUO tft LCD module display screen
  • M215HAN01.2 21.5 inch AUO tft LCD module display screen

Description

The M215HAN01.2 is a 21.5 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (AUO), with an integral WLED backlight system, without backlight driver, without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Panelook in the following: WLED Backlight, Reverse I/F, Matte , TCO 7.0 Compliance.

Based on its features, it's recommended that this model be applied to Desktop Monitor etc.

If you want to embed M215HAN01.2 LCM in your future product, we strongly recommend that you should contact with AUO or XIANHENG TECH to learn lateast production and specification details.


Brand AUO
Model M215HAN01.2
Diagonal Size 21.5 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1920(RGB)×1080  [FHD]  102PPI
Configuration RGB Vertical Stripe
Active Area 476.064(H)×267.786(V) mm
Outline Dim. 497.6(H)×292.2(V) ×11(D) mm
Bezel Area 479.8(H)×271.3(V) mm
Treatment Antiglare, Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry
Response Time 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode AHVA, Normally Black, Transmissive
Support Color 16.7M   72% NTSC
Light Source WLED  [12S4P] , 30K hours , W/O Driver
Weight 1.38Kgs (Typ.)
Designed For Desktop Monitor
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
