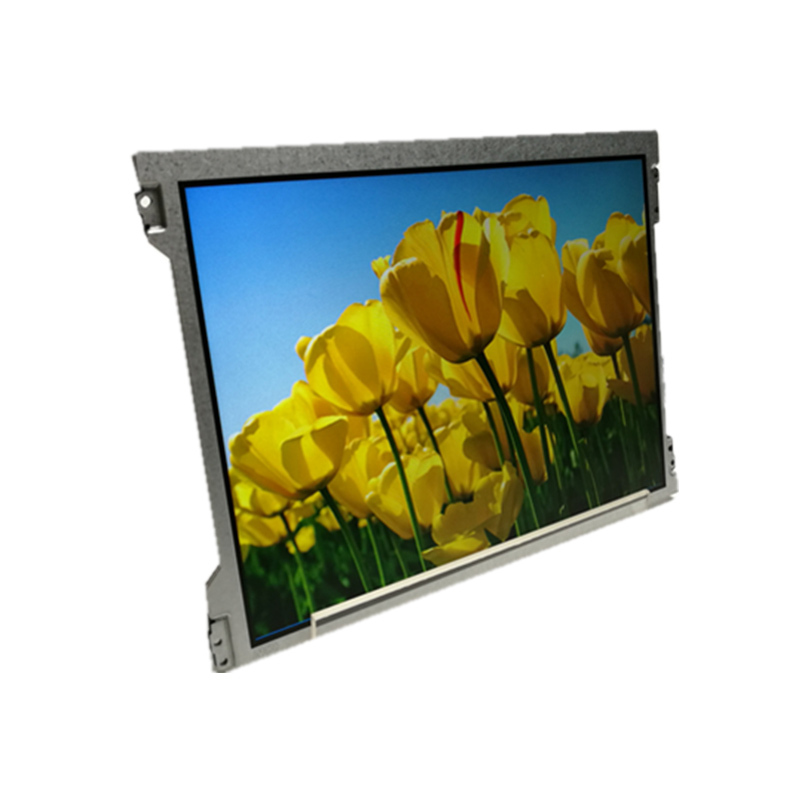

G121XN01 V0 12.1 inch AUO tft LCD module display screen

Item No.: G121XN01 V0
G121XN01 V0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

G121XN01 V0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

Panel Brand    AUO

Panel Size    12.1 inch

Panel Model    G121XN01 V0

Panel Type    a-Si TFT-LCD , LCM

Resolution    1024(2)×768(2) , XGA

Display Area    245.76(W)×184.32(H) mm

Outline Size    279(W)×209(H) ×9(D) mm

Brightness    500 cd/m² (Typ.)

Viewing Angle    80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

Display Colors    262K/16.2M   70% (CIE1931)

Frequency    60Hz

Weight    495g (Max.)

Pixel Format    RGBW Rectangle

Bezel Opening    250.8(W)×189.4(H) mm

Surface    Antiglare, Hard coating (3H)

Contrast Ratio    700:1 (Typ.) (TM)

Display Mode    TN, Normally White, Transmissive

Response Time    25/10 (Typ.)(Tr/Td)

Lamp Type    9S2P WLED , 50K hours , Embedded (LED Driver)

Touch Screen    Without

Application    Industrial Application

Signal Interface    LVDS (1 ch, 6/8-bit) , 20 pins , Connector

Input Voltage    3.3V (Typ.)

Environment    Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
