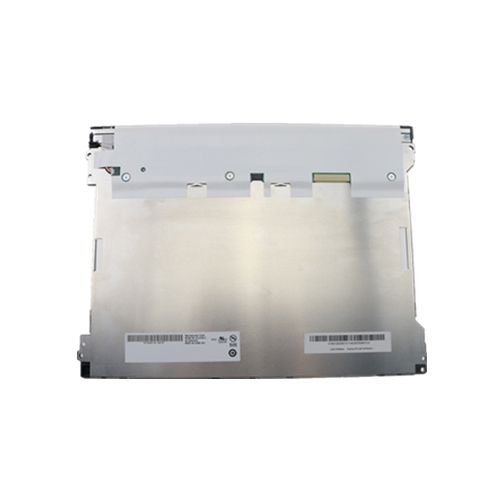

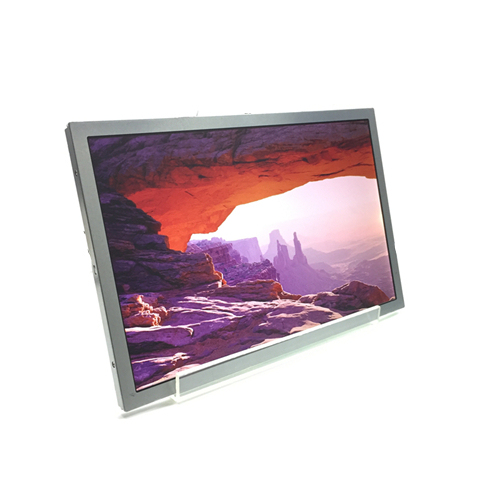

G121XTN01.0 12.1 inch AUO tft LCD module display screen

No.G121XTN01.0
G121XTN01.0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
  • G121XTN01.0 12.1 inch AUO tft LCD module display screen
  • G121XTN01.0 12.1 inch AUO tft LCD module display screen
  • G121XTN01.0 12.1 inch AUO tft LCD module display screen
  • G121XTN01.0 12.1 inch AUO tft LCD module display screen

Description

G121XTN01.0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.


Brand AUO
Diagonal Size 12.1 inch
Model G121XTN01.0
Type a-Si TFT-LCD , LCM
Pixel Format 1024(2)×768(2)   [XGA]
Active Area 245.76(H)×184.32(V) mm
Bezel Area 250.8(H)×188.4(V) mm
Luminance 500 cd/m² (Typ.)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Support Color 262K/16.2M   72% (CIE1931)
Weight 495g (Max.)
Frame Rate 60Hz
Configuration RGBW Rectangle
Outline Dim. 279(H)×209(V) ×9(D) mm
Treatment Antiglare, Hard coating (3H)
Contrast Ratio 700:1 (Typ.) (TM)
Response Time 25/10 (Typ.)(Tr/Td)
Operating Mode TN, Normally White, Transmissive
Light Source WLED  [6S3P] , 50K hours , Embedded (LED Driver)
Designed For Industrial Application
Touch Panel Without
Interface Type 20 pins   LVDS (1 ch, 6/8-bit) , Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
