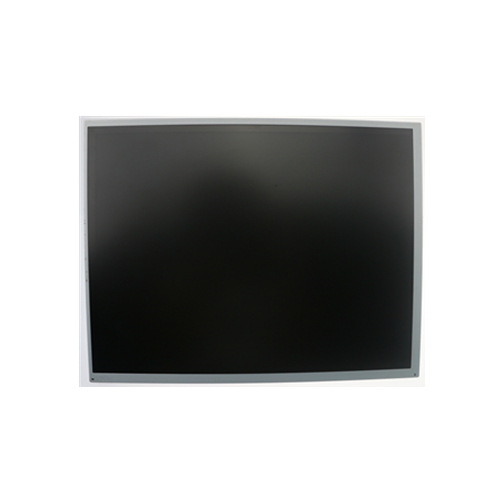

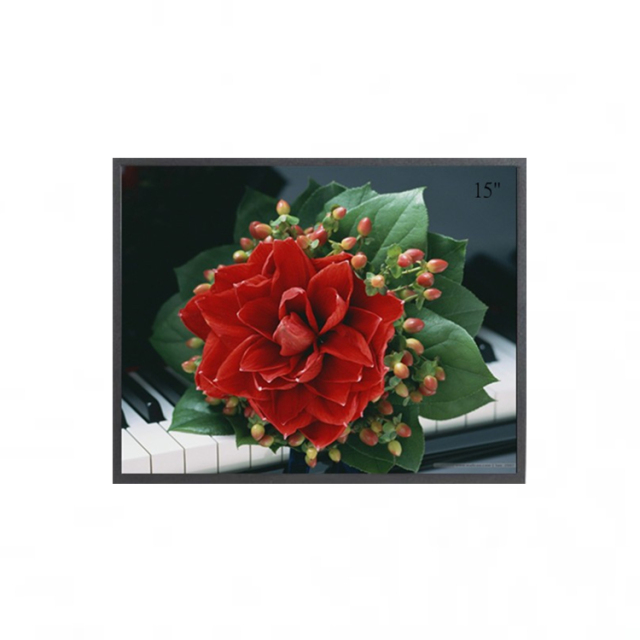

G150XG03 V3 15 inch AUO tft LCD module display screen

Item No.: G150XG03 V3
G150XG03 V3 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

G150XG03 V3 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

Panel Brand    AUO

Panel Model    G150XG03 V3

Panel Size    15.0 inch

Panel Type    a-Si TFT-LCD, LCM

Resolution    1024(RGB)×768 , XGA

Pixel Format    RGB Vertical Stripe

Display Area    304.128(W)×228.096(H) mm

Bezel Opening    313.55(W)×237.25(H) mm

Outline Size    326.5(W)×253.5(H) ×12(D) mm

Surface    Antiglare, Hard coating (3H)

Brightness    250 cd/m² (Typ.)

Contrast Ratio    700:1 (Typ.) (TM)

Viewing Angle    85/85/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode    TN, Normally White, Transmissive

Response Time    5.7/2.3 (Typ.)(Tr/Td)

Display Colors    262K/16.2M   60% (CIE1931)

Lamp Type    2 pcs CCFL , 30K hours , Without Driver

Frequency    60Hz

Touch Screen    Without

Panel Weight    1.10Kgs (Max.)

Application    Industrial Application

Signal Interface    LVDS (1 ch, 6/8-bit) ,20 pins,Connector

Input Voltage    3.3V (Typ.)

Environment    Operating Temp.: 0~65°C; Storage Temp.: -20~65°C
