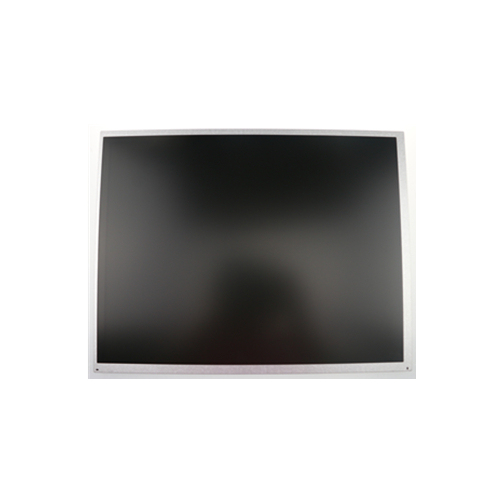

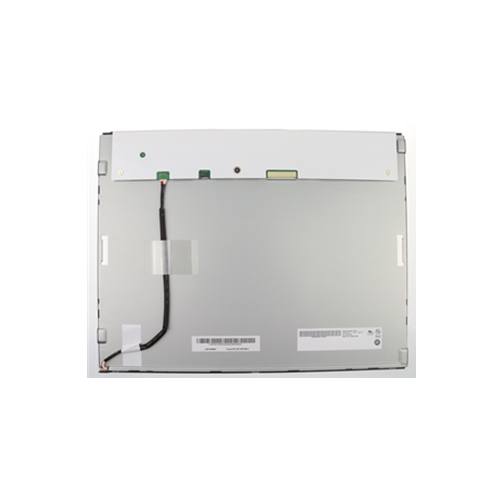

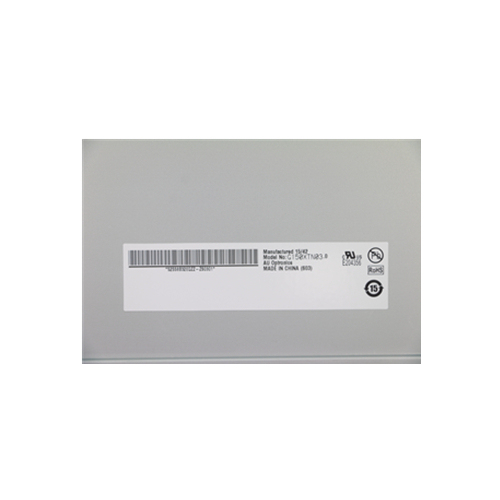

G150XTN03.0 15 inch AUO tft LCD module display screen

Item No.: G150XTN03.0
G150XTN03.0  is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

G150XTN03.0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

Manufacturer    AUO

Model Name    G150XTN03.0

Screen Size    15.0 inch

Screen Type    LCM ,   a-Si TFT-LCD

Pixel Number    1024(RGB)×768   (XGA)

Arrangement    RGB Vertical Stripe

Active Area(mm)    304.128 × 228.096 (H×V)

Outline(mm)    326.5 × 253.5 × 12 (H×V×D)

Bezel Area(mm)    313.55 × 237.25 (H×V)

Treatment    Antiglare, Hard coating (3H)

Luminance    350 cd/m² (Typ.)

Contrast Ratio    700 : 1 (Typ.) (TM)

Viewing Angle    85/85/80/80 (Typ.)(CR≥10) Left/Right/Up/Down

Response    5.7/2.3 (Typ.)(Tr/Td) ms

Work Mode    TN, Normally White, Transmissive

Color Depth    262K/16.2M   60% (CIE1931)

Backlight    WLED , 30K hours , Embedded (LED Driver)

Mass    1.20Kgs (Max.)

Used for    Industrial Application

Refresh Rate    60Hz

Touchscreen    Without

Signal Type    LVDS (1 ch, 6/8-bit) , Connector , 20 pins

Voltage Supply    3.3V (Typ.)

Max. Ratings    Storage Temp.: -20~65°C; Operating Temp.:0~65°C
