G150XTN06.0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

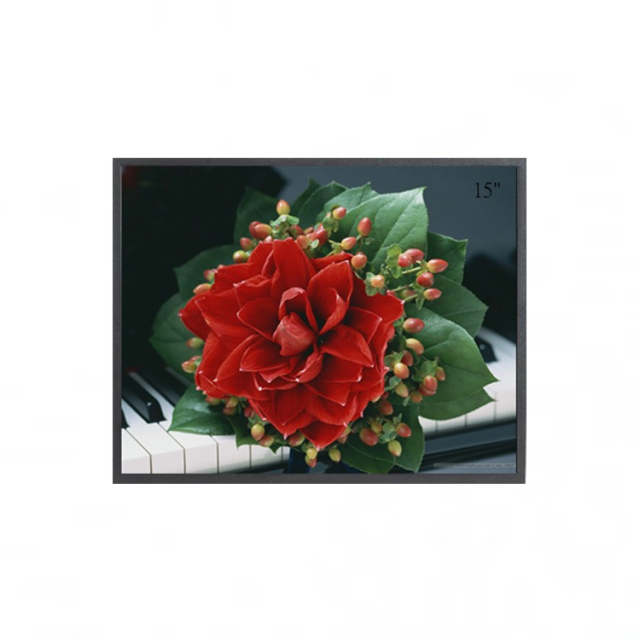

AU Optronics Corp. (hereafter called AUO) G150XTN06.0 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, 6/8 bit, Matte . Based on its features, we recommend that this model be applied to Industrial etc.
If you want to embed G150XTN06.0 LCM in your future product, we strongly recommend that you should contact with AUO or XIANHENG TECH to learn lateast production and specification detail.
| Manufacturer | AUO |
| Model Name | G150XTN06.0 |
| Screen Size | 15.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 304.128 × 228.096 (H×V) |
| Outline(mm) | 326.5 × 253.5 × 12.5 (H×V×D) |
| Bezel Area(mm) | 307.4 × 231.3 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) Left/Right/Up/Down |
| Response | 5.7/2.3 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.2M 60% (CIE1931) |
| Backlight | WLED , 70K hours , Embedded (LED Driver) |
| Mass | 1.00Kgs (Max.) |
| Used for | Industrial Application |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , Connector , 20 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30~85°C；Operating Temp.: -30~85°C |
