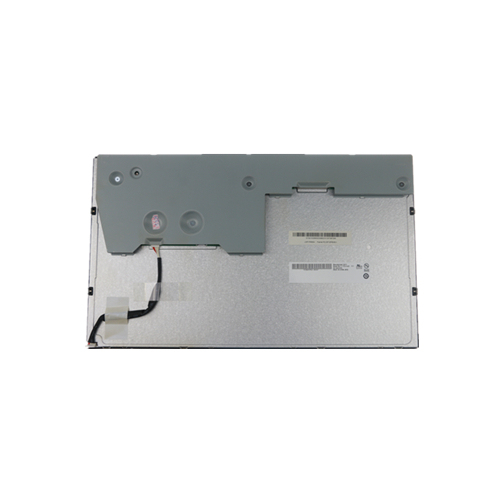

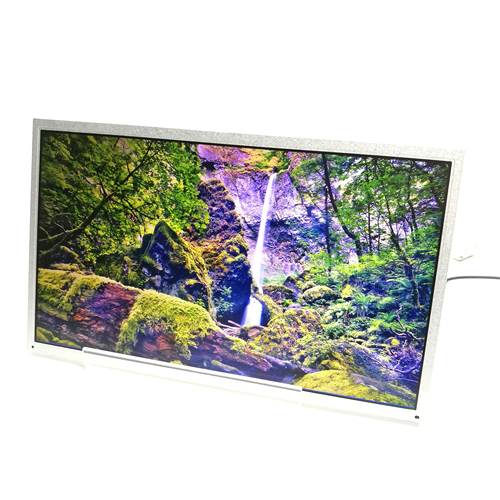

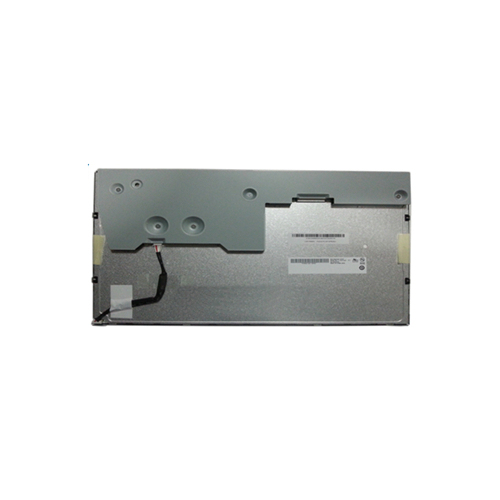

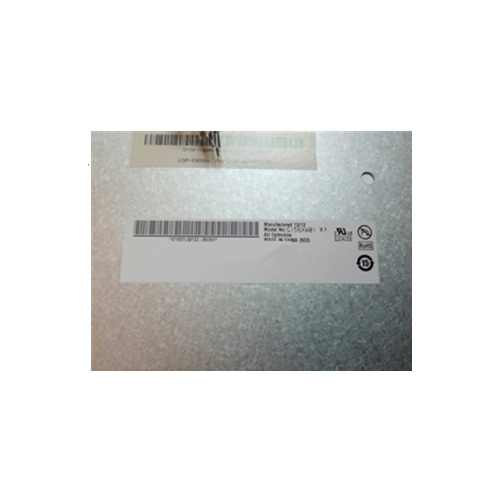

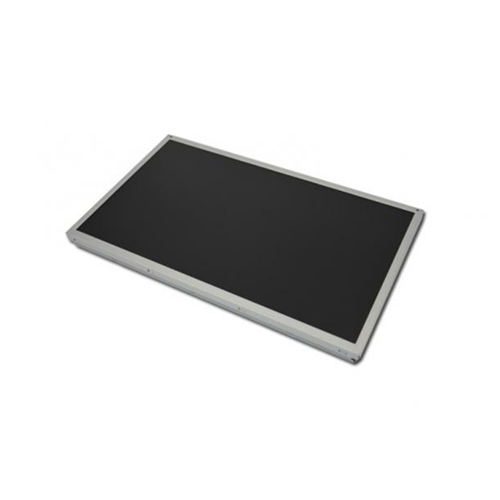

G156XW01 V1 15.6 inch AUO tft LCD module display screen

Item No.: G156XW01 V1
G156XW01 V1 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

G156XW01 V1 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

Panel Brand    AUO

Panel Model    G156XW01 V1

Panel Size    15.6 inch

Panel Type    a-Si TFT-LCD, LCM

Resolution    1366(RGB)×768,WXGA

Pixel Format    RGB Vertical Stripe

Display Area    344.232(W)×193.536(H)mm

Bezel Opening    347.54(W)×196.83(H) mm

Outline Size    363.8(W)×215.9(H)×17.35(D)mm

Surface    Antiglare, Hard coating (3H)

Brightness    400 cd/m² (Typ.)

Contrast Ratio    500:1 (Typ.) (TM)

Viewing Angle    85/85/80/80 (Typ.)(CR≥10) Left/Right/Up/Down

Display Mode    TN, Normally White, Transmissive

Response Time    6/2 (Typ.)(Tr/Td)

Display Colors    16.2M   70% (CIE1931)

Lamp Type    WLED , 50K hours , Embedded (LED Driver)

Frequency     60Hz

Touch Screen    Without

Panel Weight    1.25/1.35Kgs (Typ./Max.)

Application    Industrial Application

Signal Interface    LVDS (1 ch, 8-bit) , 30 pins , Connector

Input Voltage    5.0V (Typ.)

Environment    Operating Temp.: 0~60°C;Storage Temp.:-20~60°C
