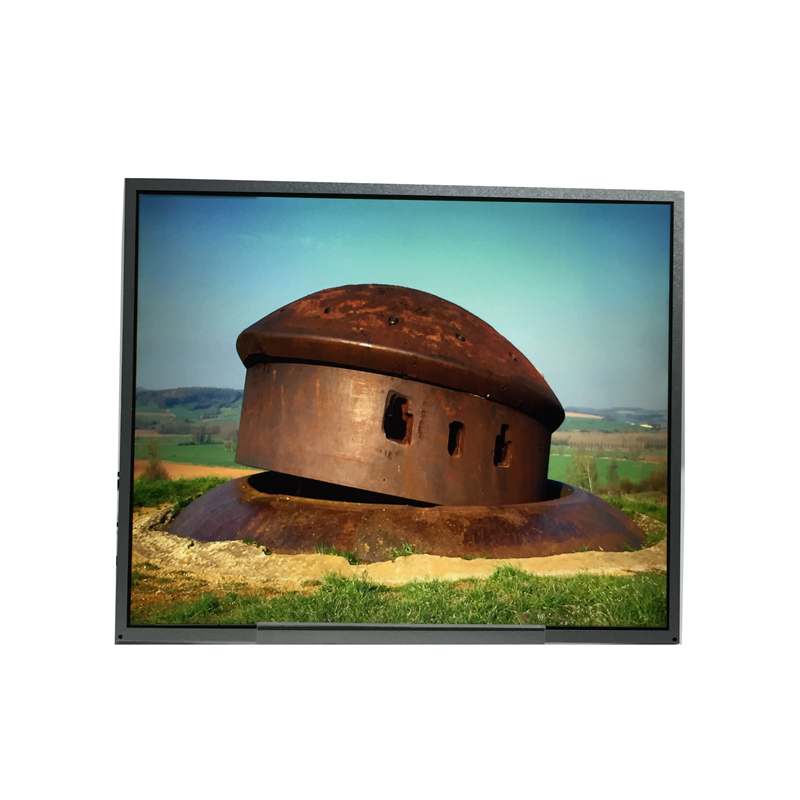

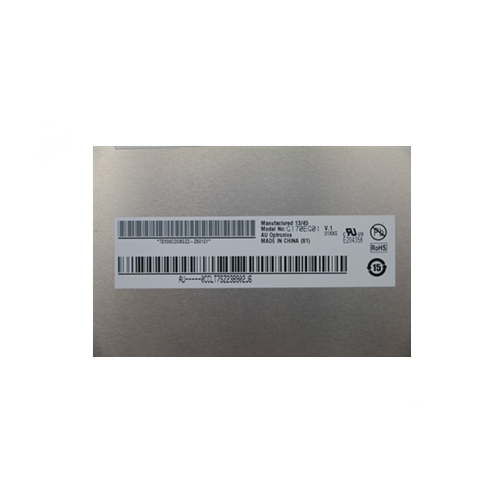

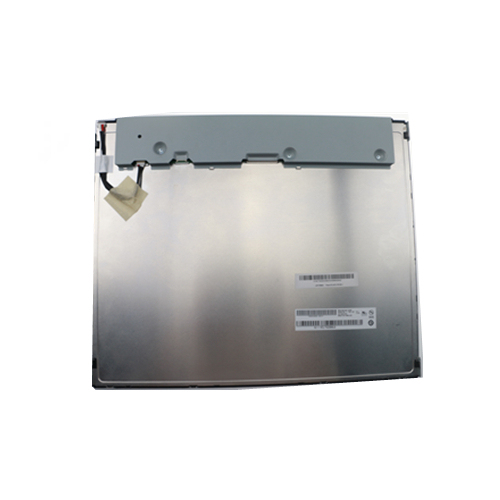

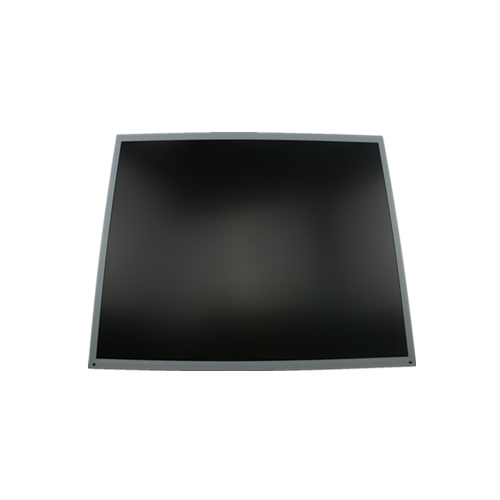

G170EG01 V1 17 inch AUO tft LCD module display screen

Item No.: G170EG01 V1
G170EG01 V1  is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

G170EG01 V1 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

Manufacturer    AUO

Model Name    G170EG01 V1

Screen Size    17.0 inch

Screen Type    LCM,   a-Si TFT-LCD

Pixel Number    1280(RGB)×1024   (SXGA)

Arrangement    RGB Vertical Stripe

Active Area(mm)    337.92 × 270.336 (H×V)

Outline(mm)    358.5 × 296.5 × 18 (H×V×D)

Bezel Area(mm)    341.6 × 274.0 (H×V)

Treatment    Antiglare, Hard coating (3H)

Luminance    350 cd/m² (Typ.)

Contrast Ratio    800 : 1 (Typ.) (TM)

Viewing Angle    80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down Response

Response Time    20/10 (Typ.)(Tr/Td) ms

Good View    at6 o'clock

Work Mode    TN, Normally White, Transmissive

Color Depth    16.7M   72% (CIE1931)

Backlight    WLED , 50K hours , Embedded (LED Driver)

Mass    1.35Kgs (Typ.)

Used for    Industrial Application

Refresh Rate    60Hz

Touchscreen    Without

Signal Type    LVDS (2 ch, 8-bit) , Connector , 30 pins

Voltage Supply    5.0V (Typ.)

Max. Ratings    Storage Temp.: -30~85°C;Operating Temp.: -30~85°C
