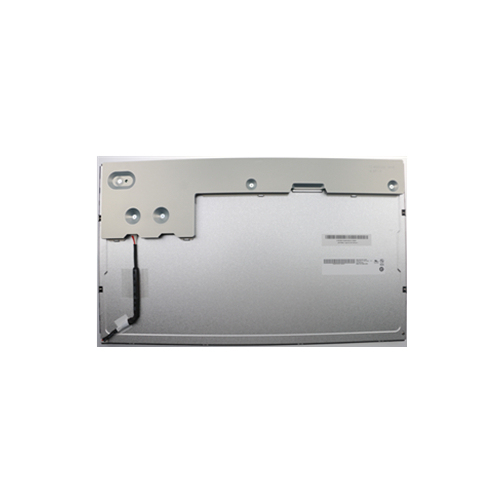

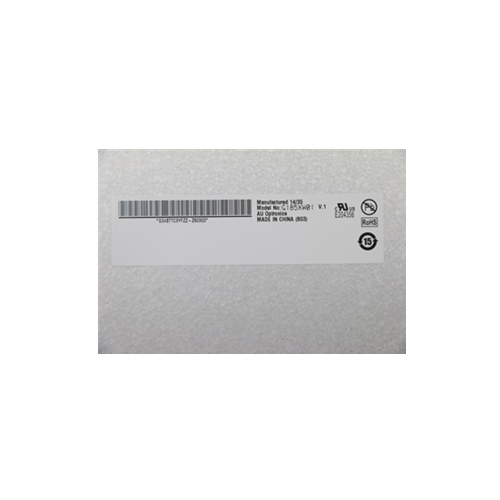

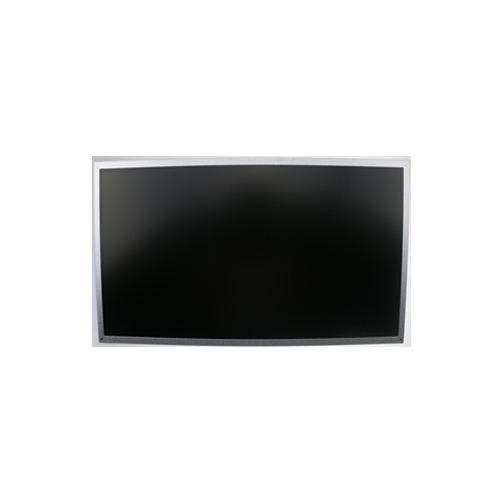

G185XW01 V1 18.5 inch AUO tft LCD module display screen

Item No.: G185XW01 V1
G185XW01 V1  is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

G185XW01 V1 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

Panel Brand    AUO
Panel Model    G185XW01 V1
Panel Size    18.5 inch
Panel Type    a-Si TFT-LCD, LCM
Resolution    1366(RGB)×768 , WXGA
Pixel Format    RGB Vertical Stripe
Display Area    409.8(W)×230.4(H) mm
Bezel Opening    413.4(W)×234.0(H) mm
Outline Size    430.4(W)×254.6(H)×16.9(D) mm
Surface    Antiglare, Hard coating (3H)
Brightness    300 cd/m² (Typ.)
Contrast Ratio    1000:1 (Typ.) (TM)
Viewing Angle    85/85/80/80 (Typ.)(CR≥10) Left/Right/Up/Down
Display Mode    TN, Normally White, Transmissive
Response Time    3.5/1.5 (Typ.)(Tr/Td)
Display Colors    16.7M   68% (CIE1931)
Lamp Type    WLED , 50K hours , Embedded (LED Driver)
Frequency    60Hz
Panel Weight    1.82Kgs (Max.)
Application    Industrial Application
Signal Interface    LVDS (1 ch, 8-bit),30 pins,Connector
Input Voltage    5.0V (Typ.)
Environment    Operating Temp.:0~60°C;Storage Temp.: -20~60°C
