G190EG01 V1 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

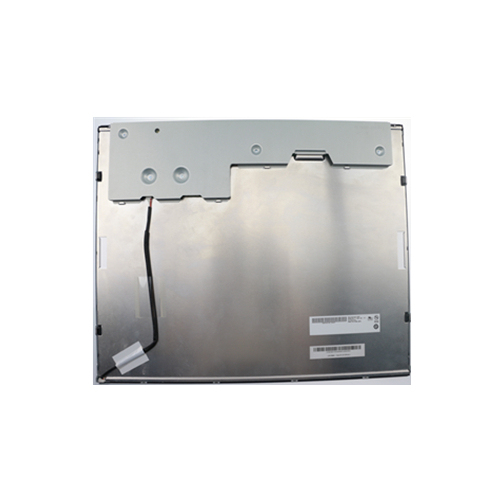

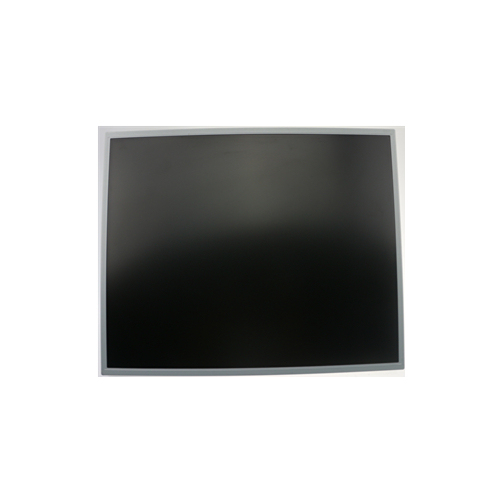

G190EG01 V1 (Alias: G190EG01 V.1) is a 19.0" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). Its general features are summarized in the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, Matte . Based on its features, XIANHENG recommend that this model be applied to Industrial, Gaming etc.
If you want to embed the LCM in your future product, XIANHENG strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of G190EG01 V1.
| Manufacturer | AUO |
| Model Name | G190EG01 V1 |
| Screen Size | 19.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×1024(SXGA) |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 376.32 × 301.056 (H×V) |
| Outline(mm) | 396 × 324 × 18.3 (H×V×D) |
| Bezel Area(mm) | 380.32 × 305.06 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) Left/ Right/Up/Down |
| Response | 3.6/1.4 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 72% (CIE1931) |
| Backlight | WLED , 50K hours , Embedded (LED Driver) |
| Mass | 1.67Kgs (Typ.) |
| Used for | Game Machine Industrial Application |
| Refresh Rate | 60HzTouchscreenWithout |
| Signal Type | LVDS (2 ch, 8-bit),Connector,30 pins |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60°C；Operating Temp.: 0 ~ 50°C |
