G190ETN01.0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

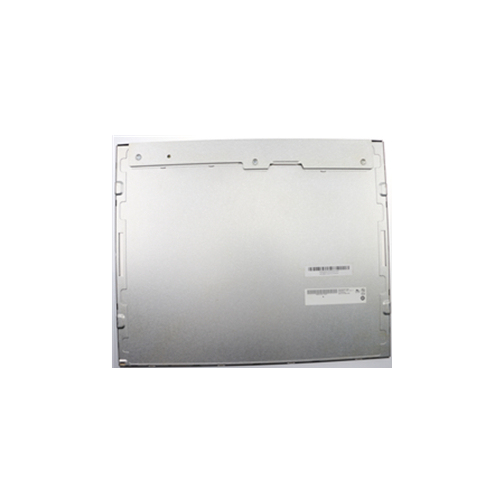

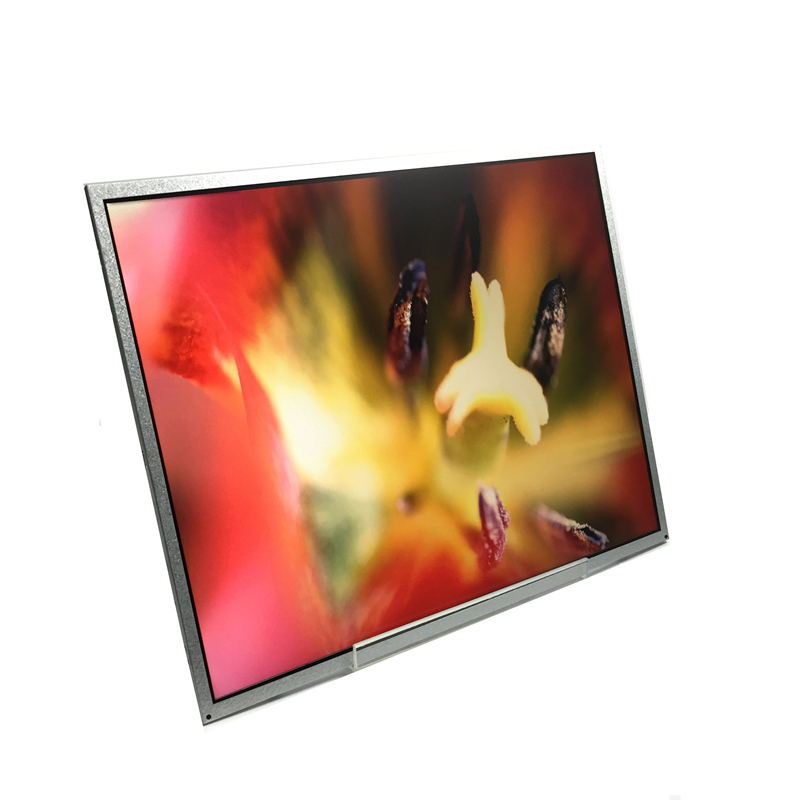

AU Optronics Corp. (hereafter called AUO) G190ETN01.0 is a 19.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). Its general features are summarized in the following: WLED Backlight, Upside I/F, Matte , 72% NTSC. Based on its features, XIANHENG recommend that this model be applied to Industrial etc.
If you want to embed G190ETN01.0 LCM in your future product, XIANHENG strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail.
| BrandAUOModel | G190ETN01.0 |
| Diagonal Size | 19.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1280(RGB)×1024，SXGA |
| Configuration | RGB Vertical Stripe |
| Active Area | 376.32(H)×301.056(V) mm |
| Outline Dim. | 396(H)×324(V) ×11.7(D) mm |
| Bezel Area | 380.0(H)×305.08(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) Left/Right/Up/Down |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% (CIE1931) |
| Light Source | WLED[12S4P],30K hours ,W/O Driver |
| Weight | 1.80Kgs (Typ.) |
| Designed For | Industrial Application |
| Frame Rate | 60Hz |
| Interface Type | 30 pins LVDS (2 ch, 8-bit),Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C;Storage Temperature: -20 ~ 60 °C |
