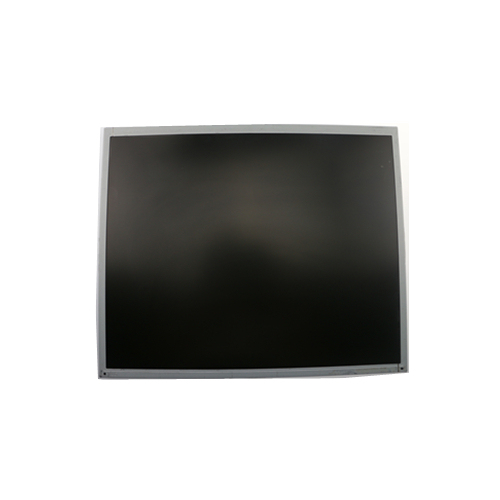

M170EG01 VH 17 inch AUO tft LCD module display screen

Item No.: M170EG01 VH
M170EG01 V.H  is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

M170EG01 V.H is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.



Panel Brand    AUO

Panel Model    M170EG01 VH

Compatible Model    3 Compatible

Panel Size    17.0 inch

Panel Type    a-Si TFT-LCD, LCM

Resolution    1280(RGB)×1024 , SXGA

Pixel Format RGB Vertical Stripe

Display Area    337.92(W)×270.336(H) mm

Bezel Opening    341.6(W)×274.0(H) mm

Outline Size    358.5(W)×296.5(H) ×15.8(D) mm

Surface    Antiglare, Hard coating (3H)

Brightness    250 cd/m² (Typ.)

Contrast Ratio    1000:1 (Typ.) (TM)

Viewing Angle    85/85/80/80 (Typ.)(CR≥10) Left/Right/Up/Down

Display Mode    TN, Normally White, Transmissive

Response Time    3.5/1.5 (Typ.)(Tr/Td)

Display Colors    16.7M   72% (CIE1931)

Lamp Type    2 pcs CCFL,50K hours,Without Driver

Frequency    60Hz

Touch Screen    Without

Panel Weight    1.99Kgs (Typ.)

Application    Desktop Monitor

Signal Interface    LVDS (2 ch, 8-bit),30 pins,Connector

Input Voltage    5.0V (Typ.)

Environment    Operating Temp.: 0 ~ 50 °C;Storage Temp.: -20 ~ 60 °C
