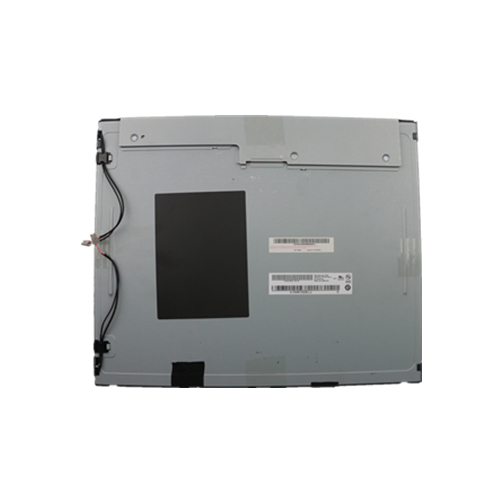

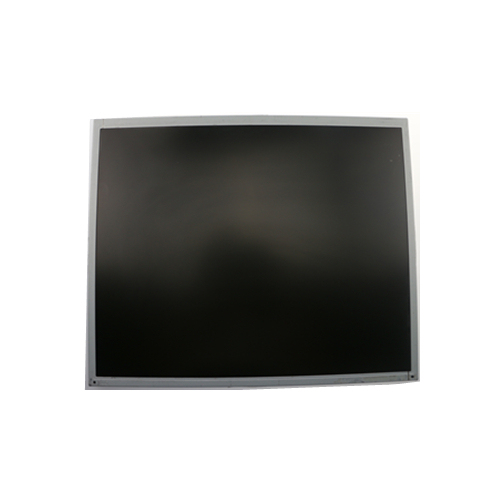

M170ETN01.0 17 inch AUO tft LCD module display screen

Item No.: M170ETN01.0
M170ETN01.0  is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

M170ETN01.0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

Manufacturer    AUO

Model Name    M170ETN01.0

Compatible Model    3 Compatible

Screen Size    17.0 inch

Screen Type    LCM,   a-Si TFT-LCD

Pixel Number    1280(RGB)×1024   (SXGA)

Arrangement    RGB Vertical Stripe

Active Area(mm)    337.92 × 270.336 (H×V)

Outline(mm)    358.5 × 296.5 × 15.8 (H×V×D)

Bezel Area(mm)    341.6 × 274.0 (H×V)

Treatment    Antiglare, Hard coating (3H)

Luminance    250 cd/m² (Typ.)

Contrast Ratio    1000 : 1 (Typ.) (TM)

Viewing Angle    85/85/80/80 (Typ.)(CR≥10) Left/Right/Up/Down

Response    3.5/1.5 (Typ.)(Tr/Td) ms

Good View    at6 o'clock

Work Mode    TN, Normally White, Transmissive

Color Depth    16.7M

Backlight    2 pcs CCFL,50K hours , No Driver

Mass    1.85Kgs (Typ.)

Used for    Desktop Monitor

Refresh Rate    60Hz

Touchscreen    Without

Signal Type    LVDS (2 ch, 8-bit),Connector,30 pins

Voltage Supply    5.0V (Typ.)

Max. Ratings    Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C

Manufacturer    AUO

Model Name    M170ETN01.0

Compatible Model    3 Compatible

Screen Size    17.0 inch

Screen Type    LCM,   a-Si TFT-LCD

Pixel Number    1280(RGB)×1024   (SXGA)

Arrangement    RGB Vertical Stripe

Active Area(mm)    337.92 × 270.336 (H×V)

Outline(mm)    358.5 × 296.5 × 15.8 (H×V×D)

Bezel Area(mm)    341.6 × 274.0 (H×V)

Treatment    Antiglare, Hard coating (3H)

Luminance    250 cd/m² (Typ.)

Contrast Ratio    1000 : 1 (Typ.) (TM)

Viewing Angle    85/85/80/80 (Typ.)(CR≥10) Left/Right/Up/Down

Response    3.5/1.5 (Typ.)(Tr/Td) ms

Good View    at6 o'clock

Work Mode    TN, Normally White, Transmissive

Color Depth    16.7M

Backlight    2 pcs CCFL,50K hours , No Driver

Mass    1.85Kgs (Typ.)

Used for    Desktop Monitor

Refresh Rate    60Hz

Touchscreen    Without

Signal Type    LVDS (2 ch, 8-bit),Connector,30 pins

Voltage Supply    5.0V (Typ.)

Max. Ratings    Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
