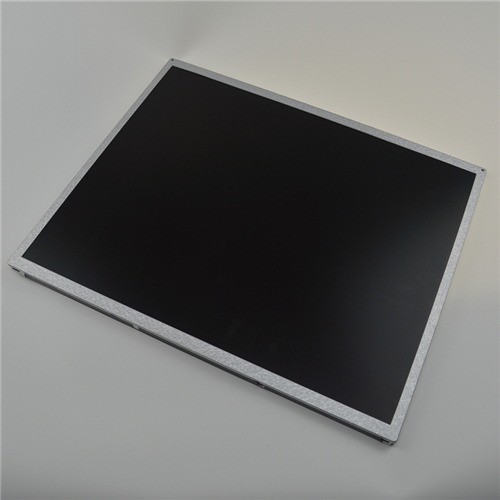

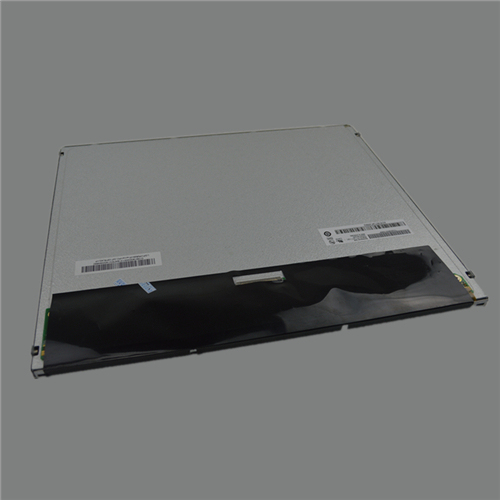

M170ETN01.1 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.
| Manufacturer | AUO |
| Model Name | M170ETN01.1 |
| Screen Size | 17.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×1024 (SXGA) |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 337.92 × 270.336 (H×V) |
| Outline(mm) | 358.5 × 296.5 × 10.8 (H×V×D) |
| Bezel Area(mm) | 341.72 × 274.14 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) Left/Right/Up/Down |
| Response | 3.8/1.2 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 72% (CIE1931) Backlight9S4P WLED,30K hours,No Driver |
| Mass | 1.27Kgs (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit),Connector,30 pins |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C；Operating Temp.: 0 ~ 50 °C |
