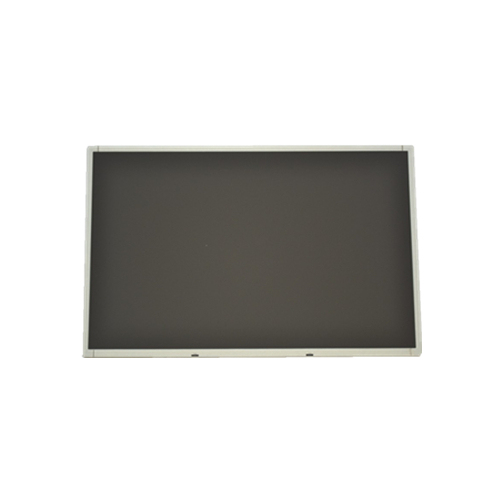

M190PW01 V80E 19 inch AUO tft LCD module display screen

Item No.: M190PW01 V80E
M190PW01 V800E  is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

M190PW01 V80E is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

Manufacturer    AUO

Model Name    M190PW01 V80E

Screen Size    19.0 inch

Screen Type    LCM ,   a-Si TFT-LCD

Pixel Number    1440(RGB)×900   (WXGA+)

Arrangement    RGB Vertical Stripe

Active Area(mm)    408.24 × 255.15 (H×V)

Outline(mm)    428 × 278 × 10.8 (H×V×D)

Bezel Area(mm)    412.24 × 259.15 (H×V)

Treatment    Antiglare, Hard coating (3H)

Luminance    250 cd/m² (Typ.)

Contrast Ratio    1000 : 1 (Typ.) (TM)

Viewing Angle    85/85/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

Response    3.5/1.5 (Typ.)(Tr/Td) ms

Work Mode    TN, Normally White, Transmissive

Color Depth    16.7M   72% (CIE1931)

Backlight    11S4P WLED,30K hours, No Driver

Mass    1.52Kgs (Typ.)

Used for    Desktop Monitor

Refresh Rate    60Hz

Touchscreen    Without

Signal Type    LVDS (2 ch, 8-bit),Connector,30 pins

Voltage Supply    5.0V (Typ.)

Max. Ratings    Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
