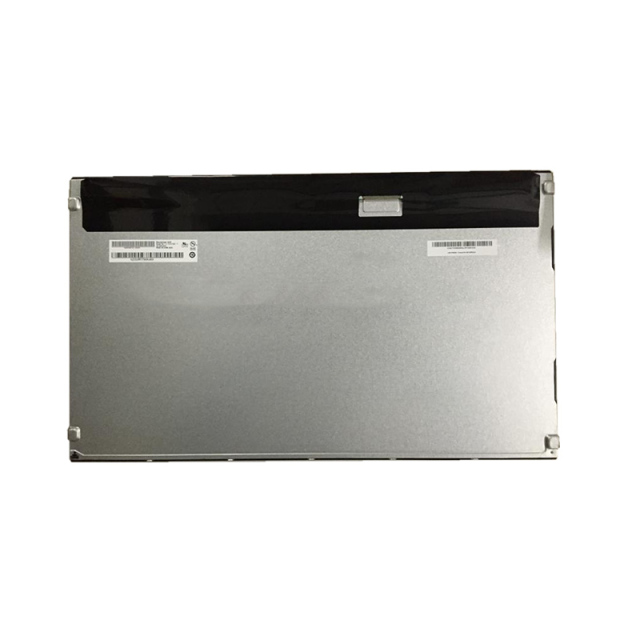

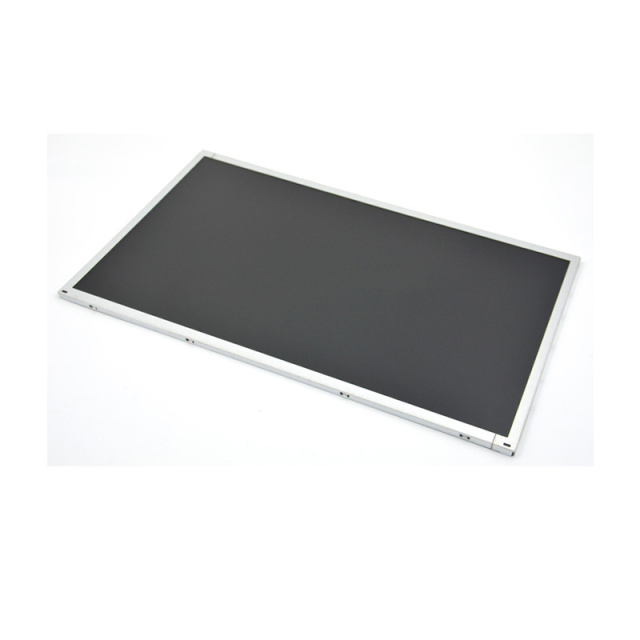

T215HVN01.0 21.5 inch AUO tft LCD module display screen

Item No.: T215HVN01.0
T215HVN01.0  is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description Review
Description

T215HVN01.0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

Panel Brand    AUO

Panel Model    T215HVN01.0

Panel Type    a-Si TFT-LCD , LCM

Panel Size    21.5 inch

Resolution    1920(RGB)×1080 , FHD

Display Area    476.64(W)×268.11(H) mm

Outline Size    495.6(W)×292.2(H) ×11.1(D) mm

Brightness    250 cd/m² (Typ.)

Viewing Angle    89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Best View on    Symmetry

Display Colors    16.7M

Frequency    60Hz

Weight    1.67Kgs (Typ.)

Pixel Format    RGB Vertical Stripe

Bezel Opening    479.84(W)×271.31(H) mm

Surface    Antiglare, Hard coating (3H)

Contrast Ratio    3000:1 (Typ.) (TM)

Display Mode    VA, Normally Black, Transmissive

Response Time    18 (Typ.)(Tr+Td)

Lamp Type    17S4P WLED , 30K hours , Without Driver

Touch Screen    Without

Application    Desktop Monitor

Signal Interface    LVDS (2 ch, 8-bit) , 30 pins , Connector

Input Voltage    5.0V (Typ.)

Environment    Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °CPanel Brand    AUO

Panel Model    T215HVN01.0

Panel Type    a-Si TFT-LCD , LCM

Panel Size    21.5 inch

Resolution    1920(RGB)×1080 , FHD

Display Area    476.64(W)×268.11(H) mm

Outline Size    495.6(W)×292.2(H) ×11.1(D) mm

Brightness    250 cd/m² (Typ.)

Viewing Angle    89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Best View on    Symmetry

Display Colors    16.7M

Frequency    60Hz

Weight    1.67Kgs (Typ.)

Pixel Format    RGB Vertical Stripe

Bezel Opening    479.84(W)×271.31(H) mm

Surface    Antiglare, Hard coating (3H)

Contrast Ratio    3000:1 (Typ.) (TM)

Display Mode    VA, Normally Black, Transmissive

Response Time    18 (Typ.)(Tr+Td)

Lamp Type    17S4P WLED , 30K hours , Without Driver

Touch Screen    Without

Application    Desktop Monitor

Signal Interface    LVDS (2 ch, 8-bit) , 30 pins , Connector

Input Voltage    5.0V (Typ.)

Environment    Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
