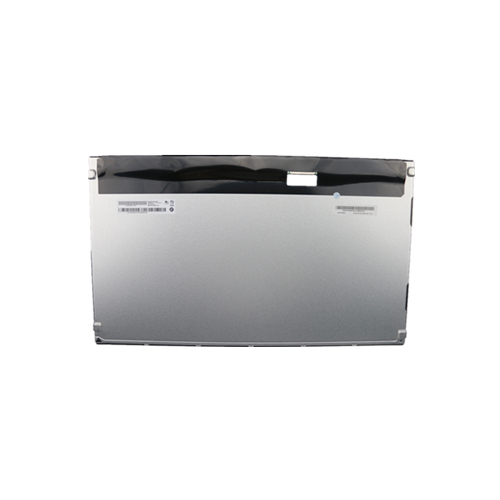

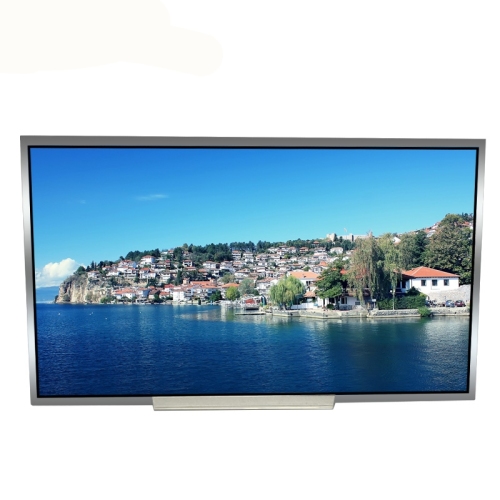

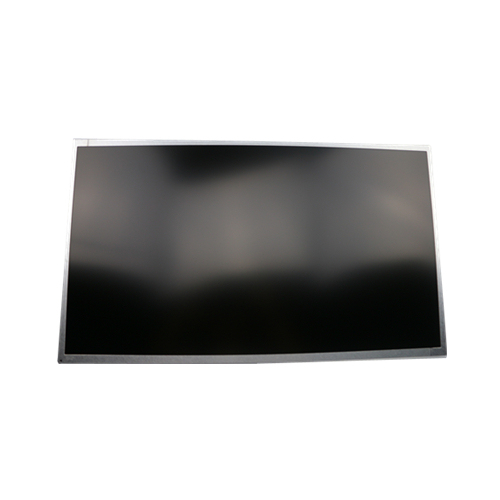

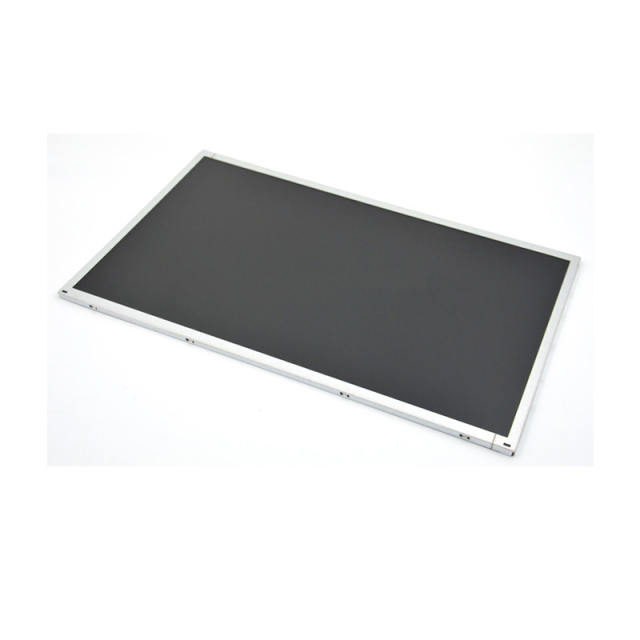

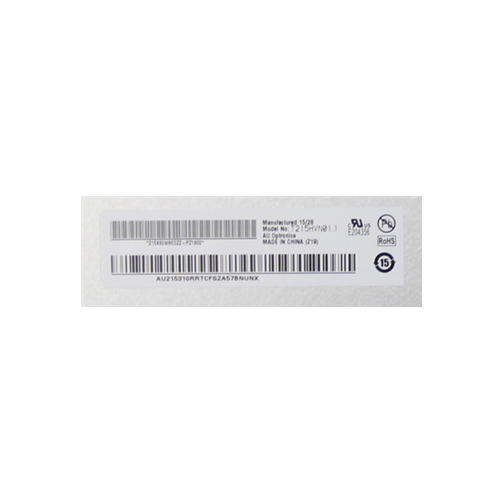

T215HVN01.1 21.5 inch AUO tft LCD module display screen

Item No.: T215HVN01.1
T215HVN01.1  is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world.
Description General Description General Specification Review
Description

T215HVN01.1 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

Panel Brand    AUO

Panel Model    T215HVN01.1

Panel Size    21.5 inch

Panel Type    a-Si TFT-LCD, LCM

Resolution    1920(RGB)×1080 , FHD

Pixel Format    RGB Vertical Stripe

Brightness    250 cd/m² (Typ.)

Contrast Ratio    3000:1 (Typ.) (TM)

Viewing Angle    89/89/89/89 (Typ.)(CR≥10) Left/Right/Up/Down

Display Mode    VA, Normally Black, Transmissive

Best View on    Symmetry

Response Time    13/5 (Typ.)(Tr/Td)

Display Colors    16.7M   72% (CIE1931)

Lamp Type    17S4P WLED , 30K hours , Without Driver

Frequency    60Hz

Panel Weight    1.67Kgs (Typ.)

Application    Desktop Monitor

Signal Interface    LVDS (2 ch, 8-bit) , 30 pins , Connector

Input Voltage    5.0V (Typ.)

Environment Operating    Temp.: 0 ~ 50 °C ;

Storage Temp.: -20 ~ 60 °C






General Description

This specification applies to the 21.5 inch wide Color a-Si TFT-LCD Module T215HVN01.1. The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (8 bits RGB data input ). The input interface is Dual channel LVDS and this module doesn’t contain an driver board for backlight.

General Specification

The following items are characteristics summary on the table under 25℃ condition:


Panel Brand AUO
Panel Model T215HVN01.1
Panel Size 21.5 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080 , FHD
Pixel Format RGB Vertical Stripe
Brightness 250 cd/m² (Typ.)
Contrast Ratio 3000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left/Right/Up/Down
Display Mode VA, Normally Black, Transmissive
Best View on Symmetry
Response Time 13/5 (Typ.)(Tr/Td)
Display Colors 16.7M   72% (CIE1931)
Lamp Type 17S4P WLED , 30K hours , Without Driver
Frequency 60Hz
Panel Weight 1.67Kgs (Typ.)
Application Desktop Monitor  TV Sets
Signal Interface LVDS (2 ch, 8-bit) , 30 pins , Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;
Storage Temp.: -20 ~ 60 °C
