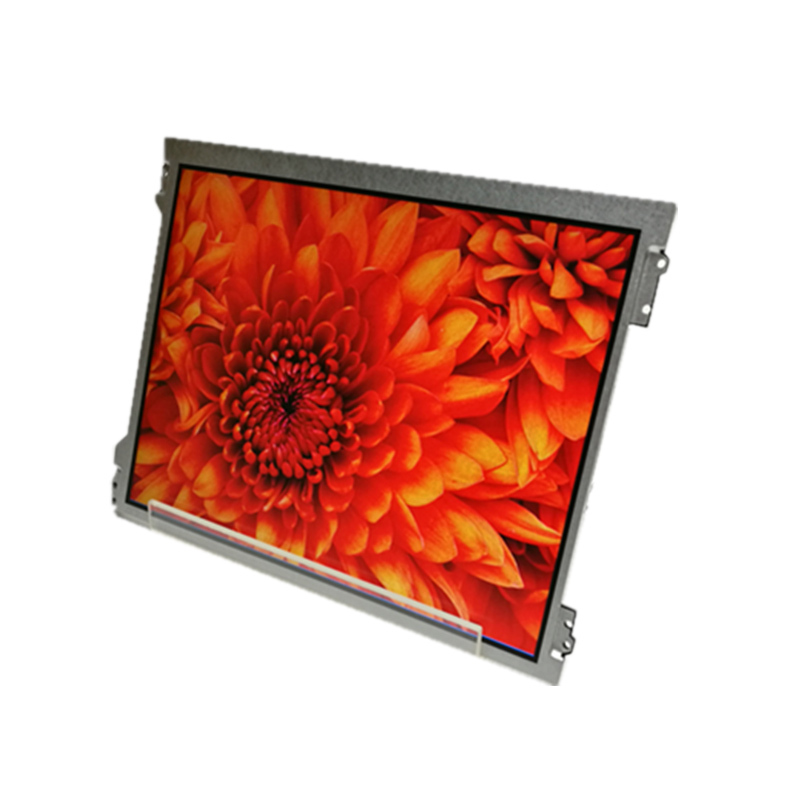

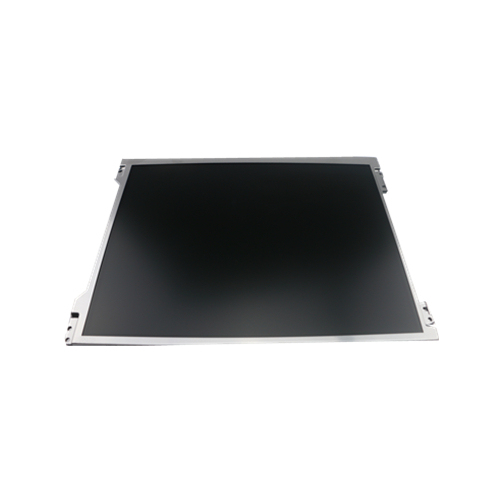

G121XN01 V0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.
| Brand | AUO |
| Diagonal Size | 12.1 inch |
| Model | G121XTN01.0 |
| Type | a-Si TFT-LCD , LCM |
| Pixel Format | 1024(2)×768(2) [XGA] |
| Active Area | 245.76(H)×184.32(V) mm |
| Bezel Area | 250.8(H)×188.4(V) mm |
| Luminance | 500 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down |
| Support Color | 262K/16.2M 72% (CIE1931) |
| Weight | 495g (Max.) |
| Frame Rate | 60Hz |
| Configuration | RGBW Rectangle |
| Outline Dim. | 279(H)×209(V) ×9(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Response Time | 25/10 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED [6S3P] , 50K hours , Embedded (LED Driver) |
| Designed For | Industrial Application |
| Touch Panel | Without |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit) , Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
