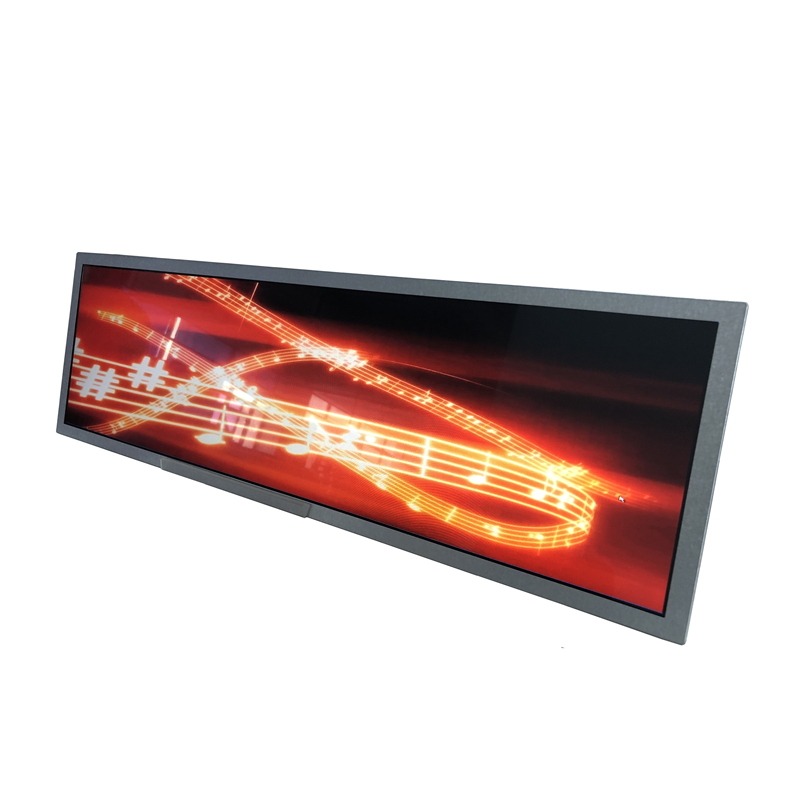

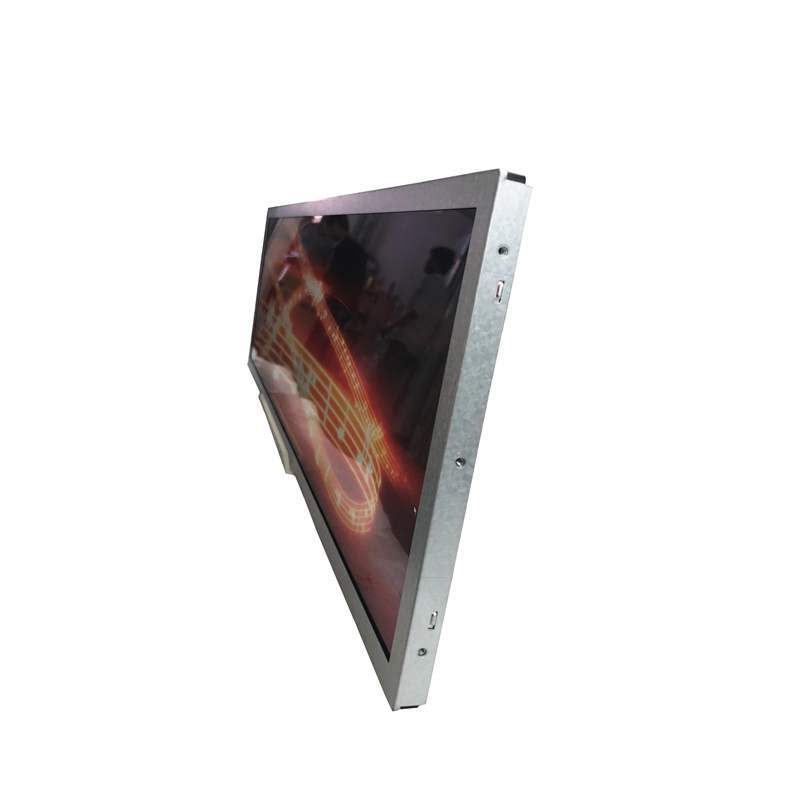

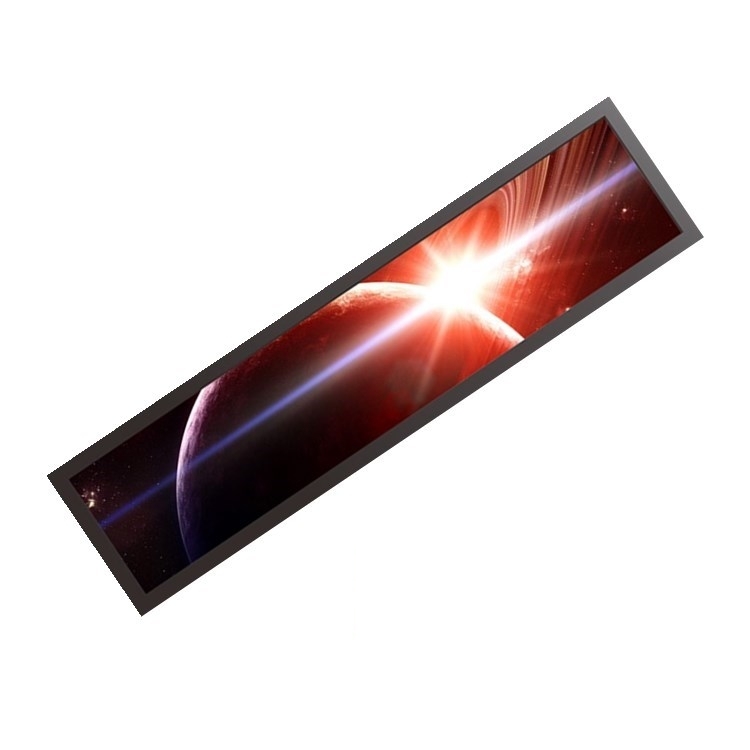

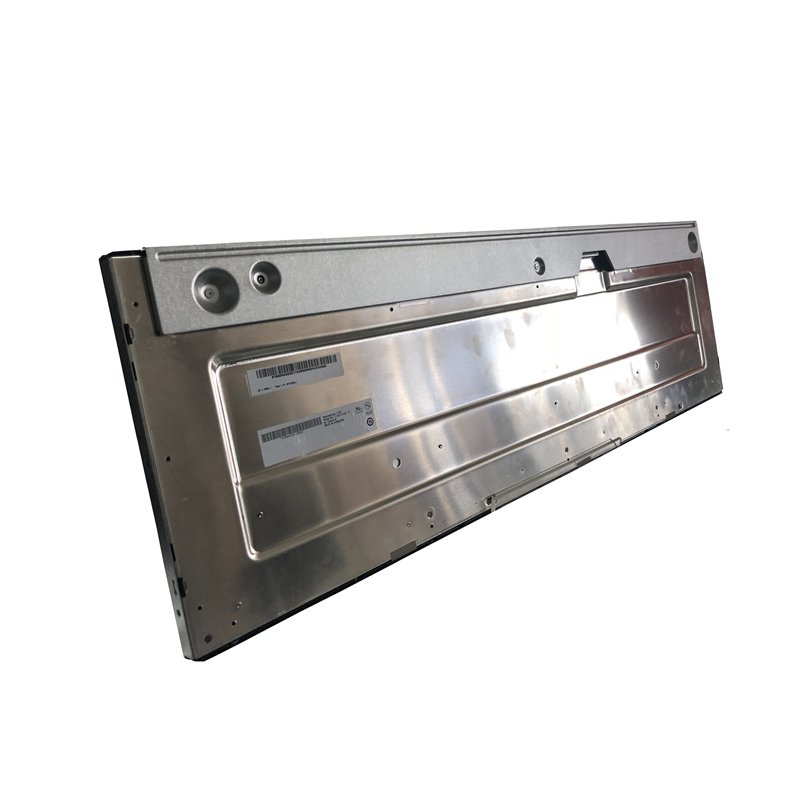

G286HAN01.0 AUO 28.6 inch bar lcd led module outdoor use with 1000 nits

Item No.: G286HAN01.0
This specification applies to the 28.6 inch-wide Color TFT-LCD Module G286HAN01.0. The display supports the 1/2 of Full HD - 1920(H)×540(V) screen format and 16.7 M colors (RGB 8-bit data). All input signals are dual channel LVDS interface.
Description
This specification applies to the 28.6 inch-wide Color TFT-LCD Module G286HAN01.0. The display supports the 1/2 of Full HD - 1920(H)×540(V) screen format and 16.7 M colors (RGB 8-bit data). All input signals are dual channel LVDS interface.

LED driver board is not included. G286HAN01.0 is designed for industrial display applications.

The following items are characteristic of the 28.6 inch-wide Color TFT-LCD Module G286HAN01.0:


 General Specification
Panel Brand:     AUO
Panel Model:     G286HAN01.0
Panel Size:     28.6 inch
Panel Type:     a-Si TFT-LCD, LCM
Resolution:     1920(RGB)×540
Pixel Format:     RGB Vertical Stripe
Display Area:     698.4(W)×196.425(H) mm
Bezel Opening:     702.4(W)×200.43(H) mm
Outline Size:     731.46(W)×229.49(H) ×21.34(D) mm
Surface:     Antiglare, Hard coating (3H)
Brightness:     1000 cd/m² (Typ.)
Contrast Ratio:     1000:1 (Typ.) (TM)
Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode:     AHVA, Normally Black, Transmissive
Best View on:     Symmetry
Response Time:     16/9 (Typ.)(Tr/Td)
Display Colors:     16.7M   72% (CIE1931)
Lamp Type:     WLED , 50K hours , Without Driver
Frequency:     60Hz
Touch Screen:     Without
Panel Weight:     2.70Kgs (Typ.)
Application:     Industrial Application; Outdoor High Brightness; Bar Shape

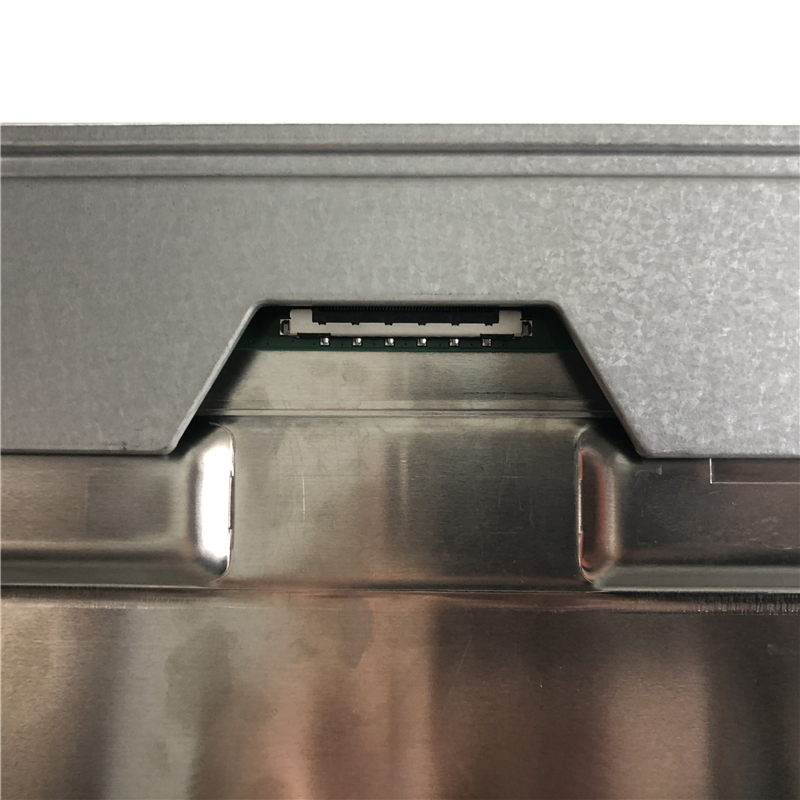

Signal Interface:     LVDS (2 ch, 8-bit) , 51 pins , Connector
Input Voltage:     12.0V (Typ.)
Operating Temp.:     -10 ~ 60 °C ;
Storage Temp.:     -20 ~ 70 °C
