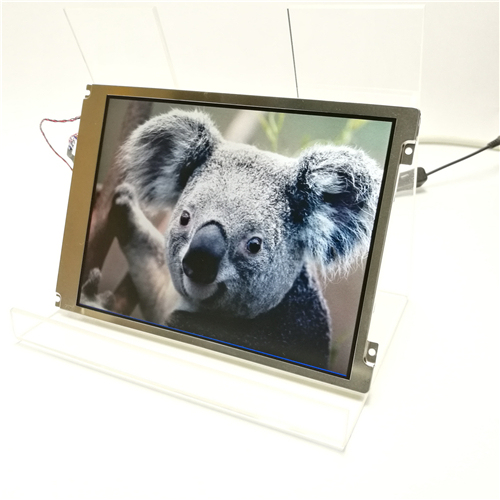

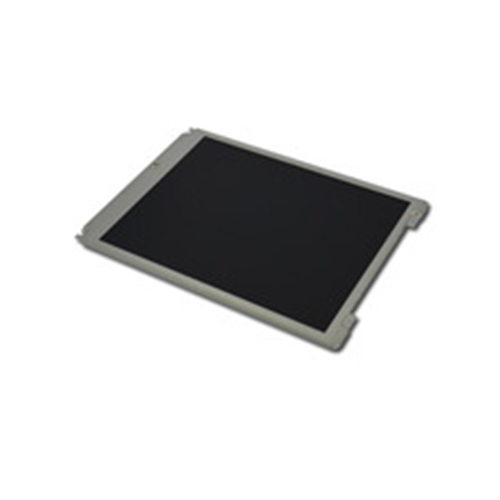

G084SN03 V3 8.4 inch AUO tft LCD module display screen

Description Review

Description

G084SN03 V3 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

Manufacturer	AUO
Screen Size	8.4 inch
Pixel Number	800(RGB)×600 (SVGA)
Active Area(mm)	170.4 × 127.8 (H×V)
Bezel Area(mm)	173.8 × 131.2 (H×V)
Luminance	250 (Typ.)(cd/m²)
Viewing Angle	80/80/80/60 (Typ.)(CR≥10) Left / Right / Up / Down
Color Depth	262K/16.2M 45% (CIE1931)
Mass	TBD
Refresh Rate	60Hz
Model Name	G084SN03 V3
Screen Type	LCM , a-Si TFT-LCD
Arrangement	RGB Vertical Stripe
Outline(mm)	203 × 142.5 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	600 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	20/10 (Typ.)(Tr/Td) ms
Backlight	3 strings WLED , 30K hours , Embedded (LED Driver)
Used for	Industrial Application
Touchscreen	Without
Signal Type	LVDS (1 ch, 6/8-bit) , Connector , 20 pins
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C
