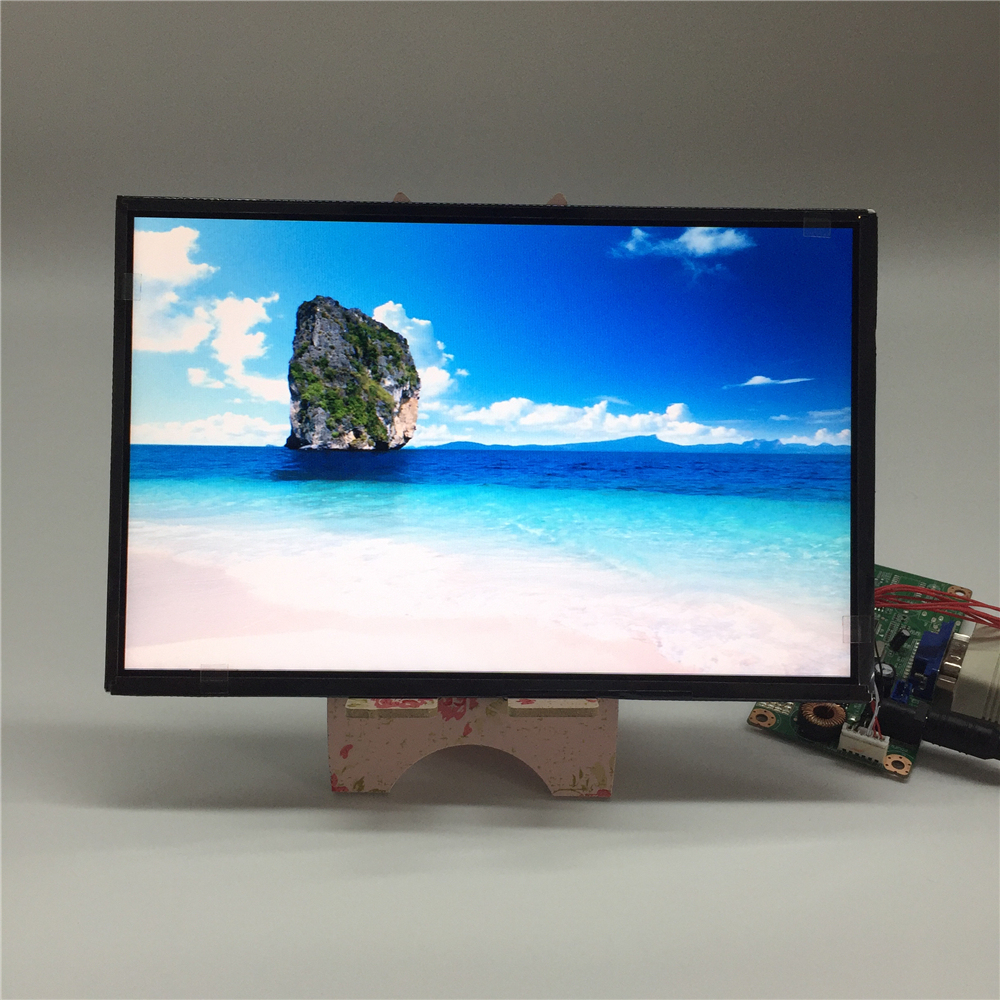

G101EVN01.0 10.1 inch AUO tft LCD module display screen

Item No.: G101EVN01.0
G101EVN01.0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide v
Description Review
Description

G101EVN01.0 is one of the best-selling products we sell, widely used in industrial, commercial, medical and other industries, well received by customers around the world. Our products are uniquely designed with high brightness, high contrast ratio, wide viewing angle, wide temperature operation, longer lamp life, and lower power consumption. Advanced technologies such as free-from, curved, and transparent LCD are adopted for a variety of new applications.

Brand    AUO

Model    G101EVN01.0

Diagonal Size    10.1 inch

Type    a-Si TFT-LCD, LCM

Pixel Format    1280(RGB)×800[WXGA]

Configuration    RGB Vertical Stripe

Active Area    216.96(H)×135.6(V) mm

Outline Dim.    229.46(H)×149.2(V) ×5.54(D) mm

Bezel Area    220.36(H)×139.1(V) mm

Treatment    Hard coating (3H), Reflection 1.5% (Max.)

Luminance    300 cd/m² (Typ.)

Contrast Ratio    1300:1 (Typ.) (TM)

View Direction    Symmetry

Response Time    25 (Typ.)(Tr+Td)

Viewing Angle    85/85/85/85 (Typ.)(CR≥10) Left/Right/Up/Down

Operating Mode    MVA, Normally Black, Transmissive

Support Color    262K   45% (CIE1931)

Light Source    WLED , 25K hours , Embedded (LED Driver)

Weight    187g (Max.)

Designed For    Industrial Application

Frame Rate    60Hz

Touch Panel    Without

Interface Type    40 pins   LVDS (1 ch, 6-bit) , Connector

Power Supply    3.3V (Typ.)

Environment    Operating Temperature: -20~60°C;Storage Temperature: -30~70°C
