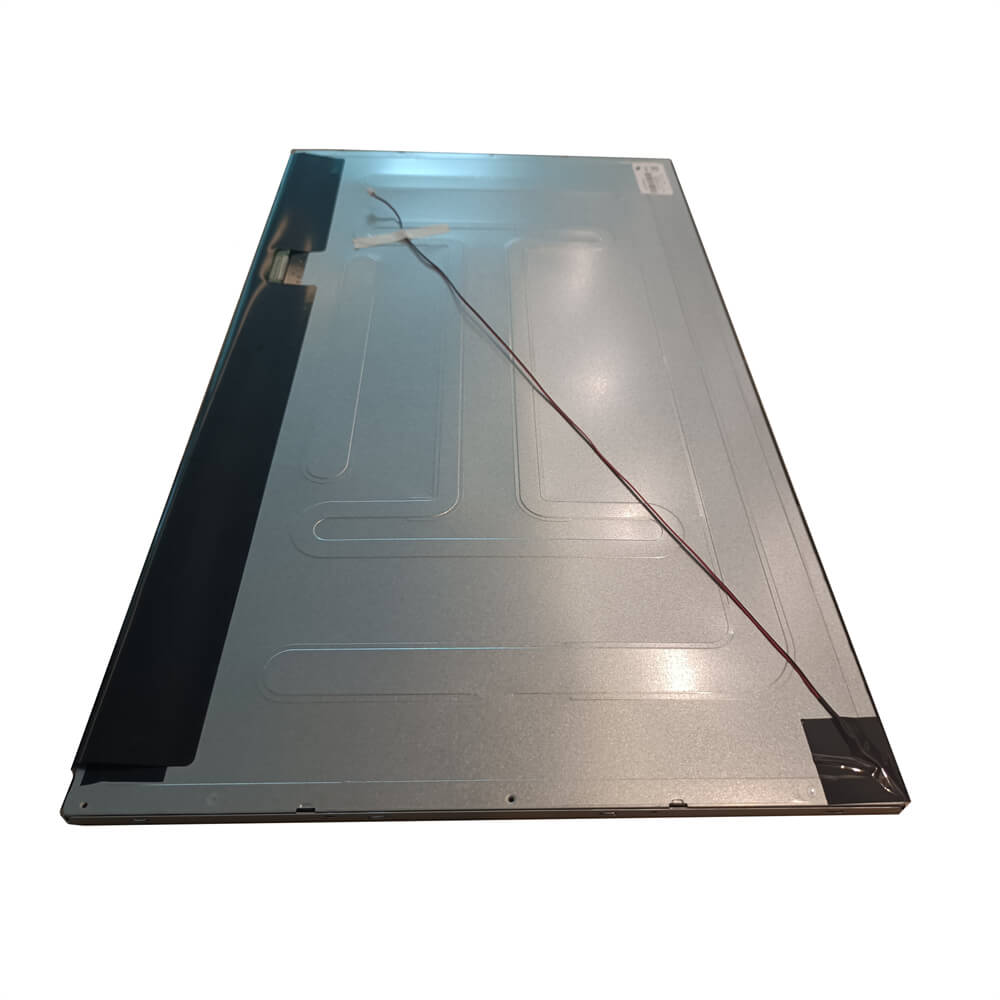

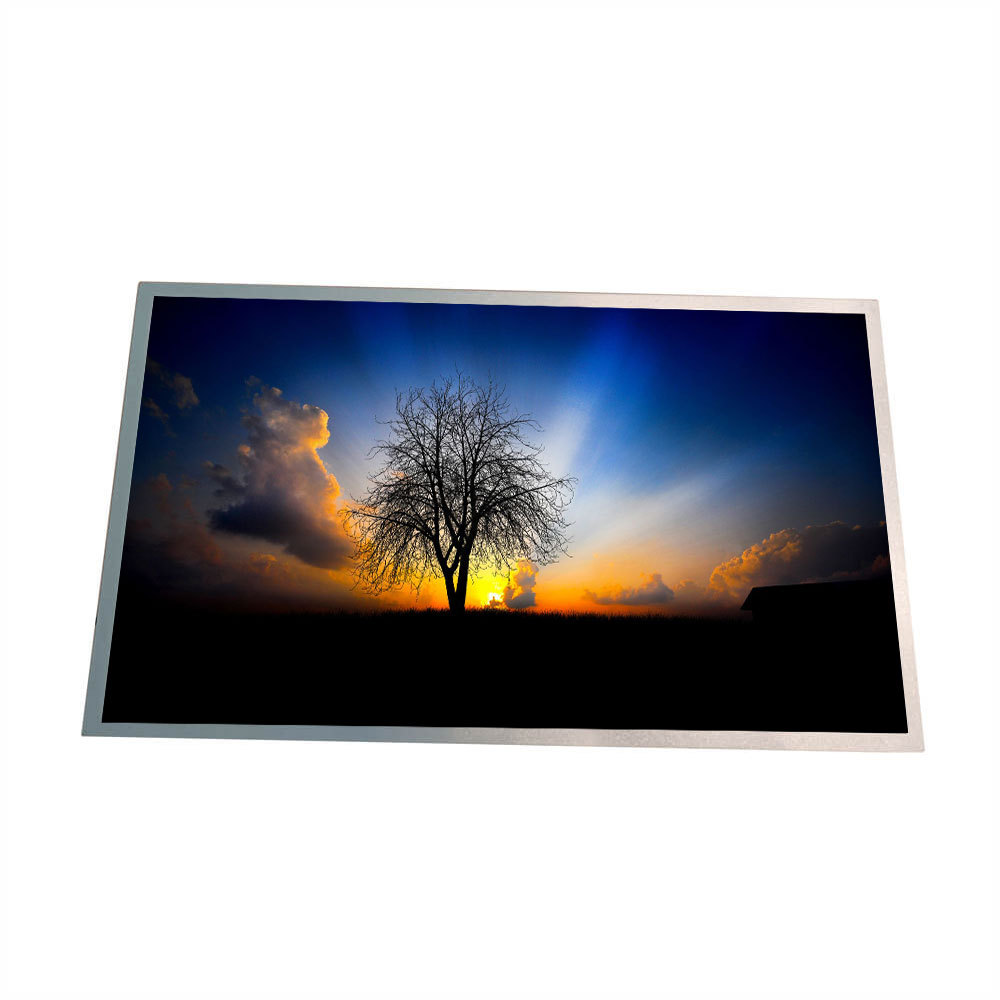

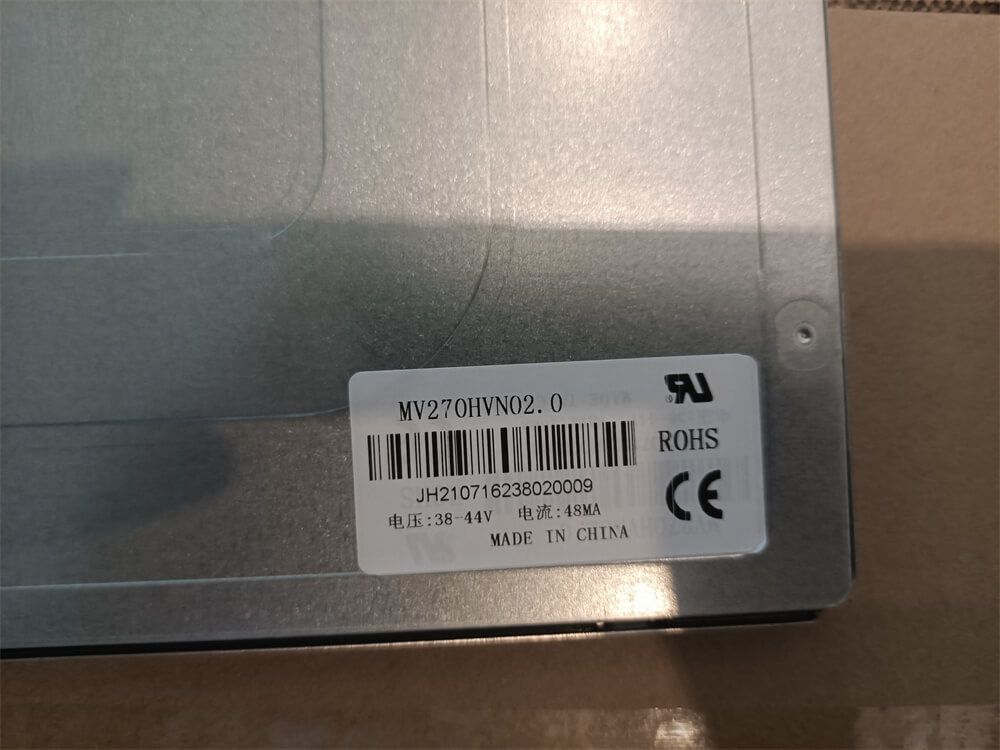

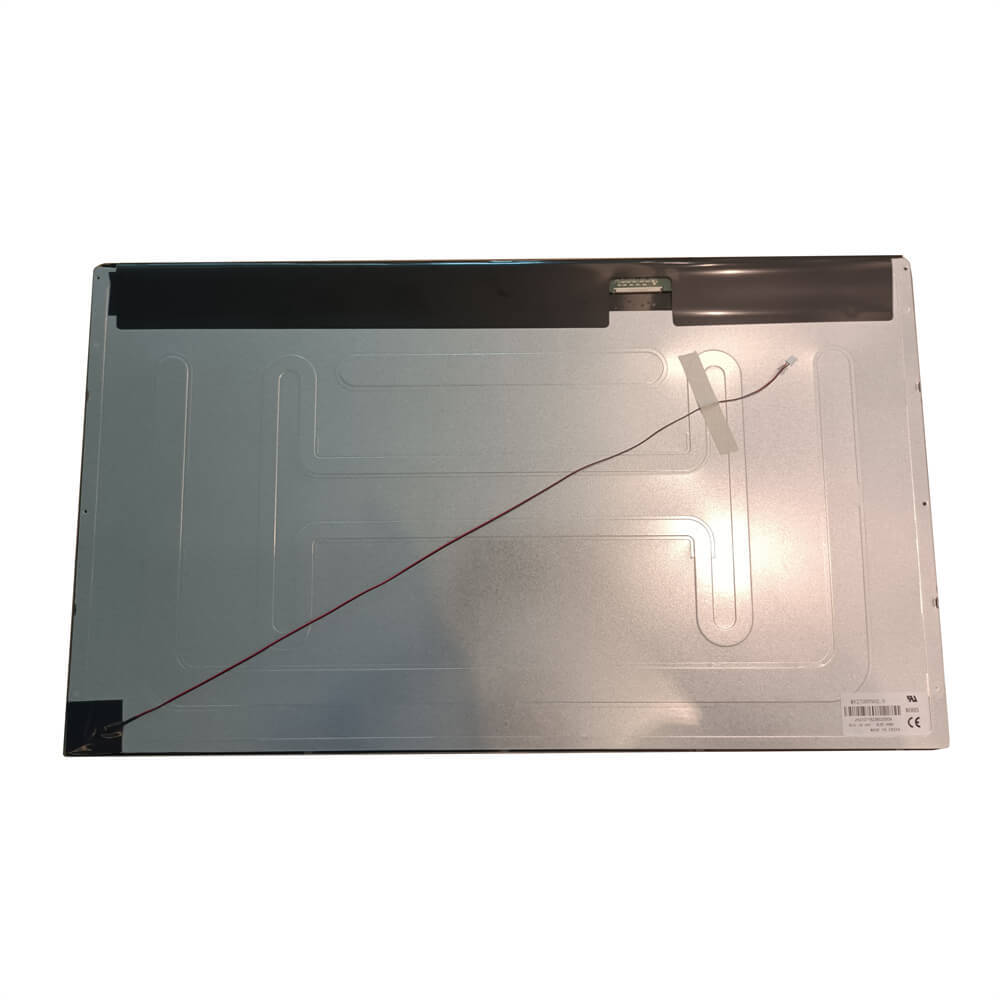

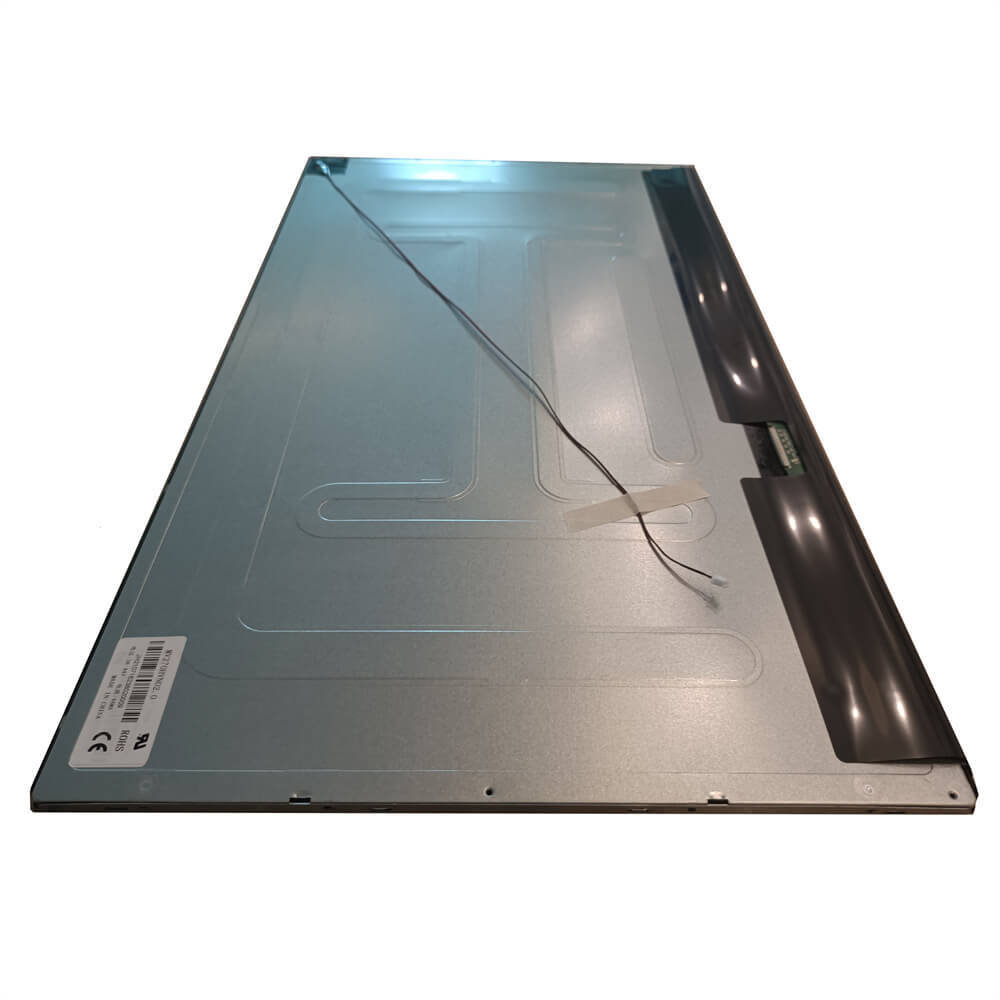

M270HVN02.0 27 inch AUO tft LCD module display screen

No.M270HVN02.0
The M270HVN02.0 is a 27.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without backlight driver, without touch screen.
  • M270HVN02.0 27 inch AUO tft LCD module display screen
  • M270HVN02.0 27 inch AUO tft LCD module display screen
  • M270HVN02.0 27 inch AUO tft LCD module display screen
  • M270HVN02.0 27 inch AUO tft LCD module display screen
  • M270HVN02.0 27 inch AUO tft LCD module display screen
Description

The M270HVN02.0 (Alias: 97.27M06.000/00A/00B/0BB) is a 27.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without backlight driver, without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: WLED Backlight, Reverse I/F, Matte , 97.27M06.00B ES7.0 19.53W, 97.27M06.0BB ES8.0 16.65W, 9 or 10pcs/box. Based on its features, XIANHENG recommend that this model be applied to Desktop Monitor etc.

If you want to embed M270HVN02.0 LCM in your future product, XIANHENG strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail.


Brand AUO
Model P/N M270HVN02.0
Diagonal Size 27.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080, FHD  81PPI
Pixel Format RGB Vertical Stripe
Active Area 597.6(W)×336.15(H) mm
Bezel Opening 601.6(W)×340.15(H) mm
Outline Size 613.6(W)×356.85(H) ×10.5(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 3000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode AMVA, Normally Black, Transmissive
Best View on SymmetryResponse Time7/5 (Typ.)(Tr/Td)
Display Colors 16.7M   72% NTSCLamp Type15S4P WLED , 30K hours , Without Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 2.18Kgs (Typ.)ApplicationDesktop Monitor
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
