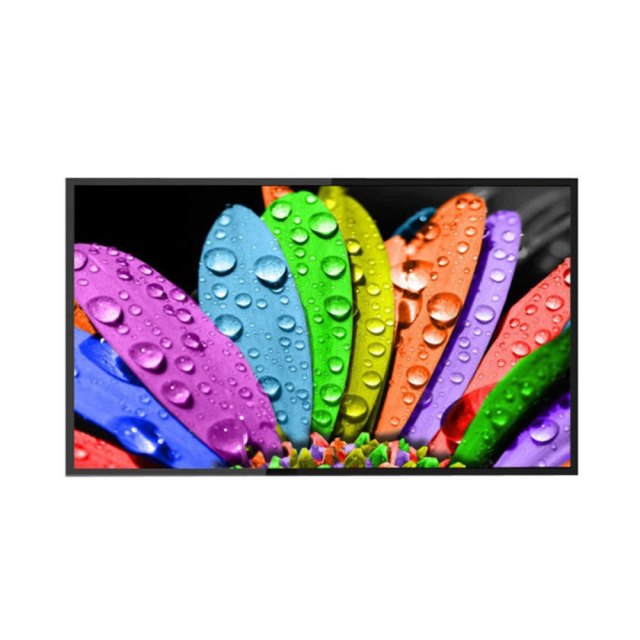

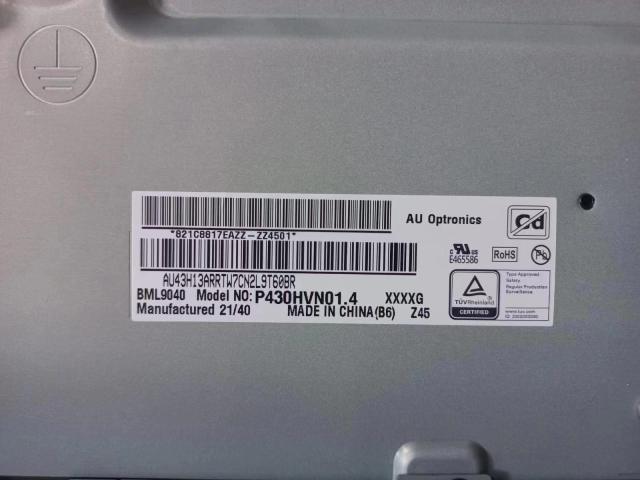

AU Optronics Corp. (hereafter called AUO) P430HVN01.4 is a 43 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized in the following: Landscape / Portrait, WLED Backlight, Life ≥ 50K hours, With LED Driver, Reverse I/F, Matte . Based on its features, we recommend that this model be applied to Digital Signage etc.
If you want to embed P430HVN01.4 LCM in your future product, we strongly recommend that you should contact with AUO or XIANHENG TECH to learn lateast production and specification detail.
| Brand | AUO |
| Model P/N | P430HVN01.4 |
| Diagonal Size | 43" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 51PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 940.896(W)×529.254(H) mm |
| Bezel Opening | 943.9(W)×532.26(H) mm |
| Outline Size | 961.4(W)×555.78(H) ×31.9(D) mm |
| Brightness | 500 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
| Best View on | Symmetry |
| Display Colors | 16.7M 72% NTSC |
| Frequency | 60Hz |
| Weight | 7.35Kgs (Typ.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Response Time | 8 (Typ.)(G to G) |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Touch Screen | Without |
| Application | Digital Signage |
| Signal Interface | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
