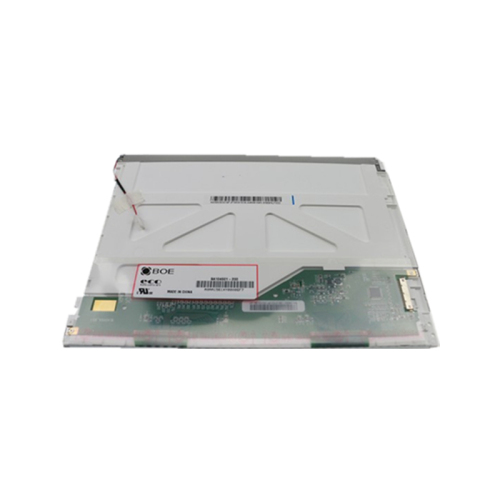

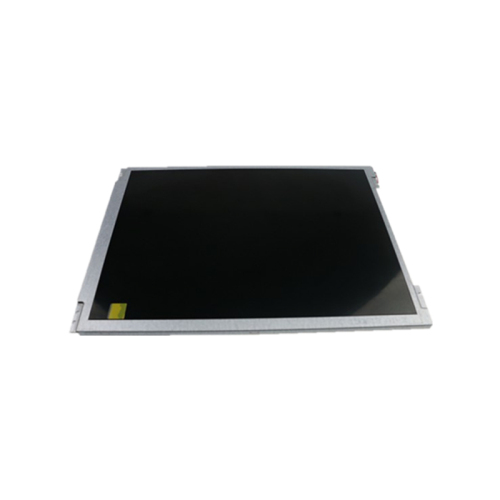

BA104S01-200 BOE 10.4 inch lcd display

Item No.: BA104S01-200
Good quality and low price BA104S01-200 BOE 10.4 inch 4:3 TFT-LCD module with resolution 800x600 300 cd/m2 20 pins LVDS.
Description

Good quality and low price BA104S01-200 BOE 10.4 inch 4:3 TFT-LCD module with resolution 800x600 300 cd/m2 20 pins LVDS.

10.4 SVGA is a color active matrix TFT-LCD panel using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal white. This TFT-LCD has a 10.4 inch diagonally measured active area with SVGA resolutions (800 horizontal by 600 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripe and this panel can display 16.7M Dithering (RGB 8-Bits) or 262K colors (RGB 6-bits).

 Features
0.5t Glass (Single)
Module Design
Low power consumption
Thin and light weight
High luminance and contrast ratio, low reflection and wide viewing angle
RoHS Compliant

 Application
Medical & Industrial application

 General Specification
Brand    BOE
Model    BA104S01-200
Diagonal Size    10.4 inch
Type    a-Si TFT-LCD, LCM
Pixel Format    800(RGB)×600   [SVGA]
Configuration    RGB Vertical Stripe
Active Area    211.2(H)×158.4(V) mm
Outline Dim.    236(H)×176.9(V) ×5.9(D) mm
Bezel Area    215.0(H)×162.0(V) mm
Treatment    Clear
Luminance    300 cd/m² (Typ.)
Contrast Ratio    800:1 (Typ.) (TM)
View Direction    12 o'clock
Response Time    30 (Typ.)(Tr+Td)
Viewing Angle    70/70/60/70 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode    TN, Normally White, Transmissive
Support Color    262K/16.2M   50% (CIE1931)
Light Source    WLED  [6S4P] , 30K hours , W/O Driver
Designed For    Industrial Application  Medical Display
Frame Rate    60Hz
Touch Panel    Without
Interface Type    20 pins   LVDS (1 ch, 6/8-bit) , Connector
Power Supply    3.3V (Typ.)
Environment    Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80°C
