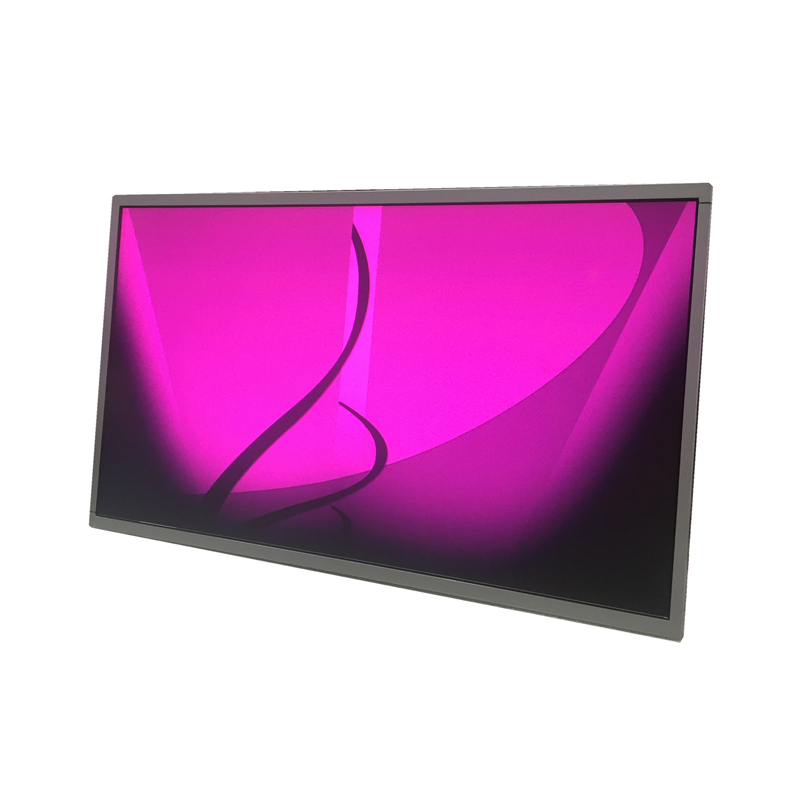

MV185WHB-N20 BOE 18.5 inch high brightness lcd display

Name: MV185WHB-N20 BOE 18.5 inch high brightness lcd display
Brand: XIANHENG | China LCD display supplier | SHENZHEN LCD module manufacturer
SKU: MV185WHB-N20
Availability: InStock
Rating: 5 (3 reviews)

Item No.: MV185WHB-N20

MV185WHB-N20 18.5 inch tft-lcd Slim-Size Display wide viewing angle and high brightness for Stand-alone Monitor Support hd video/ picture/ music play.

INQUIRY PDF Format

Description

MV185WHB-N20 BOE 18.5 inch lcd display Slim-Size Display wide viewing angle for Stand-alone Monitor Support hd video/picture/music play.

MT185WHB-N20 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 18.5 inch diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features

LVDS Interface with 1pixel / clock
High-speed response
6-bit(Hi-FRC) color depth, display 16. 7M colors
High luminance and contrast ratio, low reflection and normal viewing angle
DE (Data Enable) only
RoHS
Gamma Correction
RoHS
Gamma Correction
Forward Type

Application

Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller

General Specification

Manufacturer:    BOE
Screen Size:    18.5 inch
Work Mode:    MV185WHB-N20
Screen Type: a-Si TFT-LCD
Arrangement:    RGB Vertical Stripe
Pixel Number:    1366(RGB)×768 (WXGA)
Active Area(mm):    409.8 × 230.4 (H×V)
Bezel Area(mm):    -
Outline(mm):    422.2 × 244.1 × 1.32 (H×V×D)
Treatment:    Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio:    1000 : 1 (Typ.) (TM)
Luminance:    1000 (cd/m²)
Viewing Angle:    89/89/89/89 (Typ.)(CR≥10) L/R/U/D
Good View at:    Symmetry
Glass Thickness:    0.50+0.50 mm
Color Depth:    16.7M
Refresh Rate:    60Hz
Model Name:    ADS, Normally Black, Transmissive
Response:    14 (Typ.)(G to G) ms
Used for:    Desktop Monitor
Touch panel:    Without
Signal Type:    LVDS (1 ch, 8-bit) , Connector , 30 pins
Voltage Supply:    5.0V (Typ.)
Max. Ratings:    Storage Temp.: -20 ~ 60 °C；Operating Temp.: 0 ~ 50 °C
