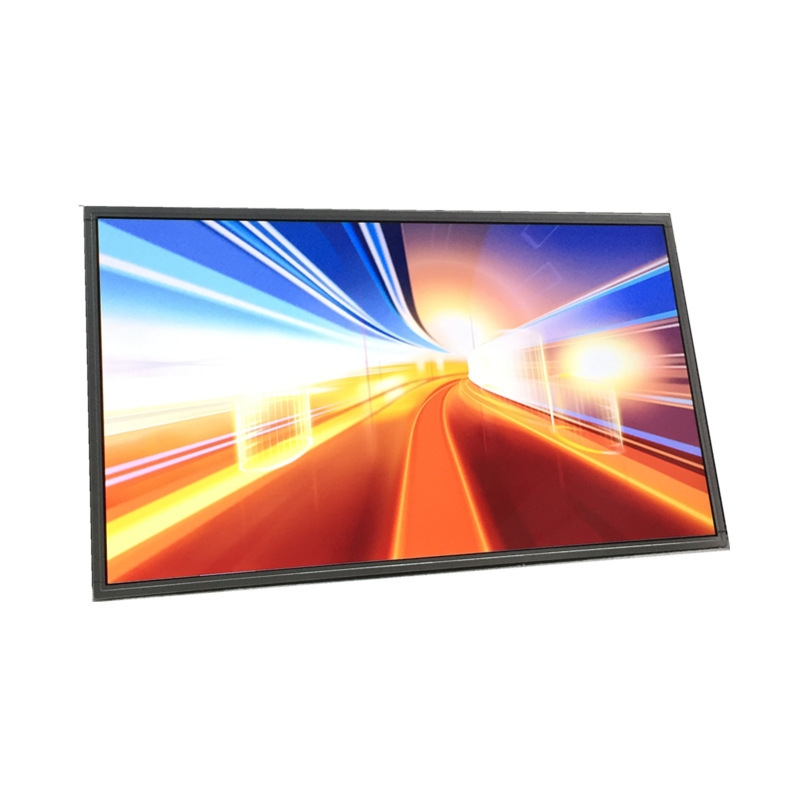

MV270FHM-N20 BOE 27 inch wide viewing angle lcd display

No.MV270FHM-N20
MV270FHM-N20 BOE 27 inch tft-lcd Slim-Size Display FHD and wide viewing angle for Stand-alone Monitor Support hd video/ picture/ music play.
  • MV270FHM-N20 BOE 27 inch wide viewing angle lcd display
Description

MV270FHM-N20 BOE 27 inch tft-lcd Slim-Size Display FHD and wide viewing angle for Stand-alone Monitor Support hd video/ picture/ music play.


MV270FHM-N20 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 27 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features
LVDS Interface with 2 pixel / clock
6-bit (Hi-FRC) color depth, display 16.7M B colors
Compatible with Color Gamut 72%@NTSC(CIE 1931) and 83%@NTSC(CIE 1976)
High luminance and contrast ratio, low reflection and wide viewing angle
DE (Data Enable) only
RoHS/Halogen Free
TCO 7.0 , ES 7.0 compliant
Gamma Correction
Reverse type

Application
Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller

Manufacturer BOE
Model Name MV270FHM-N20
Screen Size 27.0 inch
Screen Type LCM,   a-Si TFT-LCD
Pixel Number 1920(RGB)×1080   (FHD)
Arrangement RGB Vertical Stripe
Active Area(mm) 597.888 × 336.312 (H×V)
Outline(mm) 611.5 × 355.8 × 13.5 (H×V×D)
Bezel Area(mm) 601.9 × 340.4 (H×V)
Treatment Antiglare (Haze 25%), Hard coating (3H)
Luminance 300 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Response 14 (Typ.)(G to G) ms
Good View at Symmetry
Work Mode ADS, Normally Black, Transmissive
Color Depth 16.7M   73% (CIE1931)
Backlight 18S4P WLED , 30K hours , No Driver
Mass 3.49Kgs
Used for Desktop Monitor
Refresh Rate 60Hz
Touchscreen Without
Signal Type LVDS (2 ch, 8-bit) , Connector , 30 pins
Voltage Supply 5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
