MV215FHM-N30 is a color active matrix TFT LCD module using amorphous silicon TFT's as an active switching devices. This module has a 21.5 inch diagonally measured active area with FHD resolutions 1920*1080.

INQUIRY PDF Format

Buy At Alibaba

Description

Low MOQ and original MV215FHM-N30 BOE 21.5 inch IPS widescreen tft lcd module with full view angle

MV215FHM-N30 FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features

* LVDS Interface with 2 pixel / clock
* High-speed response
* 6-bit (Hi-FRC) color depth, display 16. 7M colors
* DE (Data Enable) only
* RoHS/Halogen Free
* Reverse type
* Gamma Correction

Application

 Desktop Type of PC & Workstation Use
 Slim-Size Display for Stand-alone Monitor
 Display Terminals for Control System
 Monitors for Process Controller

General Specification

Panel Brand:    BOE
Panel Size:    21.5 inch
Panel Model:    MV215FHM-N30
Panel Type:    a-Si TFT-LCD , LCM
Pixel Format:    RGB Vertical Stripe
Resolution:    1920(RGB)×1080 , FHD
Display Area:    476.064(W)×267.768(H) mm
Outline Size:    489.3(W)×287(H) ×14.1(D) mm
Bezel Opening:    479.3(W)×271.3(H) mm
Surface:    Antiglare, Hard coating (3H)
Brightness:    250 cd/m² (Typ.)
Viewing Angle:    89/89/89/89 (Typ.)(CR≥10) L / R / U / D
Best View on:    Symmetry
Display Colors:    16.7M   73% (CIE1931)
Frequency:    60Hz
Weight:    1.83Kgs (Typ.)
Contrast Ratio:    1000:1 (Typ.) (TM)
Display Mode:    ADS, Normally Black, Transmissive
Response Time:    14 (Typ.)(G to G)

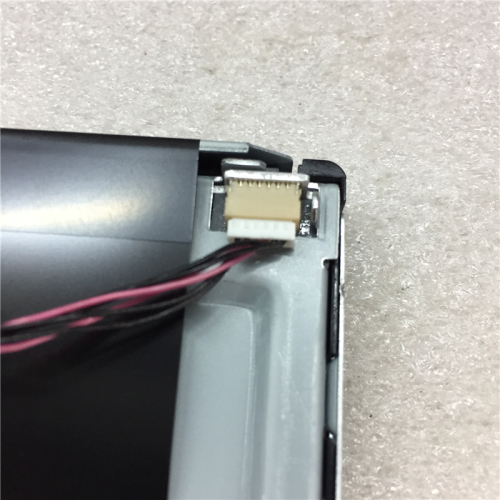

Lamp Type:    17S4P WLED , 30K hours , Without Driver
Touch Screen:    Without
Application:    Desktop Monitor  Industrial Application

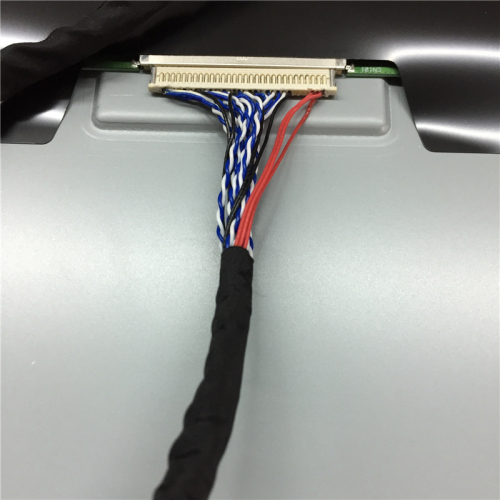

Signal Interface:    LVDS (2 ch, 8-bit) , 30 pins , Connector
Input Voltage:    5.0V (Typ.)
Environment:    Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 65 °C
