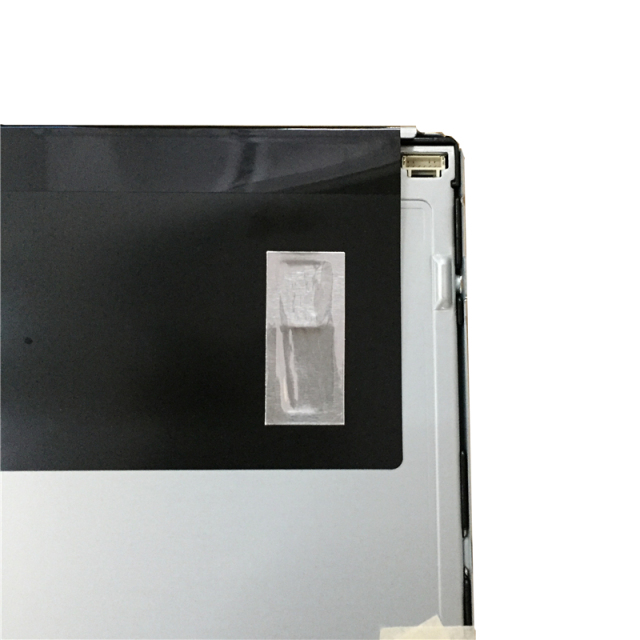

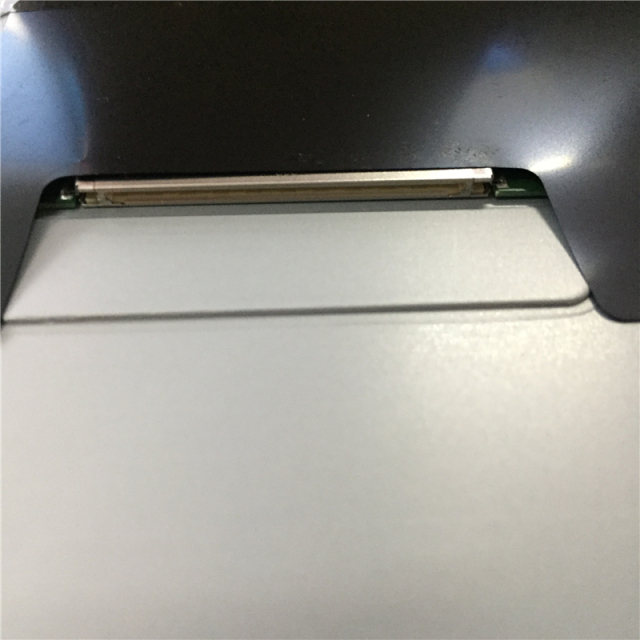

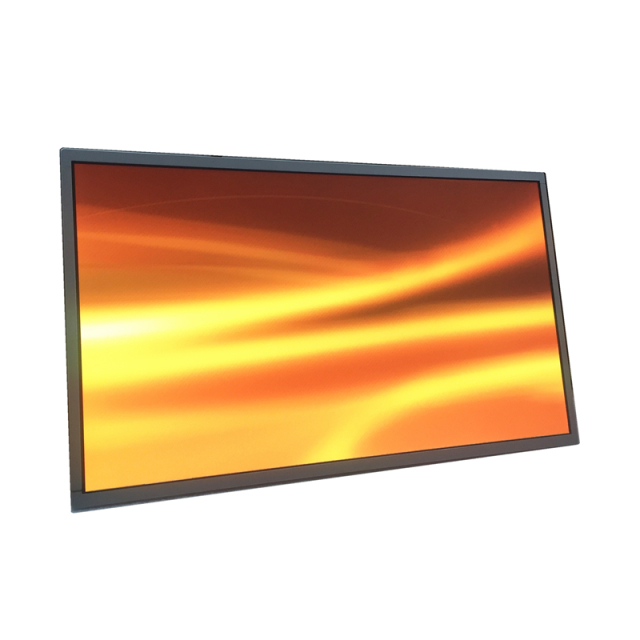

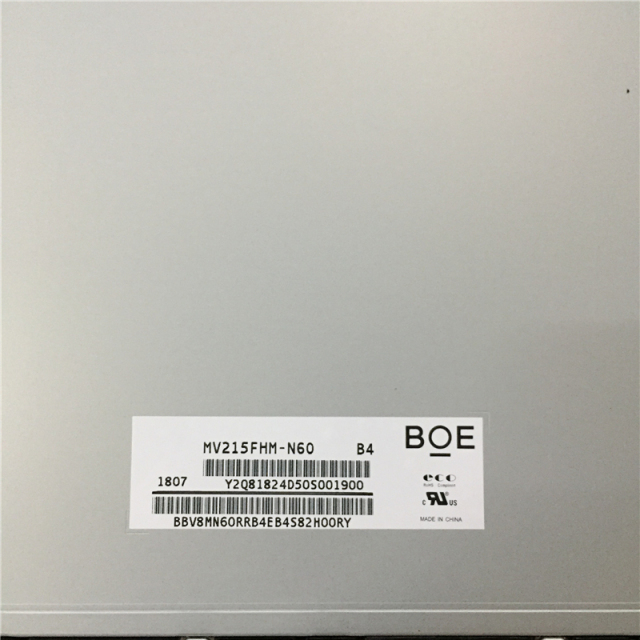

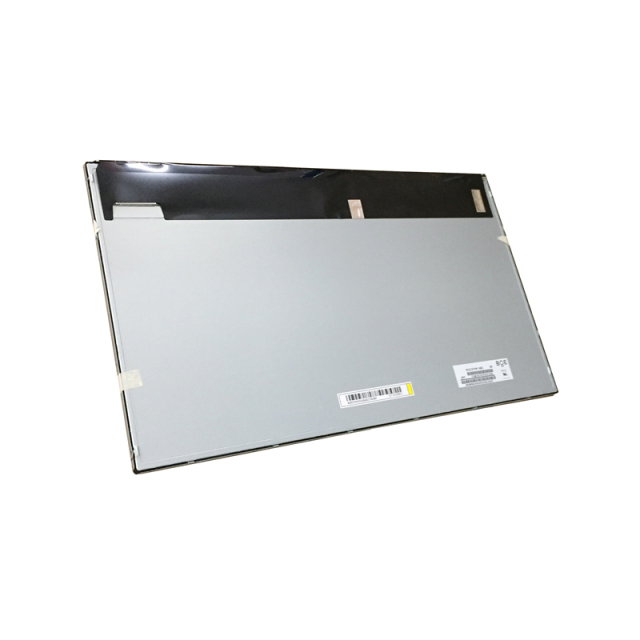

MV215FHM-N60 BOE 21.5 inch lcd display

No.MV215FHM-N60
MV215FHM-N60 is a color active matrix TFT LCD module using amorphous silicon TFT's as an active switching devices. This module has a 21.5 inch diagonally measured active area with FHD resolutions 1920*1080.
  • MV215FHM-N60 BOE 21.5 inch lcd display
  • MV215FHM-N60 BOE 21.5 inch lcd display
  • MV215FHM-N60 BOE 21.5 inch lcd display
  • MV215FHM-N60 BOE 21.5 inch lcd display
  • MV215FHM-N60 BOE 21.5 inch lcd display
Description

New and original MV215FHM-N60 BOE 21.5 inch ADS 1080P widescreen tft lcd module with whole viewing angle

MV215FHM-N60 FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.


Features
LVDS Interface with 2 pixel / clock
High-speed response
0.5t Glass
6-bit (Hi-FRC) color depth, display 16. 7M colors
Incorporated edge type back-light (One Light Bar)
High luminance and contrast ratio, low reflection and wide viewing angle
DE (Data Enable) only
RoHS/Halogen Free
ES 7.0 compliant
Gamma Correction
Reverse type

Application
Desktop Type of PC & Workstation Use
Slim-Size Display for Stand-alone Monitor
Display Terminals for Control System
Monitors for Process Controller

Brand BOE
Diagonal Size 21.5 inch
Model MV215FHM-N60
Type a-Si TFT-LCD , LCM
Configuration RGB Vertical Stripe
Pixel Format 1920(RGB)×1080   [FHD]
Active Area 476.064(H)×267.768(V) mm
Bezel Area -
Outline Dim. 495.6(H)×292.2(V) ×11.2(D) mm
Treatment Antiglare, Hard coating (3H)
Luminance 250 cd/m² (Typ.)
View Direction Symmetry
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Support Color 16.7M   73% (CIE1931)
Weight 1.97Kgs (Typ.)
Frame Rate 75Hz
Contrast Ratio 1000:1 (Typ.) (TM)
Response Time 14 (Typ.)(G to G)
Operating Mode ADS, Normally Black, Transmissive
Light Source WLED  [16S4P] , 30K hours , W/O Driver
Designed For Desktop Monitor  Industrial Application
Touch Panel Without
Interface Type 30 pins   LVDS (2 ch, 8-bit) , Connector
Power Supply 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 65 °C
