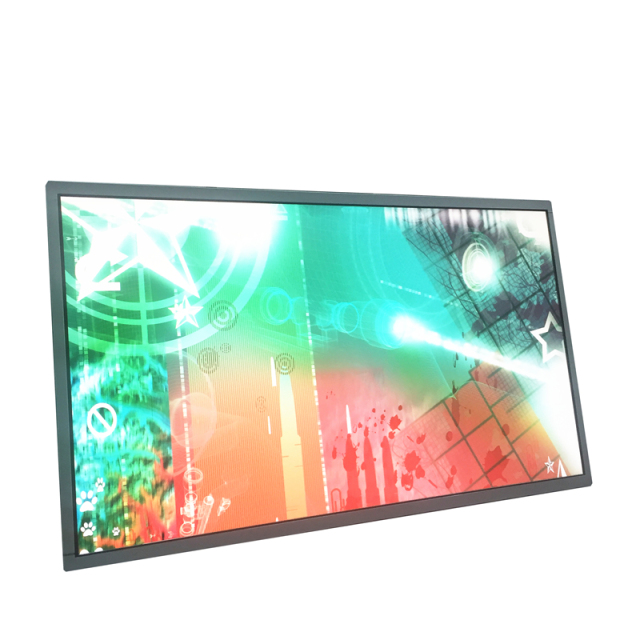

MV215FHB-N31 BOE 21.5 inch lcd display

Item No.: MV215FHB-N31
MV215FHB-N31 is a color active matrix TFT LCD module using amorphous silicon TFT's as an active switching devices. This module has a 21.5 inch diagonally measured active area with FHD resolutions 1920*1080.
Description Review
Description

MV215FHB-N31 BOE 21.5 inch ADS 1080P widescreen tft lcd module with all viewing angle


MV215FHB-N31 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 21.5 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

Features

LVDS Interface with 2 pixel / clock

High-speed response

0.5t Glass

6-bit (Hi-FRC) color depth, display 16. 7M colors

Incorporated edge type back-light (One Light Bar)

High luminance and contrast ratio, low reflection and wide viewing angle

DE (Data Enable) only

RoHS/Halogen Free

ES 7.0 compliant

Gamma Correction

Reverse type



Application

Desktop Type of PC & Workstation Use

Slim-Size Display for Stand-alone Monitor

Display Terminals for Control System

Monitors for Process Controller



General Specification

Panel Brand:     BOE

Panel Size:     21.5 inch

Panel Model:     MV215FHB-N31

Panel Type:     a-Si TFT-LCD , CELL

Pixel Format:     RGB Vertical Stripe

Resolution:     1920(RGB)×1080 , FHD

Display Area:     476.064(W)×267.768(H) mm

Outline Size:     483.646(W)×278.676(H) ×1.32(D) mm

Bezel Opening:     -

Surface:     Antiglare, Hard coating (3H)

Brightness:     0 cd/m²

Viewing Angle:     89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Best View on:     Symmetry

Glass Depth:     0.50+0.50 mm

Display Colors:     16.7M

Frequency:     75Hz

Weight:     0.40 Kgs

Contrast Ratio:     1000:1 (Typ.) (TM)

Display Mode:     ADS, Normally Black, Transmissive [Panelook copyright, copy is strictly prohibited]

Response Time:     14 (Typ.)(G to G)

Transmissivity:     5.6% (Typ.)(with Polarizer)

Lamp Type:     No B/L

Touch Screen:     Without

Application:     Desktop Monitor

Signal Interface:     LVDS (2 ch, 8-bit) , 30 pins , Connector

Input Voltage:     5.0V (Typ.)

Environment:     Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C




Review
Sarah
Feb 22, 2019
good quality, 360° full viewing angle
Finerua
Sep 19, 2018
What does this 21 lcd use for?
Y
Aug 30, 2018
full hd with all viewing angle?
